What Is a Sealed Dual Circuit Miniature Micro Switch?

With the rapid development of automotive technology, modern automobiles have gradually evolved into highly electronic and complex systems. In these systems, switching components play a crucial role in detecting mechanical states and triggering control logic; their reliability directly affects the stability and safety of the entire vehicle system.

However, vehicles experience frequent vibrations, temperature changes, moisture intrusion, and dust contamination during use. To address these issues, the automotive industry employs sealed dual-circuit miniature micro switches, which maintain stable performance in harsh environments while providing higher safety redundancy and system reliability through dual-circuit outputs. This article will detail its working principle, key structural features, and application scenarios to help readers better understand this electronic component.

What Is a Sealed Dual Circuit Miniature Micro Switch?

A sealed dual circuit miniature micro switch is a micro switch specifically designed for harsh environments. It incorporates a sealed protective structure and a dual-circuit contact design, enabling it to provide stable and reliable electrical signal output in harsh conditions. It typically possesses the following core characteristics:

1. Sealed structural design. The sealed dual-circuit miniature micro switch features a high-strength engineering plastic housing with an IP67 protection rating, effectively preventing dust, moisture, and oil from entering. For automotive micro switches installed inside doors, near the chassis, or in external mechanisms, these switches are constantly exposed to complex environments, necessitating special protection.
2. Dual-circuit output design. This switch incorporates two independent contact circuits. When the actuator is triggered, both circuits can operate simultaneously, enabling signal redundancy or different logic control. This design is crucial in automotive safety systems.
3. Miniaturized structure. Limited interior space, especially in the handbrake, necessitates a compact switch size. The miniaturized design of the miniature micro switch allows for easy integration into complex mechanical structures while maintaining high reliability, making it the ideal choice for automakers.
4. High-sensitivity spring mechanism. The sealed dual-circuit miniature micro switch employs a high-precision spring mechanism. When the trigger force reaches a set value, the contacts switch instantaneously, achieving fast and stable signal output. This structure features fast response and high repeatability, preventing potential safety hazards in the device.

Through these characteristics, the sealed dual circuit miniature micro switch provides stable and reliable status monitoring in complex automotive environments, making it the preferred choice for driver peace of mind and comfort.

How a Sealed Dual Circuit Miniature Micro Switch Works

A sealed dual circuit miniature micro switch is a type of instantaneous micro switch. When external mechanical force is applied to the actuator via a button, roller, or lever, the internal spring mechanism deforms rapidly. When the trigger force reaches a set value, the spring instantaneously flips, driving the contacts to quickly switch from one position to another. This instantaneous structure prevents the contacts from remaining in the middle position, thus reducing arcing and improving switch lifespan.

Dual Circuit Function in a Sealed Dual Circuit Miniature Micro Switch

The dual circuit design is one of its most important features. In a sealed dual circuit miniature micro switch, two sets of contact mechanisms are typically controlled by the same trigger mechanism. The dual-circuit time is generally less than 15ms, allowing for two different applications:

First, one switch can control two circuits simultaneously. This means the system can use a single switch to achieve two different signal outputs, such as simultaneously outputting a control signal and a status feedback signal.

Second, the dual-circuit structure can be used for signal redundancy design. In automotive safety systems, many critical components require dual signal confirmation to avoid false triggering. For example, in a car door lock system, one signal can be transmitted to the body control module, while the other signal can serve as a safety confirmation signal to prevent unforeseen circumstances.

In this way, the sealed dual-circuit miniature micro switch can significantly improve the safety and reliability of the system, which is why modern automakers value it.

Why Automotive Systems Use Sealed Dual Circuit Miniature Micro Switch

During long-term use, vehicles experience continuous vibration, large temperature variations, moisture and rain intrusion, and dust pollution, all of which affect electronic components. Compared to a basic micro switch, the sealed dual-circuit miniature micro switch offers higher stability and is more suitable for structures where the car is exposed to the outside world. Its main advantages include:

1. Dual-circuit redundancy design enhances safety: The dual-circuit structure provides dual signal confirmation, reducing the risk of system misjudgment.
2. Sealed structure adapts to harsh environments: IP67 protection effectively prevents moisture and dust from entering the switch.
3. Small size, suitable for complex automotive structures: The miniaturized design allows it to be installed in various confined spaces.
4. Fast response and stable signal: The instantaneous contact structure ensures fast and reliable switching action.
5. Long lifespan and reduced maintenance costs: High-quality contact materials and precision structure give it a long service life.

Common Automotive Applications of Sealed Dual Circuit Miniature Micro Switch

Automotive Door Lock Systems

In automotive door lock systems, this switch primarily detects the locking status of the door. When the door lock mechanism is activated, the micro switch is triggered, sending a status signal to the vehicle control system. The dual-circuit structure of the sealed dual-circuit miniature micro switch provides both control and feedback signals, ensuring accurate identification of whether the door is normally open or illegally pried open.

Electric Tailgate and Hood Latch Systems

In electric tailgate or hood locking systems, the micro switch is typically used to detect whether the tailgate or hood is fully closed. If the locking mechanism is not fully engaged, the system can alert the driver with an alarm signal or prevent the vehicle from starting, avoiding safety hazards.

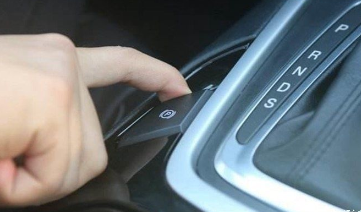

Car Handbrake Mechanisms

In car handbrake systems, the sealed dual circuit miniature micro switch primarily detects the user's operation. When the driver presses or releases the handbrake, the switch quickly receives the mechanical action and outputs a control signal. By accurately detecting the handbrake position, the system ensures the vehicle is in the correct braking state while providing reliable signals to the electronic control system.

How to Choose the Right Sealed Dual Circuit Miniature Micro Switch

In automotive design, selecting the appropriate sealed dual circuit miniature micro switch is crucial. The following are the technical specifications of the G307A series sealed dual circuit miniature micro switch for your reference:

As the table shows, when selecting a sealed dual circuit miniature micro switch, key indicators such as protection rating, operating temperature range, mechanical lifespan, and electronic lifespan should be given priority to ensure the reliability of the entire vehicle system.

Conclusion

With the continuous development of automotive electronic systems, sealed dual-circuit miniature micro switches are gradually becoming a key component in automotive systems. Through their sealed structure, dual-circuit design, and highly reliable contact mechanism, these micro switches can provide stable and reliable signal output in complex environments and significantly improve system safety.

The application scope of sealed dual-circuit miniature micro switches in the automotive electronics field will further expand, and they will continue to play an important role in automotive safety and control systems. This means that micro switch manufacturers should pay more attention to the safety and compactness of these switches to address the further development of the automotive electronics field in the future.
