SPST Micro Switch Explained: Definition and Structure

2026-01-04

Micro switches are widely used in industrial control, automotive electronics, and consumer products, undertaking fundamental functions such as status verification and safety control. Among the many types of micro switches, the SPST micro switch is the most basic in structure and the most widely used, yet its design value is often overlooked by engineers.

This article will systematically explain "why it is designed this way" and "what problem its structure solves" regarding the SPST micro switch, from its definition and electrical logic to its structural essence, helping you truly understand the engineering significance of this fundamental micro switch.

What Is an SPST Micro Switch

SPST micro switch is an abbreviation for Single Pole Single Throw Micro Switch, the most basic electrical form of micro switch. Specifically, it means:

Single Pole: This indicates that the switch controls only one independent circuit. It is not responsible for distributing or selecting signals among multiple channels, but focuses on the state control of a single loop.
Single Throw: This indicates that the circuit has only one switching result: from "off" to "on" or from "on" to "off," with no second output.

From a system perspective, the SPST micro switch is essentially a deterministic state confirmation element. It is not used for "selection," but for "confirmation"—confirming whether a certain mechanical state has occurred.

Basic Electrical Logic of the SPST Micro Switch

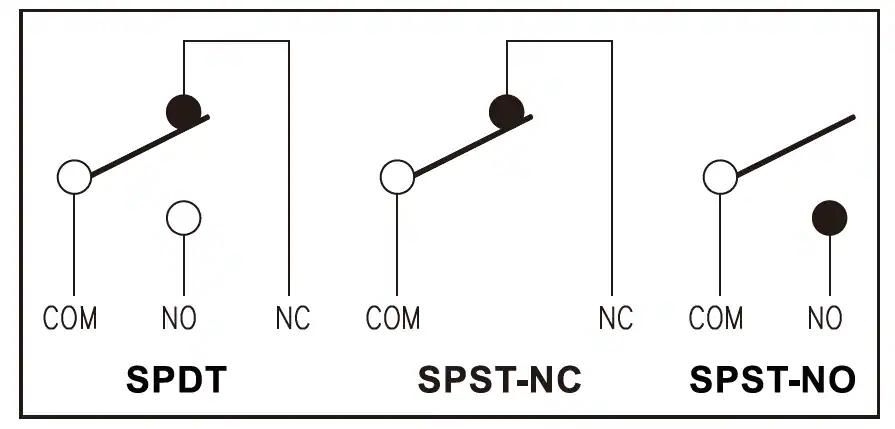

SPST Micro Switch On/Off State Description

The electrical logic of the SPST micro switch appears simple, but in engineering systems, this simplicity is itself an advantage. It outputs only a single binary signal: ON (conducting) and OFF (disconnecting).

This signal is the easiest to reliably identify for ECUs, control boards, or relays, eliminating the need for complex software signal arbitration, and it supports two main configurations.

Operation of the Normally Open (NO) SPST Micro Switch

In the NO (Normally Open) configuration, the micro switch's circuit is open by default; it only conducts when mechanical conditions are met, sending a signal to other locations. This design is crucial for safety logic because if the switch fails or the circuit is broken, the system will default to "condition not met." This effectively prevents accidental activation or malfunction, reducing safety hazards.

Therefore, normally open SPST micro switches are widely used for:

Confirming the locking structure of automotive door locks;
Interlocking structures for home appliance safety, and door switches for various electrical appliances;
Detecting industrial safety doors, and other limit switches, etc.

Operating of normally closed (NC) SPST micro switches

The NC (Normally Closed) structure is used for the opposite logic. This type of micro switch is on by default and will only be triggered and disconnected after mechanical conditions are met. Therefore, this type of micro switch is more suitable for:

Machinery that requires an alarm upon disconnection;
Structures or power systems that require a power outage upon fault.

Thus, in some systems with high safety requirements, NC SPST micro switches are more suitable for fault diagnosis than other structures.

Differences from SPDT switches or multi-loop micro switches

Compared to SPDT micro switches or multi-loop micro switches, SPST micro switches have no "intermediate state," therefore no loop switching delay, no signal ambiguity, and only two clearly defined states. This makes the SPST micro switch more engineering-advantageous and "simple and clear" in the "just right/not wrong" control logic.

Structural Analysis of the SPST Micro Switch

External Structure of the SPST Micro Switch

Housing

The housing is not only a protective component but also the structural benchmark. It determines the relative positional accuracy of the internal mechanisms of the micro switch, its overall vibration resistance, and whether it can achieve dust-proof, moisture-proof, or waterproof design, etc. Especially in automotive and industrial environments, housing stability is often more important than size and is an indispensable factor.

Actuating Components (Button / Lever / Roller)

The function of the actuating components is not simply "pressing down," but rather to convert uncertain external mechanical actions into controllable and repeatable internal triggering actions. For example:

Button-type actuators can trigger the fastest;
Lever-type actuators can compensate for micro switch installation errors;
Roller-type actuators can reduce the impact of sliding friction on the micro switch's lifespan.

Internal Core Structure of the SPST Micro Switch

Moving Contact and Stationary Contact

The SPST micro switch's contact system is extremely simple, with only one moving contact and one stationary contact. Fewer contacts mean easier control and measurement of contact resistance; clearer wear paths; and easier prediction of aging behavior, facilitating replacement.

The Role of the Spring

The spring is not simply a "flexible component," but rather the energy storage element, contact pressure regulator, and core of the snap-action mechanism in a micro switch. The spring's parameters directly determine the switch's trigger force, hysteresis, and lifespan, thus requiring superior materials to ensure stable performance.

COM and Circuit Terminal Connection

In SPST micro switches, there are generally two terminal connection methods:

Common terminal COM to normally open terminal NO;
Or common terminal COM to normally closed terminal NC.

This simple connection method eliminates unnecessary solder joints and internal jumpers within the micro switch, which is crucial for its long-term reliability.

SPST Micro Switch's Snap-Action Mechanism

What is Snap-Action?

Snap-action is the soul of the SPST micro switch. Snap-action refers to the micro switch slowly storing energy before reaching the trigger point; once the critical point is reached, the contact spring instantly switches, completing the contact change.

Why Must It Be "Instantaneous Switching"?

Without snap-action, SPST micro switches are likely to:

The contacts repeatedly bounce in the critical region, causing signal instability;
Increase internal arcing in the switch, affecting overall lifespan;
The ECU system may read incorrect signals, causing serious malfunctions.

Engineering Value for System Judgment

The snap-action mechanism makes the SPST micro switch the most "worry-free" input source for software, providing only the simplest and clearest signals; and the "cleanest" state signals for hardware, unique and definite, avoiding ambiguous signals.

Engineering Advantages of SPST Micro Switch's Structural Design

In high-reliability systems, a simple structure often means controllability. The structure of the SPST micro switch precisely verifies this.

Due to its simple contact structure, the SPST micro switch offers the following advantages:

lower contact resistance drift and a more stable lifespan curve;
easier compliance testing and mass production;
stable performance even after hundreds or thousands of operations per day;
a lifespan of hundreds of thousands/millions of cycles;
and an operating speed of 0.1mm-1m/s, among others.

These characteristics make the SPST micro switch more likely to achieve stable and long-lasting operation before the end of its lifespan in applications such as door locks, limit switches, and detection systems.

Some Applications of SPST Micro Switch

After truly understanding its structure, and by defining its functional role, the SPST micro switch, within the micro switch family, is typically used for:

Detecting whether a door lock is in position (no intermediate states);
Detecting whether a mechanical structure has returned to its position (i.e., a limit switch);
Detecting whether safety conditions are met, triggering alarms if not met, etc.

These scenarios share common characteristics: they do not allow for fuzzy judgments, only accept definite results, and have only two states.

Conclusion

The SPST micro switch, with its extremely simple structure, performs the most critical switching function. It lacks complex loop switching, yet possesses irreplaceable advantages in reliability, signal clarity, and engineering stability.

Truly understanding the definition and structure of SPST micro switches designed by micro switch manufacturers is not just about recognizing a switch, but also the first step towards correct selection, reliable application, and system safety.
