Model No: G5S05-E1P200A02U

Unionwell Wash Machine Micro Switch 25T85 1 Pin 200gf

Model Number:G5S05-E1P200A02U
Max. Current:0.1A-5A
Max. Voltage:125/250VAC 48VDC
Operating Temperature:-25℃~+85℃
Temianl Type:Quick connect terminals
Lever Type:No Lever, Pin Plunger
Circuit Code:SPST-NC
Max Operating Force:200gf
E-life:Over 50,000 cycles or 100,000 cycles ( depends on part No.)
M-life:Over 10,000,000cycles or 1,000,000cycles
Application:Home Appliance,Automatic Equipments,Auto Electronics,etc.
Certification:ENEC
minimum order :
1 piece
Quantity :
Contact Now

Product Description

The Wash Machine Basic Micro Switch is a high-performance control element designed specifically for dishwasher applications. As one of its core components, it provides real-time feedback and monitoring of dishwasher operating conditions through precise triggering, such as detecting door closure, water flow switching, and program start and stop. This basic micro switch's stable operation not only enhances overall dishwasher safety but also ensures reliable performance during long-term, high-frequency operation. It offers excellent performance parameters, including a maximum voltage of 125/250VAC, 48VDC, and stable operation in an operating temperature range of -25°C to +85°C.

In terms of quality and reliability, this product has passed stringent international certifications and is a global safety-approved micro switch. This means it offers exceptional electrical and mechanical lifespans of 50,000 cycles (depending on part number) and 10,000,000 cycles. This high-reliability design provides users with peace of mind during daily use, making it particularly suitable for the long-term operation of commercial and residential dishwashers.

Designed by a micro switch manufacturer focused on high-quality washing machine micro switches, this switch features a precise trigger setting with an operating force of 200gf max, ensuring stable execution of action commands in a variety of complex operating environments. Furthermore, thanks to its compact design and sensitive response, it can be effectively integrated with the dishwasher's internal electronic control system to optimize equipment efficiency. With its durable performance and high-standard manufacturing, this micro switch provides indispensable support for the safe and stable operation of dishwashers.

Feature

◆Compact structure with a small contact gap,Fast action, high sensitivity, and small stroke.
◆Long life and high reliability.
◆Global safety certifications available.
◆Complete terminal block selection.
◆Wide operating force range from 7gf to 600gf.
◆Multiple temperature ratings available: 25T85, 25T125, 25T150, and PTI ratings of 175V, 250V, and 600V.
◆Equipped with various operating handles.
◆Widely used in various household appliances, electronic equipment, automation equipment, communications equipment, automotive electronics, instrumentation, power tools, and other fields.

Parameter


Operating speed0.1mm-1m/s（Realted With Actuator Forms）
Operating Frequency
Mechanical 60 cycles/min;
Electrical 15 cycles/min
Insulation Resistance≥100MΩ Min(500VDC)
Contact Resistance≤100mΩ Max(Initial value)
Test VoltageBetween Each Terminals Of The Same PolarityAC1000V,50/60HZ, 1min.
Between Current-Carrying Metal Part And Ground.And Between Each Terminal And Non-current-Carrying Metal PartsAC1500V, 50/60HZ, 1min.
Vibration Resistance10-55HZ,1.5mm Double Amplitude
Shock ResistanceDestruction:
OF>1N:1000m/s2 (approx.100G)max.
OF≤1N:400m/s2 (approx.40G)max.
Malfunction:
OF>1N:200m/s2 (approx.20G)max.
OF≤1N:100m/s2 (approx.10G)max.
Service LifeMechanical: Over 10,000,000 cycles or 1,000,000 cycles
Electrical: Over 50,000 cycles or 100,000 cycles
WeightApprox 6.2g(No Lever)

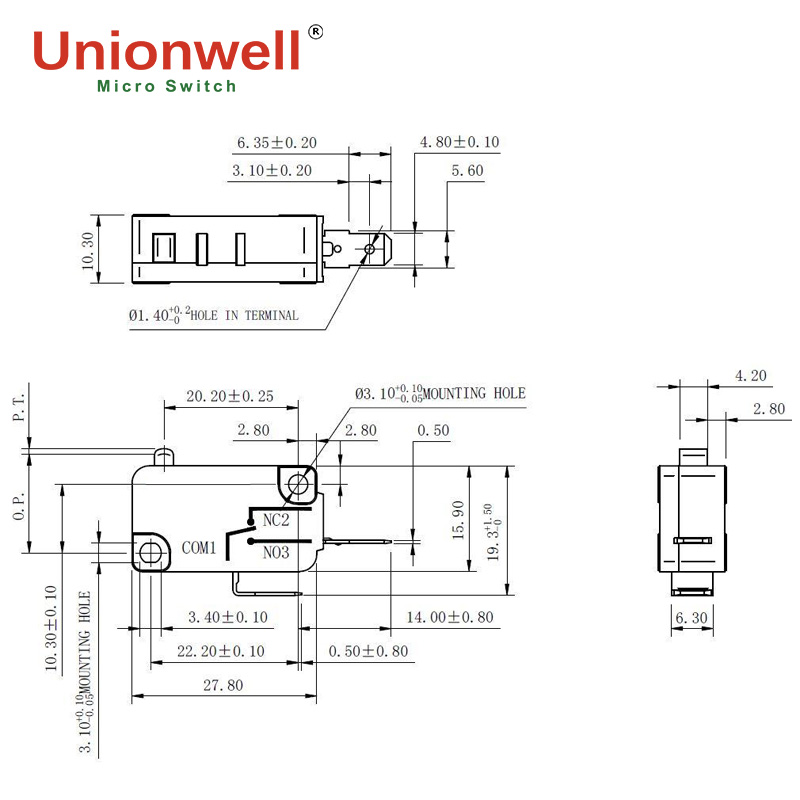

Drawing

g5s05 micro switch drawing

Application

The Wash Machine Basic Micro Switch is a control element designed specifically for dishwashers, enabling precise and sensitive on/off control in complex operating environments. As a critical component, it detects the door's open/close status and key points during program execution, ensuring safe operation according to pre-set logic. Its high sensitivity ensures stable operation under high-speed, high-frequency operating conditions, preventing malfunctions.

This basic micro switch supports a maximum voltage of 125/250VAC and 48VDC, meeting the electrical requirements of common household appliances. Its lifespan is rated at 50,000 cycles (depending on the part number) for electrical life and 10,000,000 cycles for mechanical life, ensuring reliability under long-term, high-frequency use. Its precise triggering design with an operating force of 200gf ensures excellent durability and stability in various dishwasher feedback applications.

This switch also operates stably in an operating temperature range of -25°C to +85°C, adapting to the temperature fluctuations common during dishwasher operation. With its reliable structure and long-lasting performance, this micro switch provides a solid guarantee for the efficient, safe and intelligent operation of the dishwasher.
