Unionwell Single Pole Double Throw Screw Hole Terminal Automotive Micro Switch 5A 250VAC 40t150

Model Number:G5T16-T2Z200U
Max. Current:22A
Max. Voltage:125/250VAC,48VDC
Operating Temperature:-25℃~125℃
Protection Level:IP64
Factory:Manufactory
Electrical life:50,000cycles
Mechanical life:500,000cycles
Rating:10A 125/250VAC
Operating force:200gf max w.o lever
Terminal:0.187'' quick terminals
Function:SPDT
Lever type:Stimulated roller lever or others for option
Vibration resistance:10-55HZ,1.5mm
Unit Net Weight:Approx.6.2g(No lever)

minimum order :

1 piece

Quantity :

Contact Now

Product Description

The Single Pole Double Throw Screw Hole Terminal Automotive Micro Switch is a high-performance micro switch designed specifically for the automotive industry, featuring a compact design, sensitive operation, and easy installation. Its key advantage lies in its screw-hole terminal design, which allows for seamless integration with the vehicle's electrical system, ensuring reliable and long-term connection stability.
This switch meets IP64 protection, effectively protecting against dust intrusion and water splashes from all directions. This waterproof micro switch is particularly suitable for automotive applications, which are exposed to dust, moisture, and temperature fluctuations in long-term outdoor environments.
With an operating temperature range of -25°C to +125°C, it can operate normally in extreme environments, from freezing winters to scorching summers, ensuring stability and safety in all weather conditions. With a lifespan of over 50,000 electrical cycles and 500,000 mechanical cycles, this micro switch effectively extends the life cycle of automotive components, reducing maintenance frequency and replacement costs.
Overall, this Single Pole Double Throw Screw Hole Terminal Automotive Micro Switch not only meets the automotive system's needs for precise control, but also takes into account durability and environmental adaptability. It is an ideal choice for key areas such as door control, window lifting, power seat adjustment, and engine auxiliary systems.

Quality and longevity are crucial when selecting a micro switch supplier. Our micro switch company's waterproof basic switches meet stringent industry standards and are built to last.

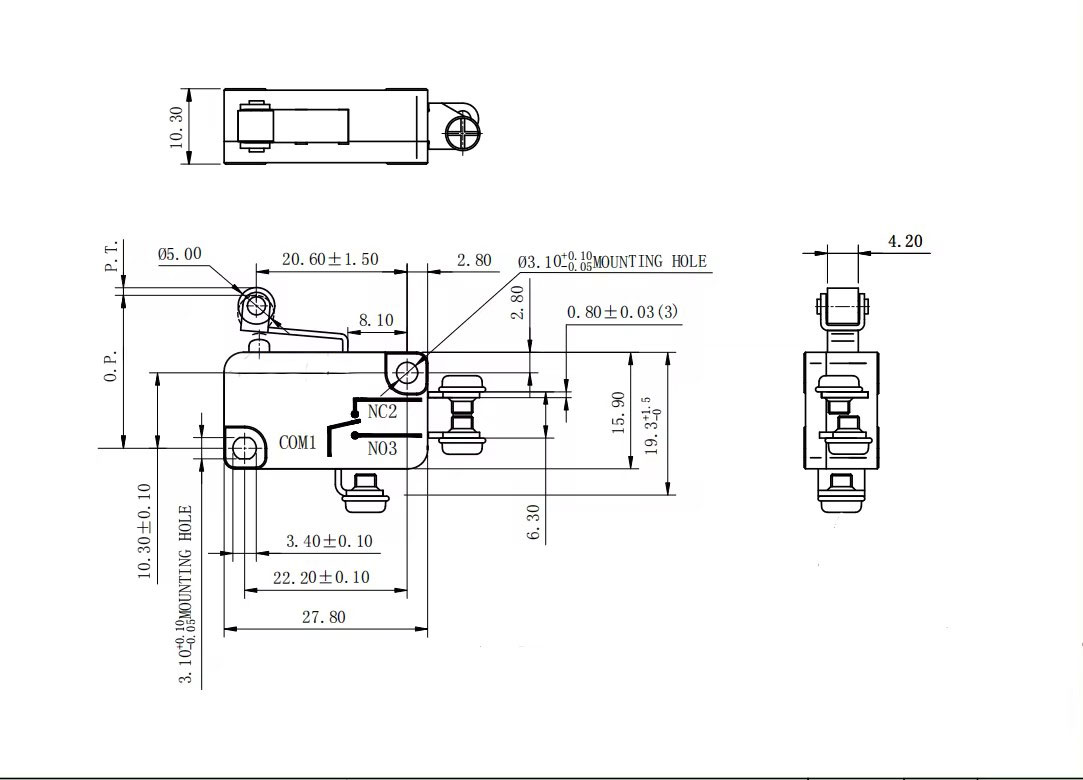

Drawing

Features
-Tigh configuration, small contact gap, snap action,high sensitivity and small operating travel

-Compact structure with a small contact gap.
-Long life and high reliability.
-Global safety certifications available.
-Complete range of terminal blocks.
-Wide operating force range from 7gf to 600gf.
-Available with various operating handles.

Parameter

Operating speed		0.1mm-1m/s
Operating Frequency	Electrical	15cycles/min
	Mechanical	60cycles/min
Contact Resistance(Initial value		≤100m Ω
Insulation Resistance		≥100mΩ (500VDC)
Vibration Durability		10~55Hz
Storage Temperature		-25°C~+125°C
Storage Humidity		85%RH Max
Service Life	Electrical	Min.50,000cycles
	Mechanical	Min.5,000,000cycles

Application

In automobiles, it is primarily used in key areas such as door lock control, window lift systems, accelerator pedal position detection, and brake light triggering.

Its IP64 protection rating ensures normal operation in environments with dust and splash water, adapting to the demands of vehicles in various climates and road conditions.

Furthermore, its wide operating temperature range (-25°C to +125°C) enables it to withstand the complex environments of the engine compartment and interior, ensuring the safe and stable operation of automotive electronic systems.
