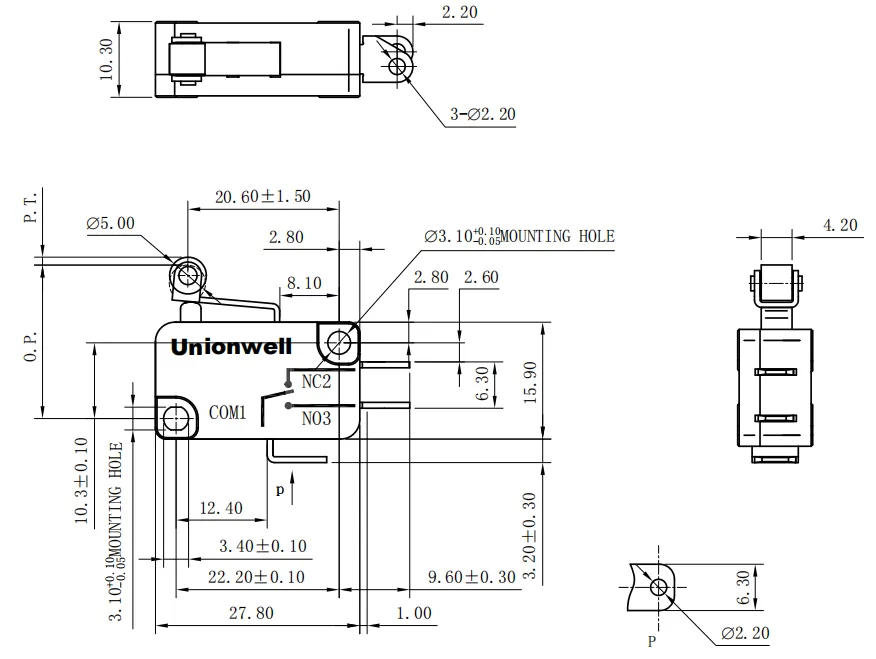

Unionwell Micro Switch with Roller Lever for Electrical Tools and Machines 25T150
Max. Current:16A
Max. Voltage:125/250VAC,48VDC
Operating Temperature:-25 ~150℃
Protection Level:IP00
Factory:Manufactory
Electrical life:50,000cycles
Mechanical life:1000,000cycles
Rating:16A 125/250VAC
Operating force:400gf max w.o lever
Terminal:Solder connect
Function:SPDT
Lever type:Roller lever
Vibration resistance:10-55HZ,1.5mm
Unit Net Weight:Approx.6.2g(No lever)
- Whether the smart:NO
- Place of Origin:Guangdong, China
- Brand Name:Unionwell
- Model Number:G5H16-S2Z400A05-T116
- The GT02 miniature switch (model: G5H16-S2Z400A05-T116) is a high-performance miniature switch with a number of excellent features for a wide range of applications. Its maximum current can reach 16A, and the maximum voltage supports 125/250VAC and 48VDC, ensuring stable and reliable electrical performance.
- The wide operating temperature range, from -25 degrees Celsius to 150 degrees Celsius, makes it suitable for a wide range of harsh environmental conditions. The IP00 level of protection can effectively prevent dust and foreign objects from entering, and improve the service life of the product.
- The product adopts the SPDT function design, is equipped with a ball lever, and the operating force does not exceed 400gf, which can realize sensitive switching action. At the same time, it has an excellent mechanical and electrical life of 1000,000 cycles and 50,000 cycles respectively, ensuring long-term stable use. The miniature switch is lightweight at about 6.2 grams (without lever) and is easy to install and carry.
- Overall, Unionwell's GT02 miniature switches are ideal for your application needs due to their superior performance and reliability
-Designed for water and dust tight(IP67)
-Small compact size
-Global safety approvals
-Long life and high reliability
-Variety of levers
-Wide range of wiring terminals
-Widely used in Automotive Electronics, Appliance and Industrial Control etc.
-Customized designs
| Operating Speed | 0.1mm-1m/s( Related With Actuator Forms) | |
| Operating Frequency | Mechanical 60 cycles/min; Electrical 15 cycles/min. | |
| Insulation Resistance | 100MΩ Min(500VDC) | |
| Contact Resistance | 100mΩ Max(Initial value) | |
| Test Voltage | Between Each Terminals Of The Same Polarity | AC1000V,50/60HZ, 1min. |
| Between Current-Carrying Metal Part And Ground.And Between Each Terminal And Non-current-Carrying Metal Parts | AC1500V, 50/60HZ, 1min. | |
| Vibration Resistance | 10-55HZ,1.5mm Double Amplitude | |
| Shock Resistance | Destruction: OF>1N:1000m/s2 (approx.100G)max. OF≤1N:400m/s2 (approx.40G)max. | |
| Malfunction: OF>1N:200m/s2 (approx.20G)max. OF≤1N:100m/s2 (approx.10G)max. | ||
| Service Life | Mechanical: Over 10,000,000 cycles or 1,000,000 cycles | |
| Electrical: Over 50,000 cycles or 100,000 cycles | ||
| Weight | Approx 6.2g(No Lever) | |
