Model No: G5T26-C1P300U

G5 Series Global Safety Approvals Basic Micro Switch 26A 25t125 25A T150 5E4

Model Number:G5T26-C1P300U
Max. Current:26A
Max. Voltage:125/250VAC,48VDC
Operating Temperature:25T125
Protection Level:IP40
Product Name:G5T26-C1P300U
Electrical life:25,000cycles
Mechanical life:1000,000cycles
Rating:26A 125/250VAC
Operating force:200gf max w.o lever
Terminal:Quick connect terminals
Function:SPST-NO
Lever type:W/O lever
Vibration resistance:10-55HZ,1.5mm
Unit Net Weight:Approx.6.2g(No lever)
minimum order :
1 piece
Quantity :
Contact Now
Product Description

The G5 Series Global Safety Approvals Basic Micro Switch is a high-performance, internationally certified micro switch designed for applications requiring high current and reliability.
Rated at 26A at 125/250VAC and supporting 48VDC, it meets the high-power load control needs of appliances, industrial equipment, and other applications. Its operating temperature range extends to 25°C/125°C, making it suitable for harsh environments. Its IP40 protection rating ensures basic dustproof performance. With a lifespan of 25,000 electrical cycles and 1,000,000 mechanical cycles, this series of switches ensures long-term, stable operation.
Its high reliability, strong load capacity, and exceptional durability make the G5 Series Sealed micro switches an ideal choice for manufacturers designing high-quality electrical products.
Unionwell has a Strong R&D team and automatic machines are designed and assembled by our own team, also most products are produced & tested by automatics. Most improtant thing is our micro switches are rated ISO9001 & IATF16949 qualified.


Feature
-Compact structure with a small contact gap，Features fast action, high sensitivity, and a small actuation stroke.
-Long life and high reliability.
-Global safety certifications available.
-Complete terminal block selection.
-Wide operating force range from 7gf to 600gf.
-Multiple temperature ratings available: 25T85, 25T125, and 25T150.
-PTI ratings available: 175V, 250V, and 600V.
-Equipped with various operating handles.
-Widely used in various household appliances, electronic equipment, automation equipment, communications equipment, automotive electronics, instrumentation, power tools, and other fields.

Parameter
Operating speed0.1mm-1m/s（Realted With Actuator Forms）
Operating Frequency
Mechanical 60 cycles/min;
Electrical 15 cycles/min
Insulation Resistance≥100MΩ Min(500VDC)
Contact Resistance≤100mΩ Max(Initial value)
Test VoltageBetween Each Terminals Of The Same PolarityAC1000V,50/60HZ, 1min.
Between Current-Carrying Metal Part And Ground.And Between Each Terminal And Non-current-Carrying Metal PartsAC1500V, 50/60HZ, 1min.
Vibration Resistance10-55HZ,1.5mm Double Amplitude
Shock ResistanceDestruction:
OF>1N:1000m/s2 (approx.100G)max.
OF≤1N:400m/s2 (approx.40G)max.
Malfunction:
OF>1N:200m/s2 (approx.20G)max.
OF≤1N:100m/s2 (approx.10G)max.
Service LifeMechanical: Over 10,000,000 cycles or 1,000,000 cycles
Electrical: Over 50,000 cycles or 100,000 cycles
WeightApprox 6.2g(No Lever)

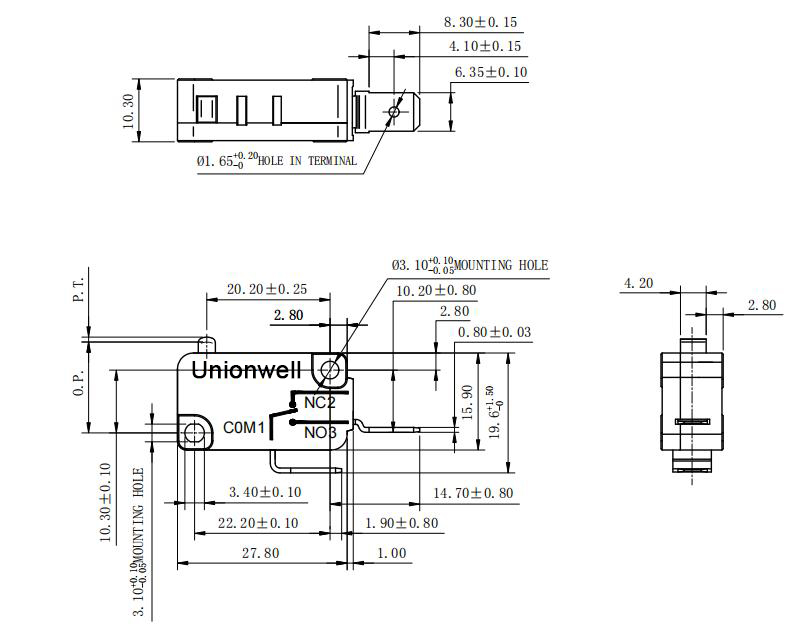

Drawing

Application

In the home appliance industry, it's commonly used for door detection and power control in microwave ovens, refrigerators, washing machines, and other devices to ensure safe operation.
In the automotive sector, it can be applied to position feedback systems such as door locks, seat adjustment, and pedal detection to improve driving safety.
In industrial equipment, it's used for mechanical limit control and motor protection to ensure stable operation. Due to its robust durability and international certifications, this type of micro switch has become the preferred choice of many manufacturers.
