Model No: G5T16-C2P300-H1-T084
Unionwell SPDT Micro Switch For Home Appliance 16A
Model Number:G5T16-C2P300-H1-T084
Max. Current:16A
Max. Voltage:125/250VAC
Operating Temperature:-25℃~+125℃
Electrical life:Min. 50,000 cycles
Mechanical life:Min. 10,000,000cycles
Operating force:300gf max
Insulation resistance:100MΩ Min
Contact resistance:100mΩ Max
Vibration resistance:10-55Hz, 1.5mm Double amplitude
Certification:ROHS,CQC
Application:Home Appliance
Rating:16A 125/250VAC
Max. Current:16A
Max. Voltage:125/250VAC
Operating Temperature:-25℃~+125℃
Electrical life:Min. 50,000 cycles
Mechanical life:Min. 10,000,000cycles
Operating force:300gf max
Insulation resistance:100MΩ Min
Contact resistance:100mΩ Max
Vibration resistance:10-55Hz, 1.5mm Double amplitude
Certification:ROHS,CQC
Application:Home Appliance
Rating:16A 125/250VAC
minimum order :
1 piece
Quantity :
Product Description
The SPDT Micro Switch for Home Appliances 16A is a basic micro switch widely used in home appliance control systems. Its fast action, high sensitivity, and minimal travel enable extremely fast circuit switching, enabling precise control and signal feedback. Whether used in rice cooker heating control, electric kettle safety cut-off devices, or washing machine door lock detection, this switch ensures safe and reliable operation. Its high contact sensitivity and stability make it an indispensable component in modern home appliances.
As a single-pole, double-throw (SPDT) micro switch, it features multi-channel control capabilities, enabling flexible switching between different circuit states. With an operating temperature range of -25°C to +150°C, it's suitable for long-term use in high-temperature environments. With an electrical life of 50,000 cycles and a mechanical life of up to 10,000,000 cycles, this home appliance micro switch can withstand frequent mechanical operations and electrical load switching. Furthermore, its compact structure and excellent electrical conductivity ensure stable performance even under current fluctuations or frequent operation, significantly enhancing the reliability and lifespan of home appliance systems.
This home appliance micro switch also features excellent vibration resistance (10–55Hz, 1.5mm double amplitude), effectively preventing contact nuisance caused by vibration during operation. Its high response speed and mechanical strength make it suitable for the complex operating environments of various home appliances, particularly those requiring high-precision control and stable feedback. Overall, this micro switch, designed by a micro switch manufacturer, offers superior performance and high durability, providing a safer, more precise, and more efficient electrical control solution for home appliances.
Feature
◆Compact structure with a small contact gap,Fast action, high sensitivity, and small stroke.
◆Long life and high reliability.
◆Global safety certifications available.
◆Complete terminal block selection.
◆Wide operating force range from 7gf to 600gf.
◆Multiple temperature ratings available: 25T85, 25T125, 25T150, and PTI ratings of 175V, 250V, and 600V.
◆Equipped with various operating handles.
◆Widely used in various household appliances, electronic equipment, automation equipment, communications equipment, automotive electronics, instrumentation, power tools, and other fields.
◆Long life and high reliability.
◆Global safety certifications available.
◆Complete terminal block selection.
◆Wide operating force range from 7gf to 600gf.
◆Multiple temperature ratings available: 25T85, 25T125, 25T150, and PTI ratings of 175V, 250V, and 600V.
◆Equipped with various operating handles.
◆Widely used in various household appliances, electronic equipment, automation equipment, communications equipment, automotive electronics, instrumentation, power tools, and other fields.
Parameter
| Operating Speed | 0.1mm - 1m/s(Related to the drive mode) | |
| Operating Frequency | Mechanical | 60 cycles/min |
| Electrical | 15 cycles/min | |
| Insulation Resistance | ≥ 100MΩ (at 500VDC) | |
| Contact Resistance | ≤ 100mΩ (Initial value) | |
| Withstand Voltage | Between non-connected terminals of the same pole | AC 1000V, 50/60Hz, 1min. |
Between live metal parts and the casing; Between terminals and accessible dead metal components | AC 1500V,50/60Hz, 1min. | |
| Vibration Resistance | 10-55Hz, 1.5mm Double amplitude | |
| Impact Resistance | Destruction Impact | Operating Force>1.0N: 1000m/s² (about 100g) max Operating Force≤1.0N: 400m/s² (about 40g) max |
| Fault Shock | Operating Force> 1.0N: 200m/s² (about 20g) max Operating Force≤ 1.0N: 100m/s² (about 10g) max | |
| Lifespan | Electrical | ≥ 50,000 cycles or 100,000 cycles |
| Mechanical | ≥ 10,000,000 cycles or 1,000,000 cycles | |
| Weight | about 6.2g (Without lever) | |

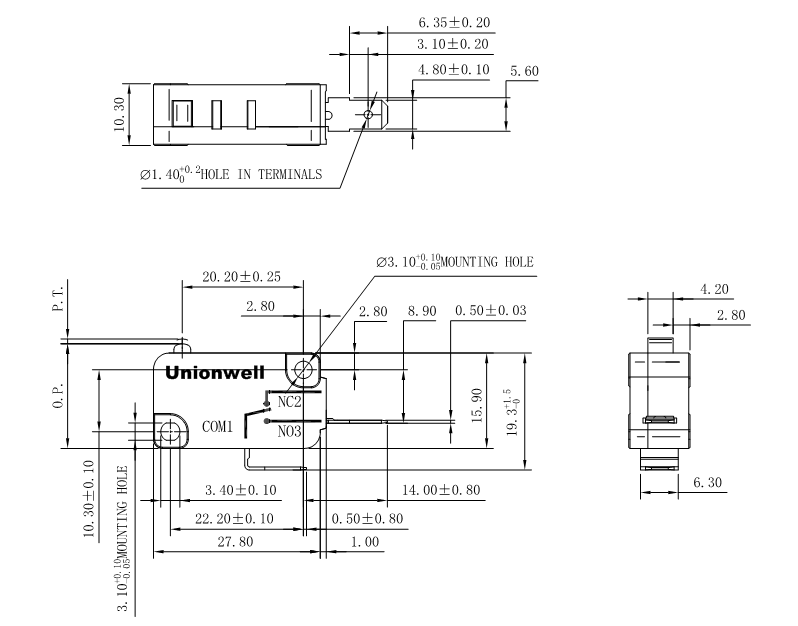

Drawing
Application
The SPDT Micro Switch for Home Appliances 16A is a high-performance basic micro switch designed for control and detection systems in various home appliances. It precisely switches circuits within a very short stroke, offering fast action, high sensitivity, and stable contact response. In appliances such as rice cookers, microwave ovens, and coffee makers, this switch is often used to detect door openings, control power, or implement safety interlocks to ensure proper operation.
This switch offers exceptional performance with an operating temperature range of -25°C to +125°C, suitable for long-term operation in high-temperature or challenging environments. Its electrical life of 50,000 cycles and mechanical life of up to 10,000,000 cycles ensure excellent durability and stability even in frequent operation. Furthermore, the product boasts **Vibration Resistance: 10–55Hz, 1.5mm Double Amplitude**, effectively preventing contact malfunction or poor contact during appliance operation, thereby enhancing overall reliability.
With its high sensitivity, long life, and anti-interference capabilities, this SPDT microswitch has become an indispensable core component in home appliance control systems, providing a solid guarantee for safe and precise operation.
