microwave micro switch
microwave micro switch
Model No: G5T16-C1Z200-616-U

Unionwell SPDT Basic Micro Switch For Microwave 25T125 5A 10A 26A 48VDC

Model Number:G5 Series
Max. Current:26A
Max. Voltage:125/250VAC
Operating Temperature:-25℃~125℃
Protection Level:IP40
Electrical life:Over 50,000 cycles
Mechanical life:Over 10,000,000 cycles
Circuit code:SPDT
Insulation resistance:≥100mΩ (500VDC)
Contact resistance:≤100m Ω
Vibration Durability:10~55Hz
Certification:ROHS
Application:Home Appliance
Rating:5A-26A 125/250VAC
Product Name:Micro Swich
minimum order :
1 piece
Quantity :
Contact Now
Product Description

  • The G5 Series basic micro switch is the perfect choice for microwave door locks!
  • With a voltage rating of 125/250VAC and an IP40 rating, this waterproof basic switch is stable even in extreme temperatures from -25°C to +125°C.
  • IP40 waterproof and dustproof performance, effectively protect the microwave micro switch to operate stably in a humid and dusty environment.
  • With a SPDT circuit code and snap-action mechanism, This basic microwave micro switch delivers high sensitivity and small operating travel, perfect for precise control in compact spaces.
  • The G5 Series basic micro switch is ideal for home appliances or industrial equipment!

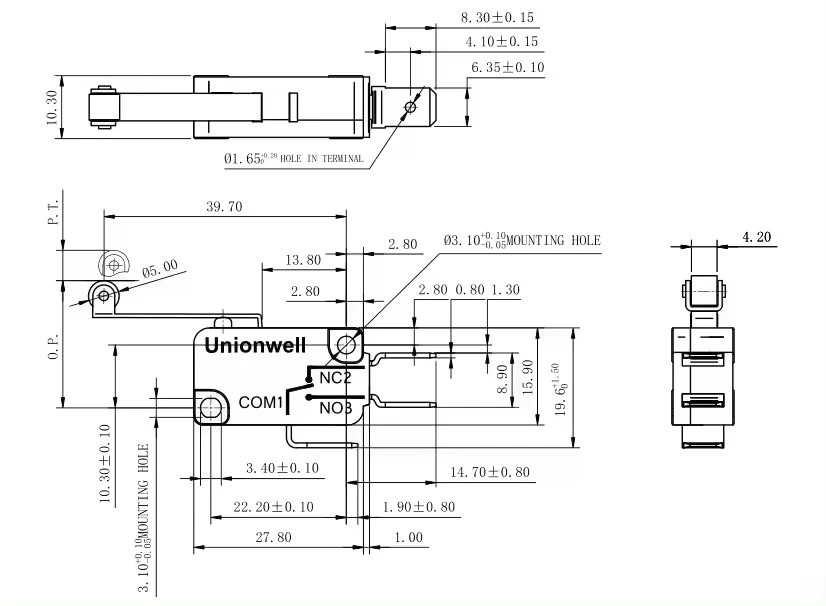

Drawing
Unionwell microwave micro switch
Features
  • Tigh configuration, small contact gap, snap action,high sensitivity and small operating travel
  • Global safety approvals
  • Long life,high reliablity
  • Wide operating force
  • With optional PTI grade
  • Variety of levers
Parameter

Operating speed
0.1mm-1m/s
Operating Frequency
Electrical
15cycles/min
Mechanical
60cycles/min
Contact Resistance(Initial value
≤100m Ω
Insulation Resistance
≥100mΩ (500VDC)
Vibration Durability
10~55Hz
Storage Temperature
-40°C~+150°C
Storage Humidity
85%RH Max
Service Life
Electrical
Min.50,000cycles
Mechanical
Min.10,000,000cycles

Application
This basic micro switch is the cornerstone of microwave oven safety mechanisms, widely used in door interlock systems and control panels. Its IP40 rating protects against kitchen dust and minor splashes, critical for maintaining hygiene and operational safety. The snap-action design ensures instant response when opening/closing the oven door, preventing accidental activation and enhancing user protection.
