Model No: G5F10-D2Z200
Unionwell IP64 Hermetically Sealed Micro Switch 25T85 10A 125/250VAC 1A 30VDC
Model Number:G5F10-D2Z200
Max. Current:10A
Max. Voltage:250VAC,30VDC
Operating Temperature:-25℃~85℃
Protection Level:IP64
Electrical life:50,000cycles
Mechanical life:1,000,000cycles
Rating:10(4)A 250VAC
Operating force:200gf max w.o lever
Terminal:0.187'' quick terminals
Function:SPDT
Lever type:Pin plunger, no lever( or other options)
Vibration resistance:10-55HZ,1.5mm
Unit Net Weight:Approx.6.2g(No lever)
Max. Current:10A
Max. Voltage:250VAC,30VDC
Operating Temperature:-25℃~85℃
Protection Level:IP64
Electrical life:50,000cycles
Mechanical life:1,000,000cycles
Rating:10(4)A 250VAC
Operating force:200gf max w.o lever
Terminal:0.187'' quick terminals
Function:SPDT
Lever type:Pin plunger, no lever( or other options)
Vibration resistance:10-55HZ,1.5mm
Unit Net Weight:Approx.6.2g(No lever)
minimum order :
1 piece
Quantity :
Product Description
This IP64-rated micro switch offers excellent dust and water resistance, effectively resisting the erosion of dust and moisture, ensuring stable operation in harsh environments such as industrial, automotive, and automation equipment. With an operating temperature range of -25°C to +85°C, it maintains consistent operating performance and contact reliability even in low and high temperatures, making it suitable for long-term, high-frequency use.
As a sealed micro switch, it boasts an electrical life of 50,000 cycles and a mechanical life of 1,000,000 cycles. Furthermore, through precision manufacturing and a rugged housing design, it achieves durable, accurate electrical response in dynamic mechanical systems. With its stable triggering performance and excellent sealing properties, this product, designed by micro switch manufacturers, is becoming an ideal choice for efficient control and safety detection in electronic and automotive electronic systems.
The Hermetically Sealed Micro Switch 25T85 10A 125/250VAC 1A 30VDC is a high-performance basic micro switch widely used in electronic equipment, automotive electronics, and automation control systems. Its fast action, high sensitivity, and minimal travel provide precise and reliable electrical response for signal detection, position control, and safety feedback. It enables sensitive triggering and disconnection in complex circuit environments, ensuring stable operation under varying conditions, making it an essential component in high-precision electrical systems.
This IP64-rated micro switch offers excellent dust and water resistance, effectively resisting the erosion of dust and moisture, ensuring stable operation in harsh environments such as industrial, automotive, and automation equipment. With an operating temperature range of -25°C to +85°C, it maintains consistent operating performance and contact reliability even in low and high temperatures, making it suitable for long-term, high-frequency use.
As a sealed micro switch, it boasts an electrical life of 50,000 cycles and a mechanical life of 1,000,000 cycles. Furthermore, through precision manufacturing and a rugged housing design, it achieves durable, accurate electrical response in dynamic mechanical systems. With its stable triggering performance and excellent sealing properties, this product, designed by micro switch manufacturers, is becoming an ideal choice for efficient control and safety detection in electronic and automotive electronic systems.
Feature
◆Compact structure with a small contact gap,Fast action, high sensitivity, and small stroke.
◆Long life and high reliability.
◆Global safety certifications available.
◆Complete terminal block selection.
◆Wide operating force range from 7gf to 600gf.
◆Multiple temperature ratings available: 25T85, 25T125, 25T150, and PTI ratings of 175V, 250V, and 600V.
◆Equipped with various operating handles.
◆Widely used in various household appliances, electronic equipment, automation equipment, communications equipment, automotive electronics, instrumentation, power tools, and other fields.
◆Long life and high reliability.
◆Global safety certifications available.
◆Complete terminal block selection.
◆Wide operating force range from 7gf to 600gf.
◆Multiple temperature ratings available: 25T85, 25T125, 25T150, and PTI ratings of 175V, 250V, and 600V.
◆Equipped with various operating handles.
◆Widely used in various household appliances, electronic equipment, automation equipment, communications equipment, automotive electronics, instrumentation, power tools, and other fields.

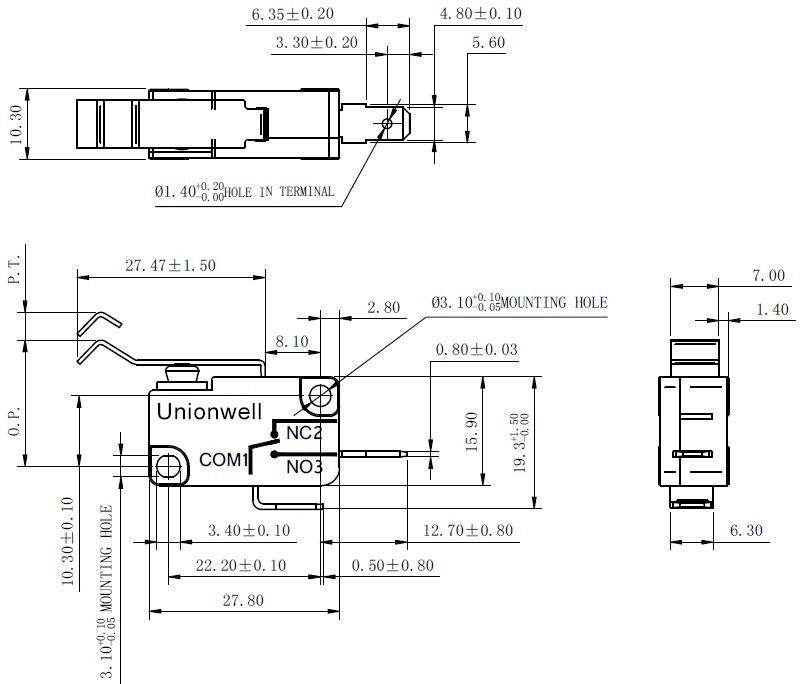

Drawing
Parameter
| Operating speed | 0.1mm-1m/s | |
| Operating Frequency | Electrical | 15cycles/min |
| Mechanical | 60cycles/min | |
| Withstand voltage | between unconnected terminals of the same pole | AC1000V, 50~60Hz, 1min. |
| between live metal parts and housing, between terminals and accessible dead metal parts | AC1500V,50/60Hz,1min. | |
impact resistance | Destruction | Action force >1.0N: 1000m/s² (about 100g) max Action force ≤1.0N: 400m/s² (about 40g) max |
| Malfunction | Action force >1.0N: 1000m/s² (about 100g) max Action force ≤1.0N: 400m/s² (about 40g) max | |
| Contact Resistance(Initial value) | ≤100m Ω | |
| Insulation Resistance | ≥100mΩ (500VDC) | |
| Vibration Durability | 10~55Hz,1.5mm Double amplitude | |
| Storage Temperature | -25°C~+125°C | |
| Storage Humidity | 85%RH Max | |
| Service Life | Electrical | Min.50,000cycles |
| Mechanical | Min.10,000,000cycles | |
Application
The Hermetically Sealed Micro Switch 25T85 10A 125/250VAC 1A 30VDC is a highly reliable basic micro switch widely used in electronic equipment, automation equipment, and automotive electronic control systems. Featuring a precise operating mechanism and excellent sealing, this switch provides fast and accurate response for circuit signal detection, position control, and safety feedback. With an operating temperature range of -25°C to +85°C, it maintains stable performance in variable operating environments, making it suitable for long-term, high-frequency operation in industrial and automotive systems.
This micro switch features an IP64-rated design, offering excellent waterproof and dustproof properties. This effectively prevents moisture and dust from entering the internal structure, ensuring stable electrical connections and control in complex environments. It demonstrates excellent reliability and durability in applications such as automotive door lock detection, motor starter protection, and automated mechanical signal triggering.
This switch boasts an impressive service life of 50,000 electrical cycles and 1,000,000 mechanical cycles, ensuring long-term, highly stable operation. Its sealing and high-precision actuation make the Hermetically Sealed Micro Switch 25T85 an ideal choice for secure control and precise detection in industrial and automotive electronics.
