Model No: G5T16-C2P200A06-H1U

Unionwell Household Appliance Micro Switch Witch Roller

Model Number:G5T16-C2P200A06-H1U
Max. Current:16A
Max. Voltage:250VAC
Operating Temperature:-25℃~125℃
Protection Level:IP40
Product Name:Basic micro switch 16A 125/250VAC
Electrical Rating1:ENEC/CQC: 16(4)A 250VAC u 5E4
Terminal:Quick connect terminals
Max 0perating force:300gf
Lever position:Far From Pin Plunger
Lever type:Bent lever
Application:Home appliance, communication, auto electronics, power tools etc.
Electrical life and Mechanical life:50,000cycles and 1,000,000cycles
Material:Plastic
Function:ON-OFF
Quantity :
Contact Now
Product Description

Unionwell's micro switch with roller is a basic micro switch designed to meet the demanding needs of industrial applications. This micro switch uses a micro switch roller to ensure smooth and accurate switching operation, making it an ideal choice for home appliances, mechanical systems and other equipment. As a professional China micro switch supplier, Unionwell aims to provide high-quality and reliable micro switches to the world.

Themicro switch with roller (Model: G5T16-C2P200A06-H1U) is designed for high-performance applications across various industries. Featuring a basic micro switch configuration, this component supports a max current of 16A and a max voltage of 250VAC, making it suitable for robust operational demands.
Key features include:
  • Operating Temperature: -25℃ to 125℃, ensuring reliable performance in extreme temperatures.
  • Protection Level: IP40, providing adequate protection against dust and accidental contact.
  • Lever Type: Bent lever with the lever position far from the pin plunger, designed for efficient actuation.
  • Max Operating Force: 300gf, enabling precise control.

Feature
  • Tigh configuration, small contact gap, snap action,high sensitivity and small operating travel
  • Global safety approvals
  • Long life,high reliablity
  • Wide operating force
  • With optional PTI grade
  • Variety of levers


Parameter
Operating speed
0.1mm-1m/s
Operating Frequency
Electrical
15cycles/min
Mechanical
60cycles/min
Contact Resistance(Initial value
≤100m Ω
Insulation Resistance
≥100mΩ (500VDC)
Vibration Durability
10~55Hz
Storage Temperature
-40°C~+150°C
Storage Humidity
85%RH Max
Service Life
Electrical
Min.50,000cycles
Mechanical
Min.10,000,000cycles

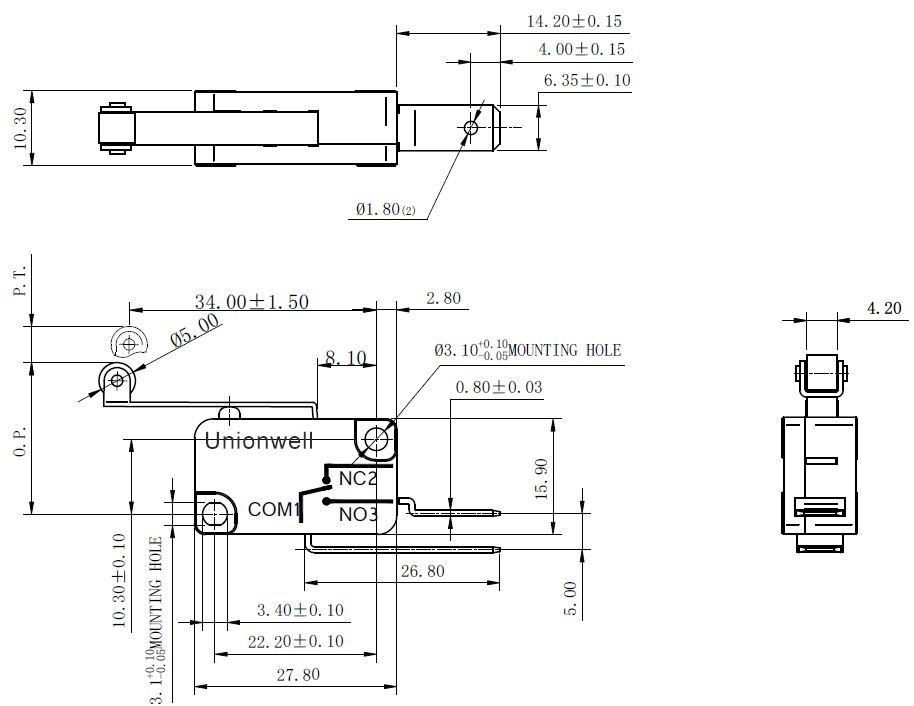

Drawing

Application

The micro switch with roller (Model: G5T16-C2P200A06-H1U) is a versatile and reliable component designed to enhance functionality across various applications. Featuring a robust design with a roller lever, this switch is ideal for high-precision tasks where accurate switching is essential.
Key Applications:
  • Home Appliances: The basic micro switch with roller is used to control functions in appliances such as washing machines and ovens, offering reliable on/off control.
  • Communication Equipment: It ensures efficient and precise switching in communication devices, contributing to seamless operation.
  • Auto Electronics: This switch is crucial for automotive systems, providing dependable performance in vehicle electronics, including control panels and safety systems.
  • Power Tools: In power tools, the micro switch roller facilitates smooth operation and durability, making it suitable for demanding tasks.

This basic basic switch has a maximum current rating of 16A and a voltage of 250VAC and performs well in a wide range of environments, including a temperature range of -25℃ to 125℃. Its roller lever design enhances its usability, making it a top choice for manufacturers seeking a high-performance switch.
