Unionwell Global Safety Approvals Basic Micro Switch G5 Series
Max. Current:26A, 26A
Max. Voltage:48VDC, 125/250VAC
Operating Temperature:-25°C -+125°C
Protection Level:IP40
Operating Force:15gf - 400gf max.
Lever:Variety of Levers
Unit Net Weight:About 6.2g(No lever)
Voltage Resistance:AC1500V, 50/60HZ, 1min
Mechanical Service Life:10E4
Electrical Service Life:5E4
Insulation Resistance:100MΩ(500VDC) max.
Contact Resistance:50mΩ max.
Environment compliance:RoHS and Reach
- TheG5 Series Global Safety Approvals Basic Micro Switchfeaturing a tight configuration and small contact gap for seamless integration into space-constrained applications，it is a must-have choice for a wide range of applications. Its snap-action mechanism ensures instantaneous response with high sensitivity and a small operating travel, making it ideal for precision-critical environments.
- With its IP40 rating, the protectionmicro switchcan withstand a wide range of harsh operating environments, including temperatures as low as -25°C and as high as +125°C.In addition, with a wide operating force range, optional PTI grade materials for enhanced insulation, and a variety of levers , the G5 Series adapts effortlessly to diverse mechanical setups.
- With over 30 years of experience as a leading micro switch manufacturer and supplier, Unionwell produces micro switches designed to meet global safety approvals (UL, CE, RoHS), this switch guarantees compliance with international standards, while its long life and high reliability endure rigorous usage across industries. Our micro switches are responsive, durable, reliable, globally certified for safety and cost-effective to meet your production needs.
- Tigh configuration, small contact gap, snap action,high sensitivity and small operating travel
- Global safety approvals
- Long life,high reliablity
- Wide operating force
- With optional PTI grade
- Variety of levers
Operating speed | 0.1mm-1m/s | |
Operating Frequency | Electrical | 15cycles/min |
Mechanical | 60cycles/min | |
Contact Resistance(Initial value | ≤100m Ω | |
Insulation Resistance | ≥100mΩ (500VDC) | |
Vibration Durability | 10~55Hz | |
Storage Temperature | -40°C~+150°C | |
Storage Humidity | 85%RH Max | |
Service Life | Electrical | Min.50,000cycles |
Mechanical | Min.10,000,000cycles  | |

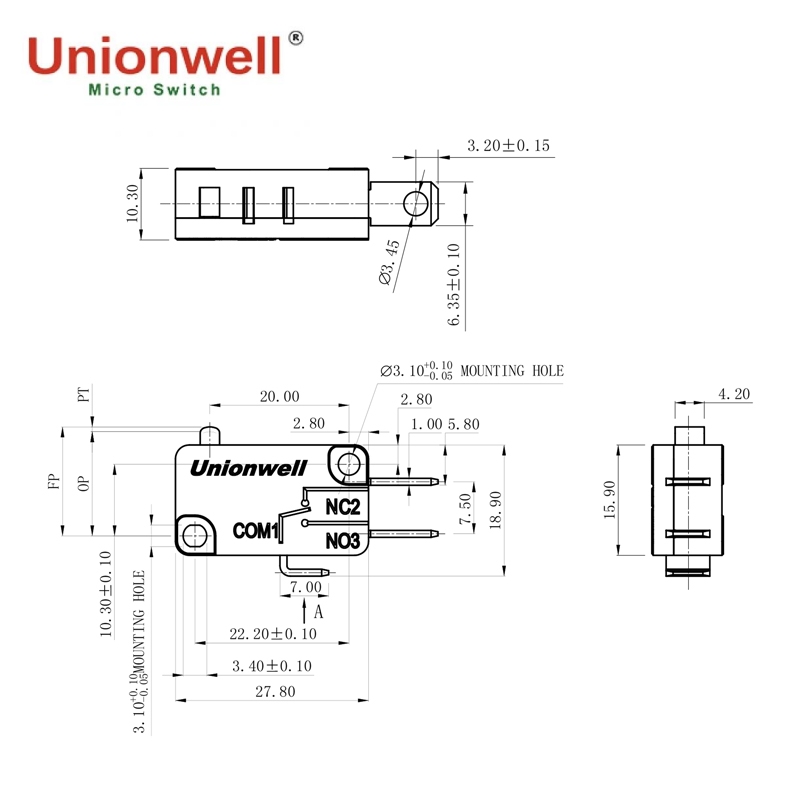

Drawing
- Home Appliances: the Basic Micro Switch excels as a safety-critical component in washing machine lid locks, microwave door sensors, and air conditioner control panels. Its high sensitivity ensures immediate cutoff during malfunctions, while global safety approvals certify safe operation in household environments.
- Automotive: the G5 Series powers tactile feedback in car seat adjustments, glove compartment latches, and brake pedal systems. Its snap-action design and wide operating force accommodate varying driver inputs, while long life performance withstands extreme temperature fluctuations and vibrations.
