Model No: G905-300G00W1

Unionwell G9 Series Sealed MIni Micro Switch 5A 125 250VAC

Model Number:G905-300G00W1
Max. Current:5A
Max. Voltage:250VAC
Operating Temperature:-25℃~120℃
Protection Level:IP67
Product Name:Limit Switch 5A 125/250VAC
Circuit Code:SPDT
Rating-P1:0.1A 125/250V 48VDC
Rating-05:5A 125/250VAC;6A 125/250VAC 1E4;3A 125/250VAC 30VDC 5E4 u 25T120
Lever Type:Short straight lever
Terminal Type:Solder Terminals
Assurance system:ISO9001, TS16949
Operating Force:300gf max w/o lever
Electrical life:10000~100000
Color:Grey
minimum order :
1 piece
Quantity :
Contact Now

Product Description
The G905 series is a sealed mini micro switch with wires, which have an IP67 rating, it means this mini micro switch also is a waterproof micro limit switch.
Thiswaterproof micro limit switch combines a compact design, ideal for space-constrained installations, with IP67-rated protection, ensuring dustproof and waterproof performance even at depths up to 1 meter for 30 minutes.
Built to withstand extreme temperatures (-25℃ to 120℃), its SPDT circuit and solder terminals deliver, suitable for industrial, automotive, and IoT applications. With a 100,000-cycle lifespan, this sealed mini micro switch reduces downtime and maintenance costs while thriving in extreme conditions.

Feature

-Small Compact Size

-Long Life , High Reliability

-Variety of Terminals and Levers

-Widely Used in Auto ,Appliance and Other Industry Control

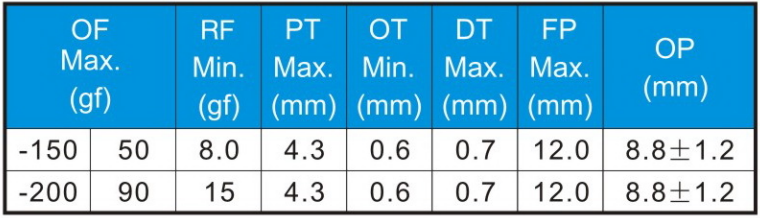

Operating characteristic



Parameters

ratingP10.1A 125/250V 48VDC
Gold Plated Contact Optional
05

ENEC:5A 125/250VAC
6A 125/250VAC 1E4;3A 125/250VAC



30VDC 5E4 u 25T120

Operating FrequencyElectrical10-~30 cycles/minute
Mechanical120 cycles/minute
Contact Resitance100MΩ Max
Insulation Resistance
( at 500VDC)		100MΩ Min
Dielectric StrengthAC 1,000V RMS (50~60Hz)
Storage Temperature-25°C~ +120°C
Storage Humidity85% RH max
Service LifeElectrical10,000~100,000cycles
(Depend on part number)
Mechanical500,000cycles


Applications

Industrial Automation: Triggers safety cutoffs in conveyor belts, robotic arms, and machinery exposed to dust or splashes.
Outdoor Electronics: Ensures reliable operation in agricultural sensors, marine equipment, and solar panel tilt mechanisms.
Smart Appliances: Compact size and waterproofing make it ideal for dishwashers, coffee machines, and fitness devices.

Company Information
Unionwell Advantages:
1. ISO9001 & TS16949 qualified
2. Most products are produced & tested by automatics
3. Automatic machines are designed and assembled by our own team
4. Awarded as National Innovative Technology Company
5. Strong R&D team, authorized over 30 patents



FAQS

Who are we?

We are based in Guangdong, China, start from 2007,sell to Domestic Market(60.00%),Southern Europe(14.00%),NorthAmerica(13.00%),Southeast Asia(8.00%),Western Europe(3.00%),Northern Europe(2.00%). There are total about 301-500 people in our office.

How can we guarantee quality?

  • Always a pre-production sample before mass production;

  • Always final Inspection before shipment.

What can you buy from us?

We have a wide range of products and a large amount of stock in stock, such as Micro Switch; Automotive switches; Waterproof switches; Pressure switches; Mechanical keyboard switches.With independent research and development laboratory, we can provide customized services according to your needs.

Why should you buy from us not from other suppliers?

  • Factory ISO9001 & IATF16949 qualified Products are produced & tested by automatics;

  • Own team designed and assembled automatic machines ;

  • Awarded as National Innovative Technology ;

  • Company authorized over 100 Patents.

What services can we provide?

  • Accepted Delivery Terms: FOB,EXW,FCA,Express Delivery;

  • Accepted Payment Currency: USD, HKD, CNY;

  • Accepted Payment Type: T/T,Western Union,Cash;

  • Language Spoken:English,Chinese.
