Unionwell waterproof 0.1A/5A 25t120 juicer micro switch with wire leads to bottom

Model Number:G905-200E06W2U
Max. Current:5A
Max. Voltage:250V
Operating Temperature:-25°C~+120°C
Protection Level:IP67
Rating:0.1A/5A 125/250VAC 48VDC/Gold Plated Contact Optional
Operating Frequency Electrical:10~30cycles/minute
Operating Frequenc Mechanical:120cycles/minute
Contact Resistance(Initiative):100mΩMax
Insulation Resistance (at 500VDC):100M Ω Min
Dielectric Strength:AC 1,000V RMS (50~60Hz)
Storage Temperature:-25°C~+120°C
Storage Humidity:85%RH Max
Electrical life:10,000~100,000cycles/Depend on part No.
Mechanical Life:500,000cycles

minimum order :

1 piece

Quantity :

Contact Now

Product Description

The Waterproof 0.1A/5A 25T120 Juicer Micro Switch with Wire Leads to Bottom is a waterproof micro switch designed specifically for juicer safety control systems. It plays a key role in motor startup, lid lock detection, and power control, ensuring precise start and stop, and ensuring safety protection. The switch features fast action, high sensitivity, and a small travel distance, ensuring stable triggering even in high-frequency use and high-humidity environments. It features a variety of operating levers for flexible adaptation to various juicer designs. Its compact size and structure make it easy to install in motor compartments or areas with limited panel space, providing efficient and reliable operational feedback for juicers.

As a high-performance IP67 micro switch, it offers excellent dust and water resistance, ensuring continuous and stable operation in complex kitchen environments with splashing liquids and accumulated fruit pulp. It also maintains excellent electrical insulation and contact reliability even under prolonged exposure to high humidity or juice vapor. Its operating temperature range is -25°C to +120°C, meeting the long-term continuous operation requirements of juicers. Its electrical lifespan exceeds 10,000 to 100,000 cycles, and its mechanical lifespan reaches 500,000 cycles, ensuring continued accuracy and sensitivity despite long-term use, and resisting wear and failure.

As a high-performance juicer micro switch, it is rated at 5A at 125/250VAC, making it suitable for a variety of home and commercial juicer applications. Designed by a micro switch manufacturer, this product also features environmental adaptability to operating humidity levels up to 85%RH maximum and robust insulation resistance, effectively resisting electrical loss caused by liquid intrusion. Its bottom-mounted wire leads further enhance its sealing, making it a safe, durable, and responsive key component in juicer control systems, providing users with a smoother and more reliable experience.

Feature

◆Designed for water and dust tight(IP67)
◆Small compact size
◆Global safety approvals
◆Long life and high reliability
◆Variety of levers
◆Wide range of wiring terminals
◆Widely used in Automotive Electronics, Appliance and Industrial Control etc.
◆Customized designs

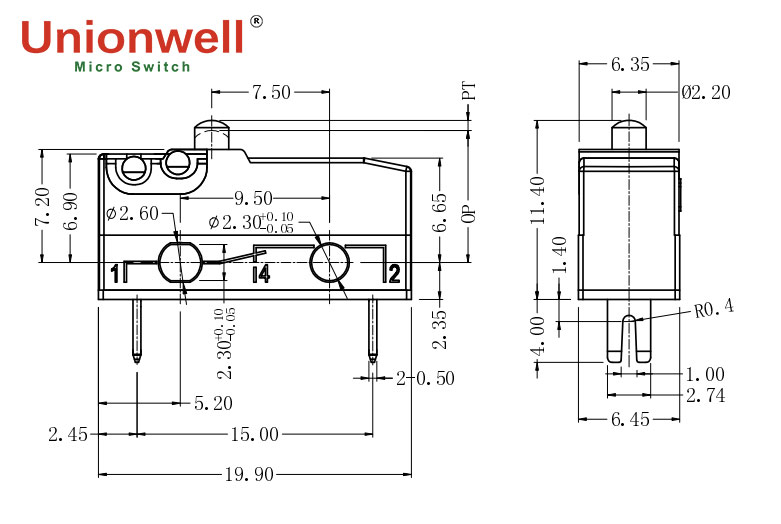

Drawing

The lever can be loaded according to customized requirements.

Parameter

Rating	01	0.1A 125/250VAC 48VDC 5E4 Contacts optional gold plating
	05	UL: 5A 125/250VAC ENEC: 6A 125/250VAC 1E4; 3A 125/250VAC 30VDC 5E4 μ 25T120
Operating Frequency	electrical	12~30 cycles/min
	mechanical	120 cycles/min
Initial contact resistance		100mΩ Max（Wire type varies depending on wire length）
Insulation resistance		100MΩ Min
Dielectric strength		AC1,000V RMS(50~60Hz)
Operating environment temperature		-25℃~+120℃
Operating environment humidity		85%RH Max
Lifespan	electrical	10,000~100,000 cycles (depend on part NO.)
	mechanical	500,000 cycles

Application

This waterproof micro switch, designed specifically for juicers, detects device startup, lid lock security, and motor operation, ensuring safe and precise operation. Featuring fast action, high sensitivity, and stable triggering, this switch maintains reliable response even in high-speed vibration and humid environments, preventing false operation or electrical failure.

This micro switch has an operating temperature range of -25°C to +120°C, withstanding high temperatures and humidity. Its electrical lifespan is rated at 10,000 to 100,000 cycles and its mechanical lifespan is rated at 500,000 cycles, ensuring stable performance even under frequent use. Furthermore, its operating humidity rating of 85% RH (maximum RH) effectively protects against electrical contamination from liquids and pulp during juicer operation.

This model's greatest advantage lies in its IP67 waterproof rating, providing comprehensive protection against dust and water, ensuring reliable operation even in kitchen environments subject to high humidity and splashing liquids. The wire-to-bottom structure not only facilitates installation and circuit connection, but also further enhances the protective sealing, making it a reliable and safe core sensing component in modern juicer control systems.
