Unionwell G5 Snap Action Micro Switch 2Pins or 3 Pins SPDT
Model Number:G5
Max. Current:0.1A~26A
Max. Voltage:125/250VAC,48VDC
Operating Temperature:-25℃~+125℃
Protection Level:IP40
Electrical life:100,000 cycles (Depend on Part No.)
Mechanical life:500,000cycles
Operating force:500gf max w.o lever
Terminal:Terminal
Lever type:More options
Application:Car, air conditioner electric tooth brush ,toys motor control
Related words:electrical lever pin plunger micro switch actuator micro switch
Certification:ENEC
Circuit:SPDT SPST-NO SPST-NC
Rating:0.1A-26A 125/250VAC
- G5 miniature snap action switch is a multi-functional, high-performance miniature switch product, suitable for automotive, air conditioner, electric toothbrush, toy motor control and other scenarios. Its model number is G5 and has a wide current range from 0.1A to 26A with a maximum voltage of 125/250VAC and 48VDC.
- With an operating temperature range of -25°C to +125°C and IP40 protection, it is stable in harsh environments. The electrical life is up to 100,000 cycles (depending on the part number) and the mechanical life is 500,000 cycles, guaranteeing long-lasting use.
- The maximum operating force is 500gf, and different types of levers are available. The product is ENEC certified and of reliable quality. It supports a variety of circuit designs, including SPDT, SPST-NO, SPST-NC, to meet different application needs.
- The G5 miniature snap action micro switch is your ideal choice for automotive electronics, home appliances and other fields, with high reliability and superior performance.
Features.
*Global safety approvals
*Tight configuration,small contact gap,snap action,high sensitivity
*Long life,high reliablity
*Wide operating force
Parameters
| Operating speed | 0.1mm-1m/s | |
| Operating Frequency | Electrical | 15cycles/min |
| Mechanical | 60cycles/min | |
| Contact Resistance(Initial value | ≤100m Ω | |
| Insulation Resistance | ≥100mΩ (500VDC) | |
| Vibration Durability | 10~55Hz | |
| Storage Temperature | -40°C~+150°C | |
| Storage Humidity | 85%RH Max | |
| Service Life | Electrical | Min.50,000cycles |
| Mechanical | Min.10,000,000cycles | |

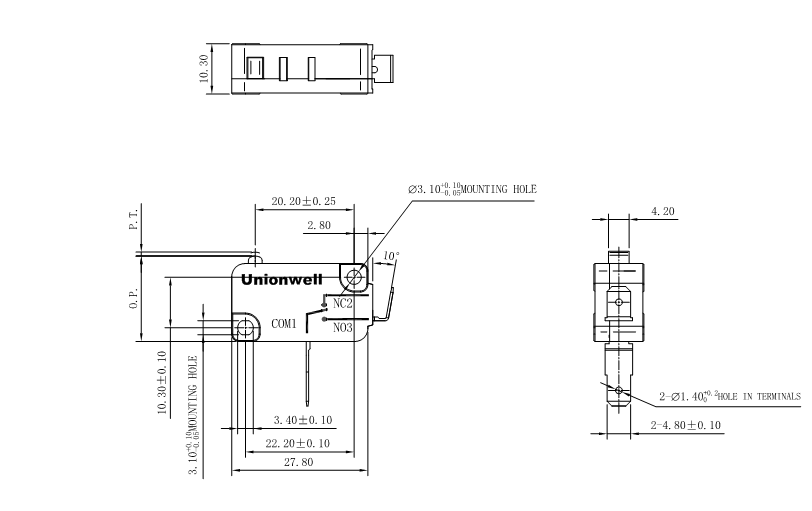

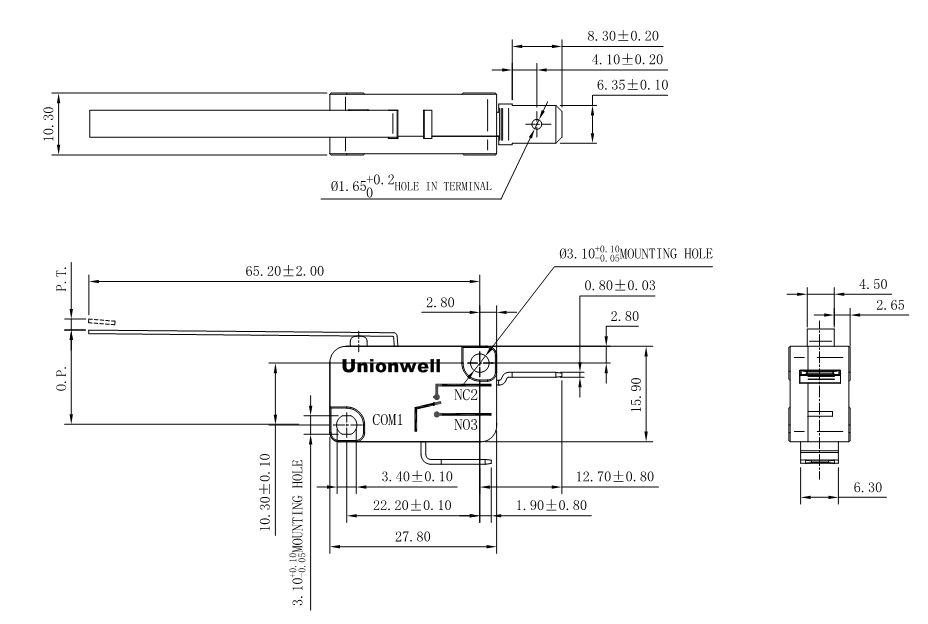

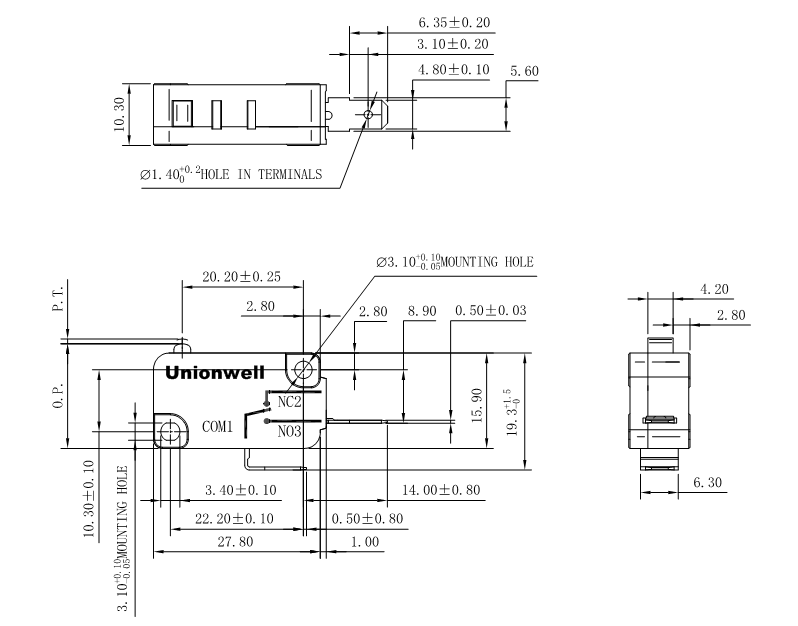

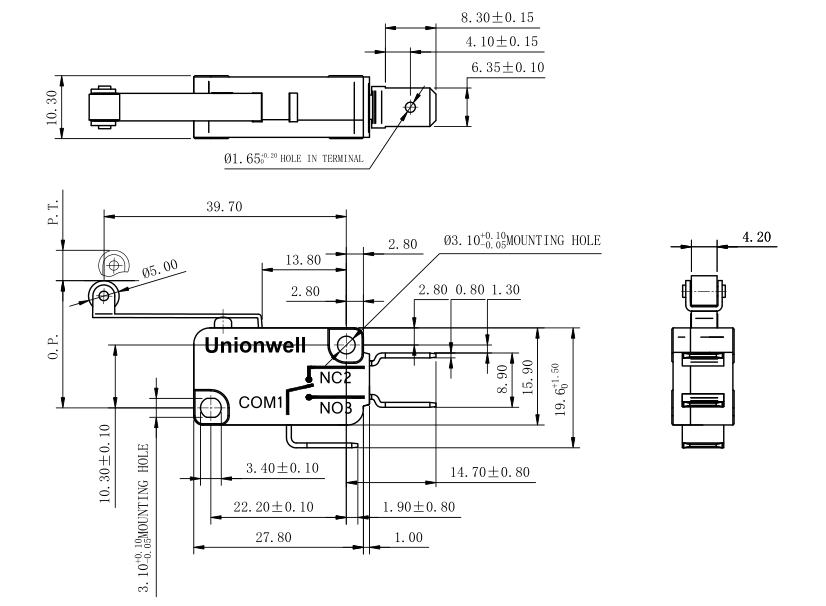

Drawings
