Unionwell G5 Series Spdt Micro Switch Witch Multiple Lever Types

Model Number:G5 Series
Max. Current:0.1A~26A
Max. Voltage:125/250VAC,48VDC
Operating Temperature:-25℃~+150℃
Protection Level:IP40
Electrical life:Min.50,000 cycles
Mechanical life:Min. 10,000,000cycles
Operating speed:0.1mm-1m/s
Contact resistance:≤100m Ω
Insulation resistance:≥100mΩ
Vibration durability:10~55Hz
Certification:ROHS
Application:Home Appliance
Rating:10A 125/250VAC 16A 125/250VAC

minimum order :

1 piece

Quantity :

Contact Now

Product Description

This G5 seriesSPDT micro switch is a high-performance product, designed to meet the needs of a variety of applications, can be designed into a variety of types of lever micro switches, such asroller type micro switches,straight lever micro switches, etc., to meet your various application needs. Efficient performance and cost-effectiveness make the G5 SPDT micro switch a replacement for the KW7 micro switch.

The internal circuit of this KW7 micro switch is a SPDT micro switch，the circuit design is simple and reliable, and it can also be produced according to your needs, and can withstand the maximum current from 0.1A to 26A, suitable for different load requirements. The operating temperature range is -25°C to +150°C, making it suitable for operation in a wide range of environments. And extremely durable, with a minimum electrical life of 50,000 times and a mechanical life of more than 10 million times, providing long-lasting and reliable performance and reducing maintenance costs.

This G5 series SPDT micro switch is widely used in household appliances micro switches , such as washing machines, air conditioning control or microwave oven door micro switches, etc., this roller type micro switch has excellent performance.

Unionwell is a specialized micro switch wholesaler and manufacturer, we have ISO9001 & IATF16949 qualified and automated production lines. Besides manufacturing spdt micro switches, we also produce appliance micro switches, automotive micro switches, industrial micro switches and so on.

Parameters

Operatingspeed		0.1mm-1m/s
Operating Frequency	Electrical	15cycles/min
	Mechanical	60cycles/min
Contact Resistance(Initial value		≤100mΩ
Insulation Resistance		≥100mΩ(500VDC)
Vibration Durability		10~55Hz
Storage Temperature		-40°C~+150°C
Storage Humidity		85%RH Max
Service Life	Electrical	Min.50,000cycles
	Mechanical	Min.10,000,000cycles

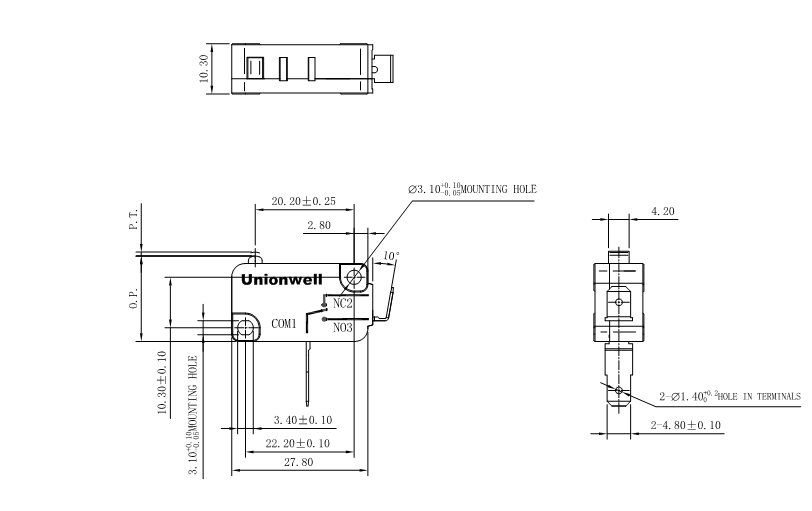

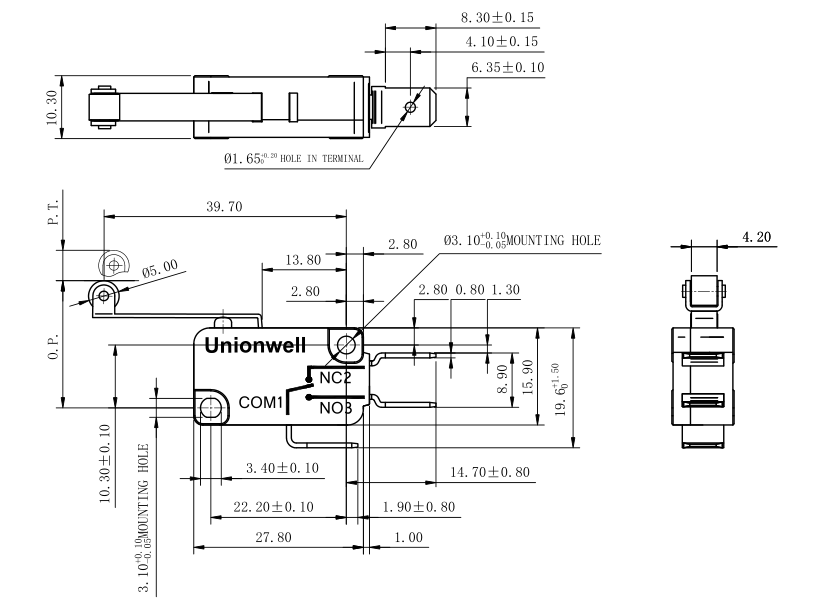

Drawings

Application

Electric Clothes Drying Rack: The main components of theelectric clothes drying rack includethe rack host, the wind rack and theclothes drying telescopic rod. The rack main unit isone of the mostcomplex parts thatneeds to be connectedto the power supply,it consists of UV lampsand hair dryers andmicro switches. Small basic micro switches are used tolimit retraction rod placement todiscourage overstretching andreduction.
