Model No: G5T16-E2P300A228

Unionwell G5 Series Basic Micro Switch Auto For Electronics 16A 125/250VAC

Brand Name:Unionwell
Model Number:G5T16-E2P300A228
Max. Current:16A
Max. Voltage:250VAC
Operating Temperature:-25℃~125℃
Product Name:Basic micro switch 16A 125/250VAC
Electrical Rating1:ENEC/CQC: 16(4)A 250VAC u 5E4
Terminal:Quick connect terminals
Max 0perating force:300gf
Lever position:Far From Pin Plunger
Lever type:Bent lever
Application:Home appliance, communication, auto electronics, power tools etc.
Electrical life and Mechanical life:50,000cycles and 1,000,000cycles
Material:Plastic
Function:ON-OFF
minimum order :
1 piece
Quantity :
Contact Now

Product Description

The Basic Micro Switch Auto For Electronics is a high-performance switching component designed specifically for automotive electronics and related equipment, offering advantages such as miniaturization, durability, and high sensitivity. As a basic micro switch, it delivers precise triggering and fast response within confined spaces, making it ideal for control and detection in automotive electronic systems. Its operating temperature range is -25°C to +125°C, ensuring stable operation in both cold and hot environments, meeting the demands of long-term automotive use in diverse regions and under complex operating conditions.

This product, also classified as a subminiature basic micro switch, features a compact design that allows for easy integration into control modules with limited space. With an electrical life exceeding 50,000 cycles and a mechanical life exceeding 1,000,000 cycles, it maintains reliable performance even in high-frequency operation, reducing maintenance and replacement costs.

Thanks to its high-temperature resistance, long life, and compact design, designed by micro switch manufacturers, the Basic Micro Switch Auto For Electronics is commonly used in systems such as automotive door locks, seat adjustments, window controls, and throttle and brake feedback. It provides precise and stable signal input to electronic control modules, making it a key component for enhancing the safety and reliability of automotive electronics.However, this switch is not waterproof. If you're interested in dustproof and waterproof micro switches, you can view other models on our product page.


Feature

◆Compact structure with a small contact gap,Fast action, high sensitivity, and small stroke.
◆Long life and high reliability.
◆Global safety certifications available.
◆Complete terminal block selection.
◆Wide operating force range from 7gf to 600gf.
◆Multiple temperature ratings available: 25T85, 25T125, 25T150, and PTI ratings of 175V, 250V, and 600V.
◆Equipped with various operating handles.
◆Widely used in various household appliances, electronic equipment, automation equipment, communications equipment, automotive electronics, instrumentation, power tools, and other fields.

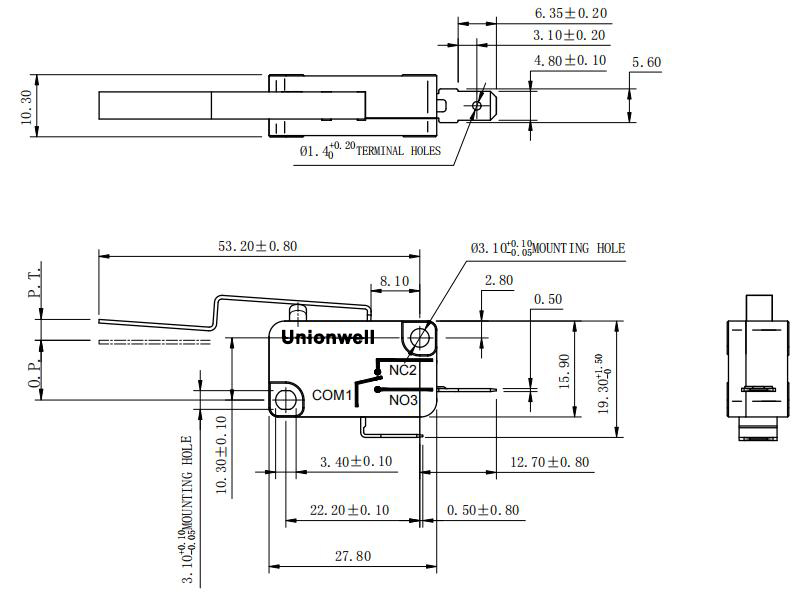

Drawing

basic micro switch drawing
Parameter
item
value
Certification
ENEC,CQC
Whether the smart
NO
Place of Origin
China,Guangdong
Brand Name
Unionwell
Model Number
G5T16-E2P300A228
Max. Current
16A
Max. Voltage
250VAC
Operating Temperature
-25℃~125℃
Product Name
Basic micro switch 16A 125/250VAC
Electrical Rating
ENEC/CQC: 16(4)A 250VAC u 5E4
Terminal
Quick connect terminals
Max 0perating force
300gf
Lever position
Far From Pin Plunger
Lever type
Bent lever
Application
Home appliance, communication, auto electronics, power tools etc.
Electrical life and Mechanical life
50,000cycles and 1,000,000cycles
Material
Plastic
Function
ON-OFF

Application
The Basic Micro Switch Auto for Electronics has a wide range of applications in automotive electronic systems.
As a subminiature basic micro switch, it is often used to detect the status of door locks, ensuring precise switching.
Its compact design allows it to fit into tight spaces in window control and seat adjustment applications.
Furthermore, it can also be used in accelerator pedals and brake systems, providing stable signal feedback.
With its long life and high-temperature resistance, this basic micro switch provides reliable support for automotive electronic control systems, enhancing vehicle safety and comfort.
