Model No: G5 Series

G5 Series Global safety Subminiature Micro Switch For Power Tool 0.1A-26A 125/250VAC

Model Number:G5 Series
Max. Current:26A
Max. Voltage:125/250VAC
Operating Temperature:-25℃~85℃
Protection Level:IP00
Guarantee:Trade assurance
Electrical life:Over 50,000 cycles
Mechanical life:Over 10,000,000 cycles or 1,000,000 cycles
Terminal:Solder terminals
Function:SPST-NC, SPST-NO,,SPDT
Application:Auto Electronics,Air conditioner,communication,tooth brush,toys etc
Rating:26A 125/250VAC
Product Name:Micro Swich
Color:Black/ White
Insulation Resistance:100m
Certification:ENEC
minimum order :
1 piece
Country of Origin :
Shenzhen,Guangzhou,HK
Quantity :
Contact Now
Product Description
As a leading miniature micro switch manufacturer , Unionwell have introduced the G5 series of Subminiature basic switches. Built with a tight configuration and small contact gap, the G5 Series micro switch ensures rapid response and consistent performance even in high-vibration environments. Its wide operating force range and optional PTI grades allow customization for diverse operational needs.

Feature:
Tight Configuration,Small Contact Gap , Snap Action
Long Life, High Reliability
Wide Range Temperature Grade
Wide Range Operating Force
With Optional PTI Grade
Variety Used in Home Applicances, Electronic Equipments, Automatic Machines
Variety of Levers

Unionwell Advantages:
1. ISO9001 & TS16949 qualified
2. Most products are produced & tested by automatics
3. Automatic machines are designed and assembled by our own team
4. Awarded as National Innovative Technology Company
5. Strong R&D team, authorized over 30 patents

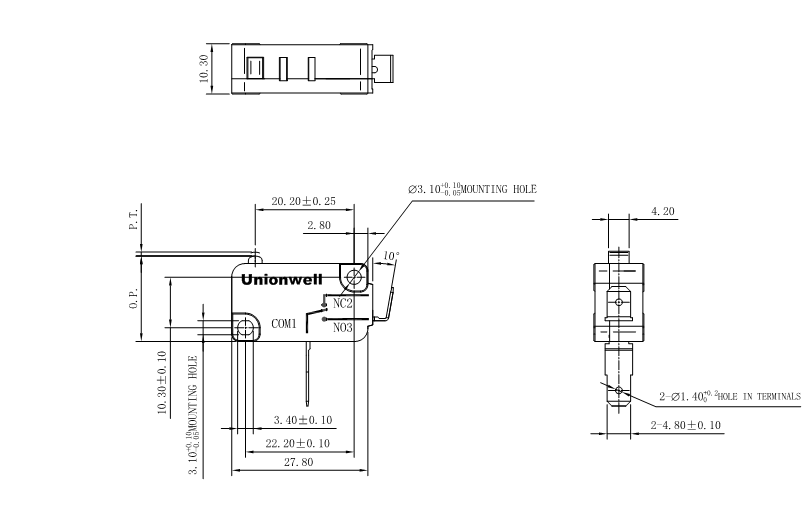

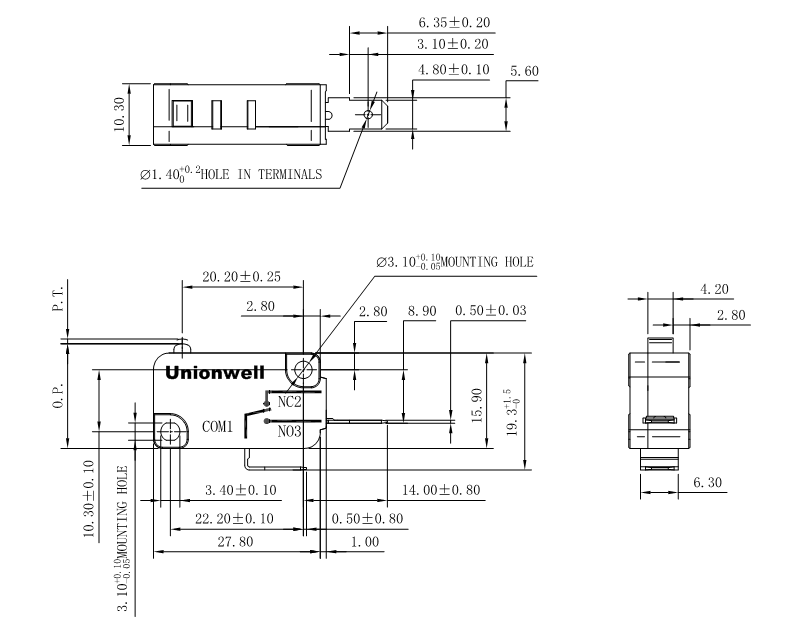

Drawings:

Operating Characteristics

Operating Speed0.1mm-1m/s( Related with actuator forms)
Operating FrequencyMechanical 60 cycles/min; Electrical 15 cycles/min.
Insulation Resistance≥100MΩ (500VDC)
Contact Resistance≤100MΩ (Initial value)
Test VoltageBetween each terminals of the same polarityAC1000V,50/60HZ, 1min.
Between current-carrying metal part and ground.and between each terminal and non-current-carring metal partsAC1500V, 50/60HZ, 1min.
Vibration Resistance10-55HZ, 1.5mm Double amplitude
Shock ResistanceDestruction: OF>0.5N:1000m/s2 (approx.100G)max.
Destruction:OF>0.5N:200m/s2 (approx.20G)max.
Serivece LifeMechanical ≥ 10,000,000cycles or 1,000,000cycles
Electrical ≥ 50,000cycles or 100,000cycles
WeightApprox. 6.2g(No lever).
Trade Terms1.The price is based on FOB Shenzhen or Hongkong or EXW factory2.MOQ:5000pcsPayment:T/T payment,50% deposit before production, balance 50% before shipment
CertificatesISO9001&TS16949ENEC&CQCRoHS & Reach


Application

The G5 Series excels as a Micro Switch for Power Tools and beyond, offering precision control in industries where durability and compactness are non-negotiable:

Power Tools & Automation

Safeguards drills, sanders, and saws with fail-safe circuit interruption.

Withstands repetitive mechanical stress in robotic arms and assembly lines.

Home Appliances & HVAC

Integrates seamlessly into air conditioners, refrigerators, and smart home devices.

Ensures reliable temperature/pressure cutoff in compressors.

Consumer Electronics

Powers tactile feedback in electric toothbrushes, toys, and wearable tech.

Optimizes space in PCB designs for IoT and communication devices.
