A micro switch is a switch with high sensitivity and durability that is widely used in a variety of household appliances. Its excellent performance has made it widely used in household equipment such as washing machines, air conditioners, and microwave ovens. In refrigerators, micro switches play a key role, such as Unionwell's SWD series, which plays a decisive role in controlling interior lighting. This article will take you through the intelligent control of micro switches in the interior lights of refrigerators, and help you better understand the importance of such small parts.

The workflow of a micro switch

The internal structure of a micro switch

Micro switches, also known as limit switches, consist primarily of a housing, a contact system, and a spring-loaded lever. When an external force acts on the joystick, the contact system opens or closes quickly, allowing the circuit to open and close. Its clever design enables a quick response with the slightest force to ensure reliable switching of circuits.

The difference between a micro switch and a normal switch

Compared with ordinary switches, micro switches have higher sensitivity and reliability. Ordinary switches require a large operating force to switch states, while micro switches require only a slight force to trigger. This makes the micro switch particularly good in applications that require precise control and high-frequency operation. Therefore, it is often used in equipment that requires precise control and high-frequency operation, such as household appliances (refrigerators, microwave ovens), industrial machinery, automotive electronics, etc.

Intelligent control of the lights inside the refrigerator

How the micro switch controls the lights

In refrigerators, micro switches are usually installed on the inside of the refrigerator door frame. When the refrigerator door is opened, the micro switch is released, the circuit is turned on, and the internal light is lit; When the refrigerator door is closed, the microswitch is pressed, the circuit is disconnected, and the internal light goes out. This intelligent control method not only improves the convenience of use, but also effectively saves energy and prolongs the service life of the lamp.

Convenience and energy savings

The intelligent control through the micro switch makes the use of the refrigerator more convenient. The user does not need to manually control the light, and the door can be opened and closed to complete the light opening and closing operation automatically. In addition, this control method can effectively prevent the lights from being turned on for a long time, reduce unnecessary power consumption, and achieve energy saving.

Types and selection of micro switches

Common types of micro switches and their characteristics

The micro switches suitable for refrigerators mainly include basic type, waterproof type, high sensitivity type, etc. The basic micro switch has a simple structure and is suitable for general environments; The waterproof micro switch has good sealing performance and is suitable for wet environments; The high-sensitivity micro switch responds quickly and is suitable for applications that require precise control.

Advantages and disadvantages of different types of micro switches

Different types of micro switches have their own advantages and disadvantages in the application of refrigerators. For example, basic micro switches are less expensive, but less durable and waterproof; The roller type has an operating lever with rollers, which triggers the switch by rolling, which is suitable for various high-frequency operation occasions; The waterproof micro switch is suitable for the environment with high humidity such as the refrigerator, but the cost is relatively high.

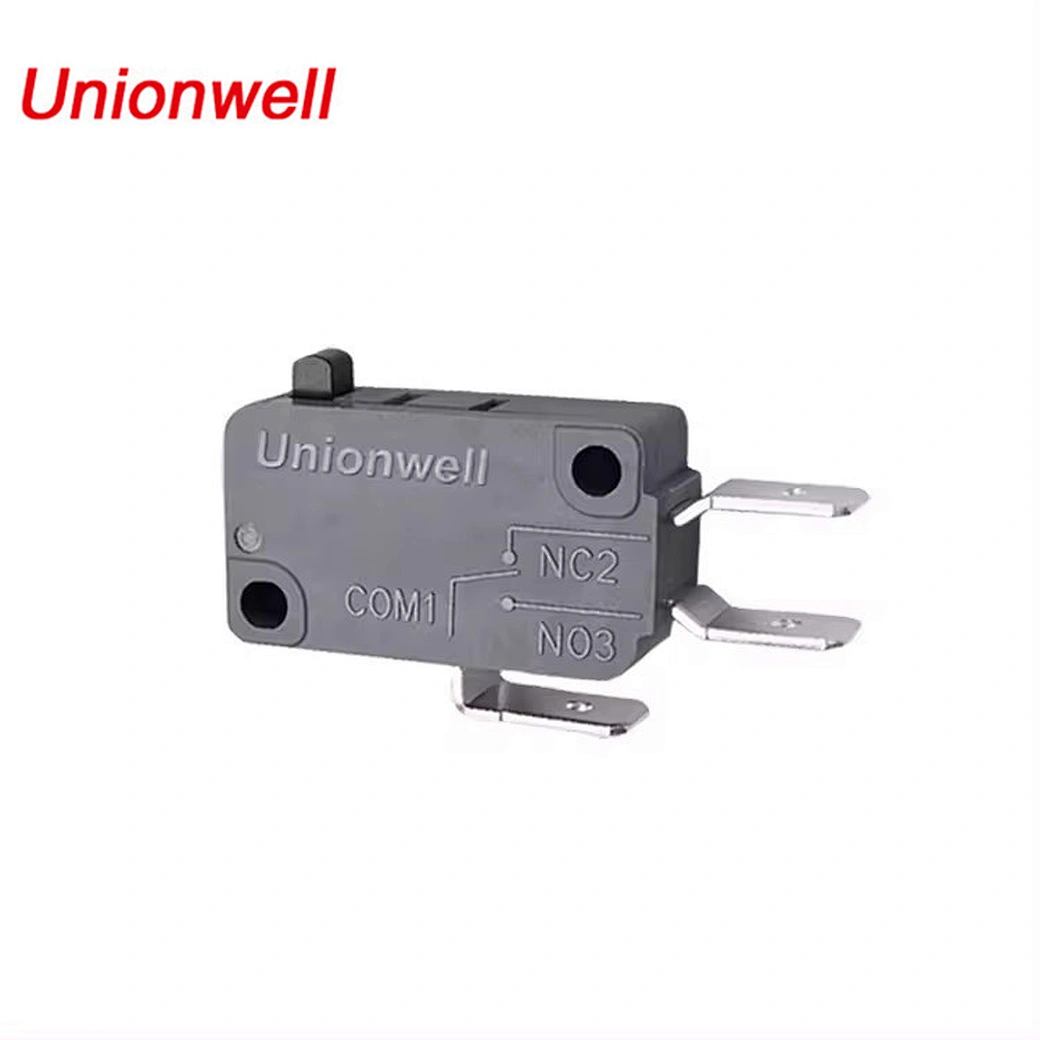

Basic micro switches

Peculiarity:

• Simple structure: Basic micro switches usually have a simple structure, which is easy to install and use.
• High sensitivity: It can be triggered under slight operating force, which is suitable for occasions that require high-precision control.
• Variety of operating forces: A wide range of operating forces, from very low to high operating forces, to meet the needs of different applications.

Apply:

• Household appliances: such as refrigerators, microwave ovens and other equipment on-off control.
• Industrial equipment: for position detection and limit control.

Roller micro switch

Peculiarity:

• Roller design: Joystick with rollers enables the smooth triggering of the switch when the moving parts are in contact.
• Low friction: The rollers reduce friction and extend the service life of the switch.
• High durability: suitable for high-frequency operation occasions, with long service life.

Apply:

• Automation equipment: such as conveyor belts, robotic arms and other equipment that requires precise position detection.
• Household appliances: such as washing machines, dryers, and other devices that require durability.

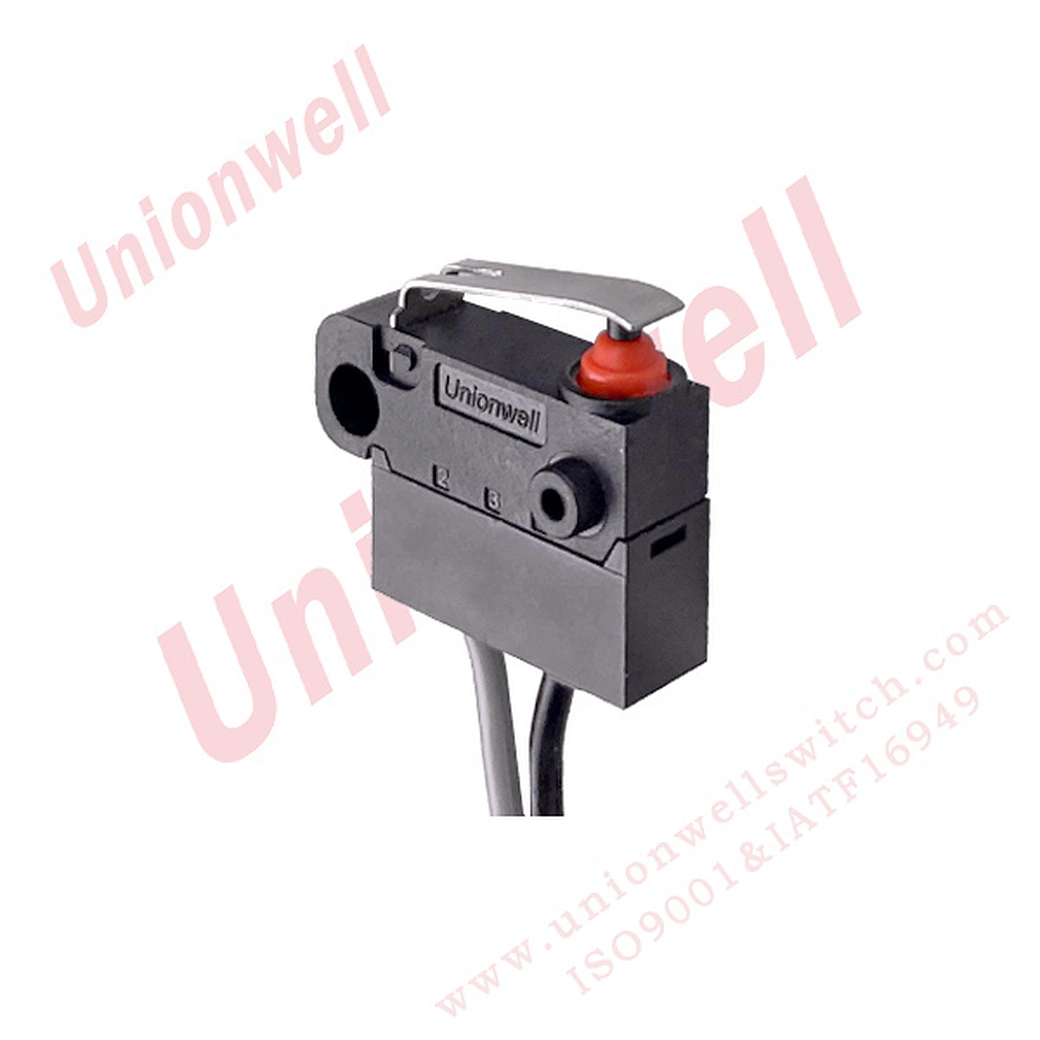

Waterproof micro switches

Peculiarity:

• Waterproof design: With IP67 or higher waterproof and dustproof performance, suitable for use in wet or dusty environments.
• Sealing structure: The internal structure is completely sealed to prevent water and dust from entering, ensuring the reliability of the switch.
• High durability: suitable for harsh environments, with long mechanical and electrical life.

Apply:

• Outdoor equipment: such as vending machines, outdoor lighting equipment, etc.
• Automotive industry: for doors, windows and other components that require waterproof performance.

Other applications of micro switches in refrigerators

The application of micro switches in refrigerators is not limited to the control of internal lights, but also widely used in temperature control, door alarm systems, ice machines and automatic defrost systems. Microswitches assist refrigerators to achieve intelligent control and efficient operation.

Temperature control: Microswitches can also be used in the temperature control system of refrigerators. When the internal temperature of the refrigerator reaches the set value, the micro switch can trigger the start or stop of the refrigeration system to maintain a constant temperature inside the refrigerator.

Alarm system: When the refrigerator door is not closed for a long time, the micro switch can trigger the alarm system to remind the user to close the refrigerator door in time, so as to prevent cold air leakage and improve energy efficiency. This multiple application further improves the overall performance and user experience of the refrigerator.

Refrigerator ice machine control: The micro switch can be used to detect the water level of the ice machine water tank, when the water level reaches a certain height, the micro switch is triggered, stop the water inlet and prevent overflow. When the ice making is complete, a microswitch can trigger a mechanism that releases the ice into the ice storage box.

conclusion

Microswitches are used in a wide range of applications in refrigerators, especially in the intelligent control of interior lights. Choosing a high-quality micro switch not only improves the convenience and energy efficiency of the refrigerator, but also ensures the safety and longevity of the equipment. As a professional micro switch manufacturer, Unionwell provides high-quality micro switch products to customers around the world, and is a trusted partner by your side. When purchasing and maintaining a refrigerator, it is crucial to pay attention to the selection and use of micro switches.
