The Role of Subminiature Micro Switch in Truck Door Lock Detection

As logistics trucks and heavy-duty transport vehicles become increasingly intelligent, the requirements for security, status detection, and control reliability in Truck Door Lock Systems are constantly rising. Door lock systems not only need to ensure stable door closure but also require real-time confirmation of the locking status through detection elements to prevent vehicle operation safety from being compromised due to incomplete door locking.

Among these components, the subminiature micro switch, with its miniaturized structure, precise triggering capability, rapid signal feedback, and stable mechanical performance, has gradually become a crucial detection element in Truck Door Lock Detection Systems. This article will introduce its working principle, main functions, and application advantages in truck door lock detection systems to help readers understand its application value in vehicle control systems.

Why Subminiature Micro Switch Is Important in Truck Door Lock Detection Systems

Modern Truck Door Lock Detection Systems are not simply mechanical lock structures but consist of multiple parts, including a Truck Door Lock Mechanism, Lock Position Detection Structure, detection components, a Vehicle Control Module, and a Signal Processing Circuit, which work together to complete door status detection, signal acquisition, and control judgment.

The Lock Position Detection Structure is responsible for sensing changes in the position of the latch, bolt, and locking mechanism. The subminiature micro switch, as the core detection element, converts mechanical actions into electrical signals that the vehicle control system can recognize.

When the driver closes the door, the detection structure confirms whether the latch has engaged. Once the locking mechanism reaches the designated position, it actuates the subminiature micro switch, switching internal contacts and outputting a signal to the Vehicle Control Module. The control module determines the door status based on the feedback and executes corresponding control logic.

Compared to complex electronic sensing solutions, the subminiature micro switch's stable structure, fast response, and clear signal effectively reduce false alarms and improve the detection accuracy and long-term reliability of the Truck Door Lock Detection System.

How Subminiature Micro Switch Works in Truck Door Lock Detection

Subminiature Micro Switch Detects Door Lock Position Changes

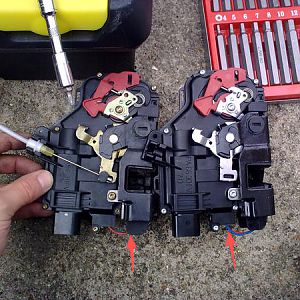

To understand the role of the subminiature micro switch in the Truck Door Lock Detection System, it's necessary to understand the movement of the locking mechanism when the door is closed. When the driver closes the door, the latch contacts the vehicle's locking pin and enters the locked position. Simultaneously, the latch, lever, and linkage mechanism move synchronously to secure the door.

In the Lock Position Detection Structure, the detection mechanism pushes the actuator of the subminiature micro switch as the locking position changes, causing the internal contacts to switch rapidly. Due to the snap action structure, even small mechanical displacements achieve rapid and clear signal conversion, which is then transmitted to the Vehicle Control Module via signal processing circuitry.

The control module determines whether the door is locked based on the switch feedback. The precise mechanical triggering method of the subminiature micro switch reduces false alarms, providing reliable data support for the Truck Door Lock Detection System and ensuring the long-term stable operation of the door control system.

Subminiature Micro Switch Provides Reliable Lock Status Feedback

After completing position detection, the Truck Door Lock Detection System still needs to continuously monitor the door lock status during vehicle operation. For logistics vehicles, frequent stops, loading/unloading, and driver entry/exit all cause constant changes in the door lock mechanism, thus requiring the system to obtain accurate feedback in real time.

During this process, the subminiature micro switch is responsible for continuously providing status signals. When the door is locked, the micro switch outputs a stable signal to the Vehicle Control Module; when the door opens, the latch position changes, causing the switch contacts to switch to another state, allowing the control module to recognize that the door is unlocked.

Through this mechanism, the system can determine in real time whether the door is closed, whether the locking mechanism is in place, and whether status prompts are needed. Because the subminiature micro switch has stable action consistency and reliable signal output capabilities, it can effectively reduce detection errors and improve the accuracy of the Truck Door Lock Detection System and the overall reliability of vehicle operation.

Key Advantages of Subminiature Micro Switch for Truck Door Lock Systems

Compact Design Fits Limited Installation Space

Modern truck doors integrate multiple components such as door locking mechanisms, linkage assemblies, wiring harnesses, and power window systems, resulting in limited installation space. Therefore, the detection element not only needs stable performance but also meets the requirements of miniaturization.

The subminiature micro switch features a compact structure and is installed near the Truck Door Lock Mechanism or Lock Position Detection Structure. Designers can adjust the installation position according to the movement trajectory of the locking mechanism, ensuring that the actuator accurately receives the mechanical actions generated by the latch or linkage mechanism.

As an automotive micro switch, the subminiature micro switch minimizes space occupation while maximizing flexibility for the internal door structure layout. Simultaneously, this also helps reduce system integration difficulty, enabling more rational cooperation between mechanical components and electronic control modules, making it a crucial detection element in the door control system.

Accurate Switching Performance for Door Lock Detection

Truck Door Lock Detection Systems require accurate determination of whether the locking mechanism has reached a designated position; therefore, the detection element needs stable and consistent operational performance. The subminiature micro switch employs a defined travel design. When the actuator is pushed to the set position, the internal contacts can quickly switch and output a clear and stable signal, effectively improving the accuracy of locking status detection.

In vehicle door lock systems, detection deviations can cause the control module to misjudge the locking status, affecting the vehicle control logic. Therefore, the subminiature micro switch maintains a stable signal output by precisely controlling the action force, trigger position, and reset performance, ensuring the reliable operation of the Truck Door Lock Detection System.

Long Mechanical Life for Heavy-Duty Vehicle Applications

Compared to passenger cars, trucks undertake more intensive transportation tasks, with a higher frequency of door opening and closing. Therefore, the detection element in the Truck Door Lock Detection System needs to have excellent durability to meet the requirements of long-term repetitive operation.

Each door movement triggers the detection mechanism, subjecting the subminiature micro switch to numerous cycles throughout the vehicle's lifespan. Insufficient mechanical life can lead to operational deviations, degraded contact performance, or signal instability, affecting door status assessment.

High-quality subminiature micro switches possess a long mechanical lifespan, maintaining stable triggering performance under high-frequency operating conditions, reducing maintenance and replacement costs, and improving vehicle operational reliability. Mechanical lifespan is also a crucial indicator of manufacturing processes, material selection, and structural design quality.

Conclusion

The subminiature micro switch, with its miniaturized structure, precise switching performance, stable signal output, and long mechanical lifespan, has become a vital electronic component in modern truck door lock detection systems.

With the increasing intelligence of commercial vehicles, the requirements for detection accuracy and reliability in truck door lock systems will continue to rise. For automakers and component suppliers, choosing a micro switch manufacturer with independent R&D capabilities, precision manufacturing processes, and a rigorous quality management system will contribute to the development of safer, more stable, and more efficient vehicle control systems.
