Unionwell Waterproof Micro Switch 12v

Model Number:G3
Protection Level:IP67
Max. Current:3A, 15A
Max. Voltage:250VAC
LED:NO
Switch Combination:1NO1NC
Product name:Waterproof Micro Switch for Automotive Switch Application
Electrical life:50,000cycles
Mechanical life:1,000,000cycles
Function/circuit:SPDT (or SPST-NO, NC for option)
Lever type:Straight lever
Operating force:50gf max w/ lever (light or heavy for option)
Company assurance system:ISO9001 & TS16949
Environmental compliance:RoHS, Reach
Terminal type:Solder terminals (other types for option)
Material:Plastic+Metal

Quantity :

Contact Now

Product Description

The G3 waterproof sealed micro switch is a high-performance switch designed for automotive applications with superior durability and protection. The 12V micro switch has a stable voltage and works stably and smoothly. Its enclosure is IP67 protected against water and dust ingress. This sealed micro switch also offers a variety of current and voltage options to suit different electrical load needs and is suitable for a variety of application scenarios.

Advantages

High durability: The mechanical life reaches 100,000 cycles, and the electrical life exceeds 50,000 cycles, ensuring long-term stable work and reducing maintenance frequency.
Superior protection: The IP67 degree of protection prevents water and dust ingress, enabling the switch to operate reliably in a wide range of harsh environments.
Wide range of configuration options: Optional circuit types include SPDT and SPST (NO, NC), as well as different operating forces and levers, and adaptable micro switches with voltage to meet different application requirements.

This sealed micro switch is widely used in automotive electrical systems such as window controls, light switches, and other electrical control systems that require durability and waterproof functionality. Its high durability and degree of protection make it suitable for a wide range of demanding automotive and industrial applications.

Feature
-Designed for water and dust tight(IP67)
-Small compact size
-Global safety approvals
-Long life and high reliability
-Variety of levers
-Wide range of wiring terminals
-Widely used in Automotive Electronics, Appliance and Industrial Control etc.
-Customized designs

Parameter

Rating		0.1A 125/250VAC;3A/12VDC;0.1A/48VDC
Operating frequency	Electrical	0.1A-120;3A-10~30 cycles/min
	Mechanical	120 cycles/min
Contact resistence		100M Ω Max(without wire type)
Insulation resistance		100M Ω Min
Vibration durability		10~55Hz, move 1.5mm(p-p)
Dielectric Strength		500VAC (50~60Hz)
Storage Temperature		-40℃+85℃
Storge Humidity		85% RH Max
Service	Electrical	Min 100,000 cycles
	Mechanical	Min 500,000 cycles

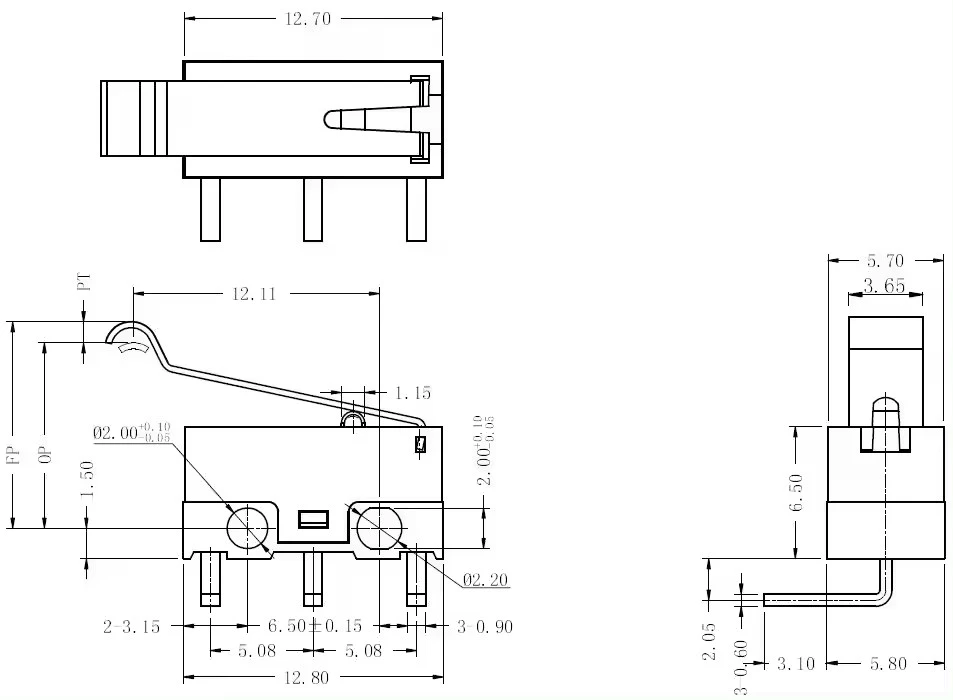

Drawing
