Sealed Sub-Miniature Micro Switch G304R series

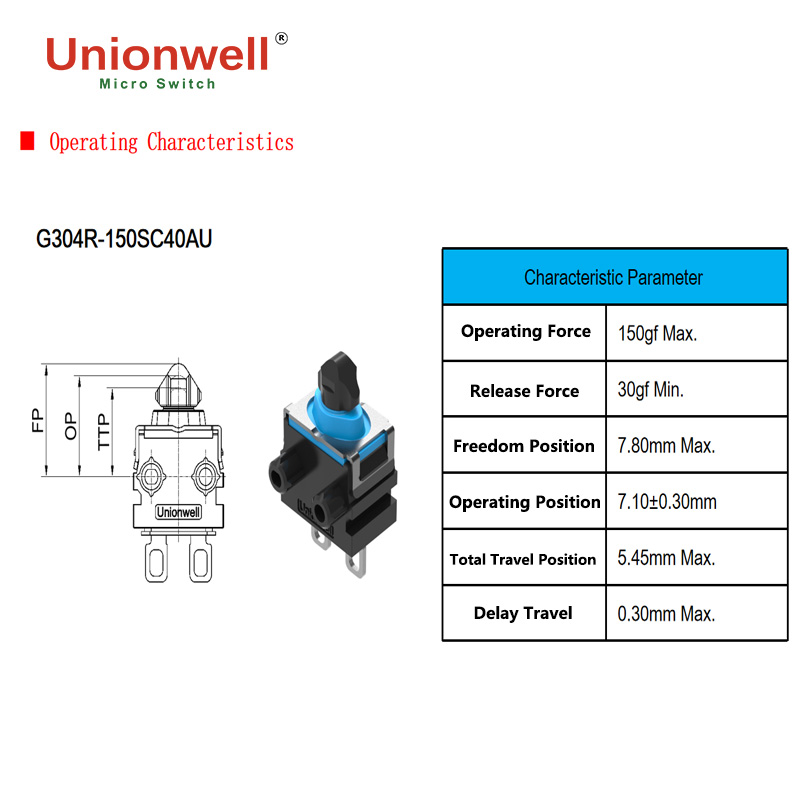

The G304R Series Sealed Sub-Miniature Micro Switch is a compact and highly waterproof micro switch, ideal for precision control applications in home appliances. Its internal highly reliable sliding clip structure maintains stable contact performance even under a maximum actuation force of 150gf, ensuring no jitter or accidental touches under light loads and frequent operation.

As a sealed micro switch, it maintains good responsiveness over a wide operating temperature range of -40℃ to +85℃ and ensures stable insulation and conduction under a maximum humidity of 95%RH (+5℃ to +35℃). In modern home appliances such as smart door locks, kitchen appliance safety sensor modules, and small motor feedback systems, the G304R series provides reliable control and detection support with its precise dimensions and stable output.

In automotive electronics applications, the G304R series, as an IP68 micro switch meeting stringent environmental requirements, maintains excellent performance even after prolonged exposure to moisture, rain, dust, vibration, and even mud and sand. Its IP68 waterproof and dustproof design makes it ideal for automotive electronic systems with extremely high sealing requirements, such as door lock detection modules, pedal position feedback, and light-load signal sensing within the vehicle. Combined with its 10~55Hz, 1.5mm dual-amplitude vibration resistance, this waterproof micro switch maintains contact stability even under high-speed driving, vehicle vibration, or harsh road conditions, preventing malfunctions or signal loss due to mechanical vibration, thus effectively improving vehicle safety and control accuracy.

As a highly reliable sealed micro switch meticulously designed by the micro switch manufacturer, the G304R series not only features reinforced structure and high sealing performance, but its compact design also allows for flexible installation in confined spaces, making it suitable for various home appliances and automotive electronic control modules. Its IP68 sealing performance further ensures continuous and stable operation in extreme environments, providing users with reliable feedback signals in high humidity, high dust, large temperature differences, and strong vibration environments. This high-performance design also makes it an ideal component for a wide range of detection, limit, and status verification systems.
