Model No: G306D series
Sealed Sub-Miniature Micro Switch G306D series
Model Number:G306D series
Protection Structure:IP67(Excluding terminals)
Max. Current:0.1A
Max. Voltage:30VAC
Product name:Sealed Sub-Miniature Micro Switch
Electrical life:200,000cycles(20 cycles/min.) DC30V 0.1A
Mechanical life:300,000cycles(30 cycles/min.) DC16V 50mA
Lever type:various Lever
Function/circuit:SPDT (or SPST-NO, NC for option)
Operating force:150gf Max.
Company assurance system:ISO9001 & TS16949
Environmental compliance:RoHS, Reach
Terminal type:Soldering terminals
Protection Structure:IP67(Excluding terminals)
Max. Current:0.1A
Max. Voltage:30VAC
Product name:Sealed Sub-Miniature Micro Switch
Electrical life:200,000cycles(20 cycles/min.) DC30V 0.1A
Mechanical life:300,000cycles(30 cycles/min.) DC16V 50mA
Lever type:various Lever
Function/circuit:SPDT (or SPST-NO, NC for option)
Operating force:150gf Max.
Company assurance system:ISO9001 & TS16949
Environmental compliance:RoHS, Reach
Terminal type:Soldering terminals
minimum order :
1000 pieces
Quantity :
Product Description
The G306D series Sealed Sub-Miniature Micro Switch is a compact and stable waterproof micro switch, particularly suitable for precision control applications in various home appliances. Thanks to its highly reliable sliding contact mechanism with clip-on contacts, this switch maintains accurate contact action even in humid, oily, or vibrating environments, reducing false triggering and poor contact issues. With a maximum operating force of 150gf, it is suitable for light-load control systems such as rice cooker safety mechanisms, air purifier detection modules, and smart home button feedback. Furthermore, the G306D boasts an IP67 waterproof and dustproof rating, classifying it as a highly sealed micro switch that effectively blocks moisture and fine dust, extending the lifespan of appliances and improving overall stability.
In the automotive electronics field, this IP67 micro switch also performs exceptionally well, widely used in door lock feedback systems, in-vehicle button controls, wiper position detection, and cabin micro-detection modules. The interior environment of a car experiences large temperature differences and frequent vibrations. The high-reliability sliding contact structure of the G306D series reduces contact jitter caused by vehicle bumps, ensuring accurate signal transmission. Its stable operation, combined with its small size, allows it to be embedded in the confined spaces of automotive micro-control systems. As a professional-grade sealed microswitch, it maintains reliable conduction during long-term vehicle operation, which is crucial for improving the safety and sensitivity of automotive electronic systems.
The G306D series also boasts significant advantages in durability. The switch supports operating temperatures of -40℃ to +85℃ and operating humidity <85%RH, adapting to extreme temperature and humidity environments. Its Electrical Service Life reaches 500,000 cycles (DC16V 50mA), and its Mechanical Service Life is even higher at 1,000,000 cycles, meeting the long-life, high-frequency operation requirements of home appliances and automotive electronics. The high-sealing structure combined with excellent environmental adaptability allows this IP67 micro switch to function stably in a variety of applications.
Overall, the G306D series is a waterproof micro switch featuring a highly sealed, long-life, and highly reliable sliding contact structure. Its excellent dust and water resistance, high stability under light loads, and flexible design make it an ideal component for home appliances and automotive electronics. This product is meticulously designed by a micro switch manufacturer to provide durable and reliable micro-motion control solutions in a variety of demanding applications.
Feature
◆ High reliability and environmental resis tance
◆ Long stroke specifications that can be easily used without an operating handle
◆ High reliability sliding contact mechanism using clamp type contacts(Compliant with IP67)
◆ Widely used in household appliances, electronic devices, automation equipment, communication equipment, automotive electronics, instrumentation, electric tools and other fields.
◆ Long stroke specifications that can be easily used without an operating handle
◆ High reliability sliding contact mechanism using clamp type contacts(Compliant with IP67)
◆ Widely used in household appliances, electronic devices, automation equipment, communication equipment, automotive electronics, instrumentation, electric tools and other fields.
Drawing
Parameter
| Operation speed | 30~500mm/s | |
| Operation frequency | 120 cycles/min. | |
| Contact Resistance(initiative) | 1Ω Max. | |
| Voltage Resistance | Between terminals | AC600V 50/60Hz 1min. |
| Between terminals and uncharged metal parts | AC1500V 50/60Hz 1min. | |
| Vibration Resistance | Vibration amplitude | 10~55Hz |
| Single amplitude | 0.75mm | |
| Service Life | Electrical | 200,000 cycles(20 cycles/min.) DC30V 0.1A 500,000 cycles(20 cycles/min.) DC16V 50mA |
| Mechanical | 1,000,000 cycles(30-60 cycles/min.) | |
| Protection Level | IP67(Without terminals) | |
| Storage Temperature | -40℃~+85℃, under 60%RH | |
| Storage Humidity | under 95% RH(+5℃~+35℃) | |

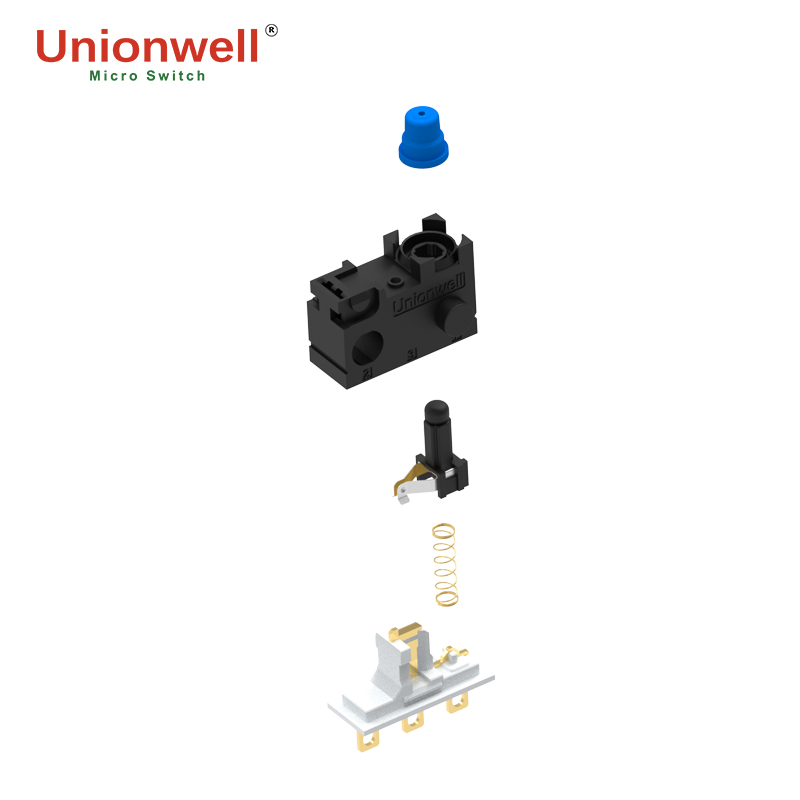

Details View
Application
As a small, highly reliable, waterproof micro switch, it is widely used in household appliances, such as safety structures in rice cookers, detection components in air purifiers, and miniature control modules in smart home devices. Its highly sealed structure effectively resists moisture and dust intrusion, maintaining stable signal transmission within the appliance.
In automotive electronics, the G306D series is suitable for low-current signal scenarios such as door lock control, in-vehicle button feedback, and cabin detection devices. Thanks to its highly reliable sliding contact mechanism with clip-on contacts, this switch maintains stable conduction even under harsh conditions such as vehicle vibration and temperature variations, reducing the risk of signal jitter and poor contact.
In automation equipment, this micro switch can be used for mechanical position feedback, light-load trigger detection, and control of small actuators. It has an IP67 waterproof and dustproof rating, capable of withstanding the challenges of moisture, oil, and dust in industrial environments. Its durable overall structure and long contact life provide accurate and reliable input signal support for automated control systems.
