Unionwell IP67 Waterproof Charging Gun Micro Switch 0.1A 5V 12V 40T85
Protection Level:IP67
Max. Current:0.1A
Max. Voltage:12VDC
LED:NO
Rating:0.1A 12VDC
Electrical life:300,000cycles
Mechanical life:300,000cycles
Function/circuit:SPST-NO
Lever type:Without lever
Operating force:150gf max
Company assurance system:ISO9001 & TS16949
Environmental compliance:RoHS, Reach
Terminal type:With wires
Color:Black
- The Unionwell G3 series mini waterproof switches are capable of withstanding currents from 0.1A to 3A and support voltages of 125/250VAC and 48VDC.
- With IP67 protection, the IP67 micro switch is designed to work stably even in harsh environments from -40°C to +85°C, ensuring reliable performance in harsh environments.
- G3 series mini waterproof switches is widely used in a variety of application scenarios such as automobiles, air conditioners, electric toothbrushes, toys and motor control
-Designed for water and dust tight(IP67)
-Small compact size
-Global safety approvals
-Long life and high reliability
-Variety of levers
-Wide range of wiring terminals
-Widely used in Automotive Electronics, Appliance and Industrial Control etc.
-Customized designs
| Place of Origin | Guangdong, China (Mainland) |
| Brand Name | Unionwell |

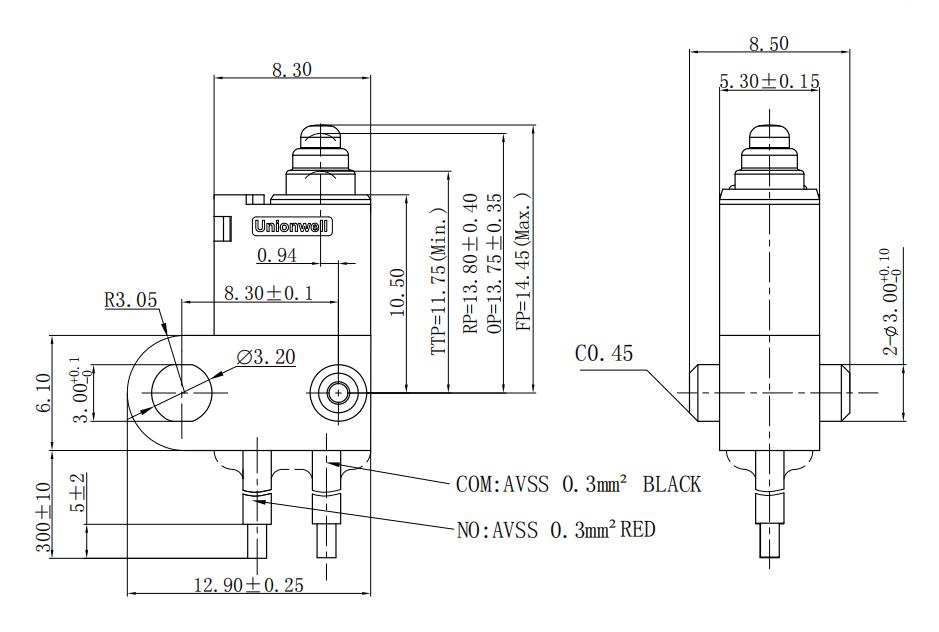

| Model Number | G304D-150AC39N00H300U |
| Operation Force | 150gf Max |
| Terminal Type | Solder Terminal |
| Circuit Code | STSP-NO |
| Shape And Posts | No Post |
| Lever Type | No Lever |
| Wire Direction | B Cover with Bottom Wire |
| Wire Length | 300mm Wire Length AVSS |
