Unionwell G19 series waterproof two-way left side car seat adjustment switch

Model Number:G19-082LRB1AB
Max. Current:8A 12VDC
Operating Temperature:-40℃~+85℃
Protection Level:IP67
Company name:Unionwell
Lever position:Far from Pin Plunger
Lever type:Simulated roller lever
Circuit Code:SPDT
Electrical life:Over 30,000 cycles
Mechanical Life:Over 50,000 cycles
Application:Automotive car seat and Instruments
Color:Black and red

minimum order :

1000 pieces

Quantity :

Contact Now

Product Description

The G19-082LRB1AB Waterproof Automotive Two-way Left Side Car Seat Adjustment Switch is a waterproof automotive seat adjustment switch designed for vehicle seat adjustment systems. Its compact design and responsive operation make it suitable for precise height and orientation adjustments of car seats. The switch supports a wide operating temperature range of -40℃ to +85℃, and boasts a mechanical lifespan of 50,000 cycles and an electrical lifespan of 30,000 cycles. It maintains stable performance even in the complex and high-frequency operating environments commonly encountered in vehicles, providing drivers and passengers with a comfortable and convenient adjustment experience.

As an IP67 two-way car seat adjustment switch, its operating lever is mounted on the left side of the switch body, making it particularly suitable for adjustment layouts located on the left side of the seat, resulting in more natural and convenient operation. The product has an IP67 waterproof and dustproof rating, maintaining reliable conductivity in humid, dusty, and temperature-fluctuating vehicle interior environments, ensuring normal operation outdoors or in high-humidity areas. This two-way adjustment structure is ideal for deployment in passenger cars, SUVs, and commercial vehicles' seat modules, providing high durability and precise control for the entire vehicle's seat control system.

Designed by a micro switch manufacturer, this product, when used as a left side car seat switch, not only supports fine-tuning for comfortable seating posture but also enhances safety, allowing drivers to quickly find the most suitable driving angle for better visibility and reduced fatigue. Its maximum operating humidity of 96% RH ensures long-term reliability even in high-humidity areas such as southern regions and coastal areas, providing stable output for in-vehicle seat adjustment devices. Overall, the G19-082LRB1AB boasts durability, excellent contact performance, and high integration, making it an ideal choice for automotive seat adjustment switches.

Feature

◆ Sealed design, IP67 protection rating, excellent environmental resistance
◆ Multiple operating lever heights available to suit different vehicle models
◆ Compact structure, enabling two-way or four-way switching
◆ Uses high-performance spring material, high switching sensitivity, and long service life
◆ Patented product, patent numbers: 202221925967.7 202210879810.3

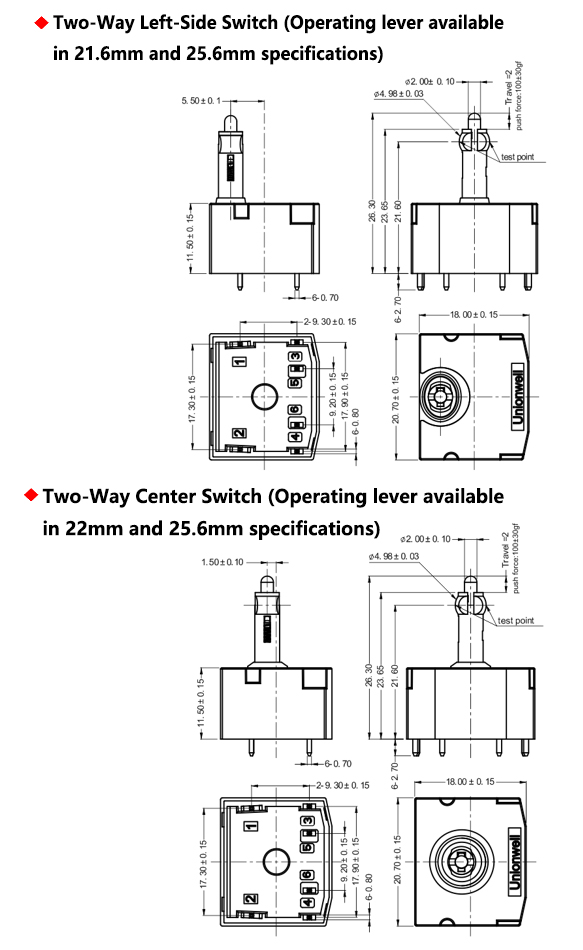

Drawing

Parameter

Rating		15A 14VDC/8A 12VDC
Permissible Operating Frequency		10 cycles/min
Initial Contact Resistance		20mΩ Max
Insulation Resistance		100MΩ Min
Withstand Voltage	Between all mutually insulated terminals	AC500V (50~60Hz), Leakage Current: 10ms, Duration: 60±5 seconds
	Between terminals and housing	AC1000V (50~60Hz),Leakage Current: 10ms, Duration: 60±5 seconds
Lifespan	Load Life	15A 14VDC 30,000 cycles
	Mechanical Life	50,000 cycles
Protection Rating		IP67 (without terminal parts)
Operating Environment Temperature		-40℃~+85℃
Operating Environment Humidity		Under 95%RH (+5~+35℃)

Details View

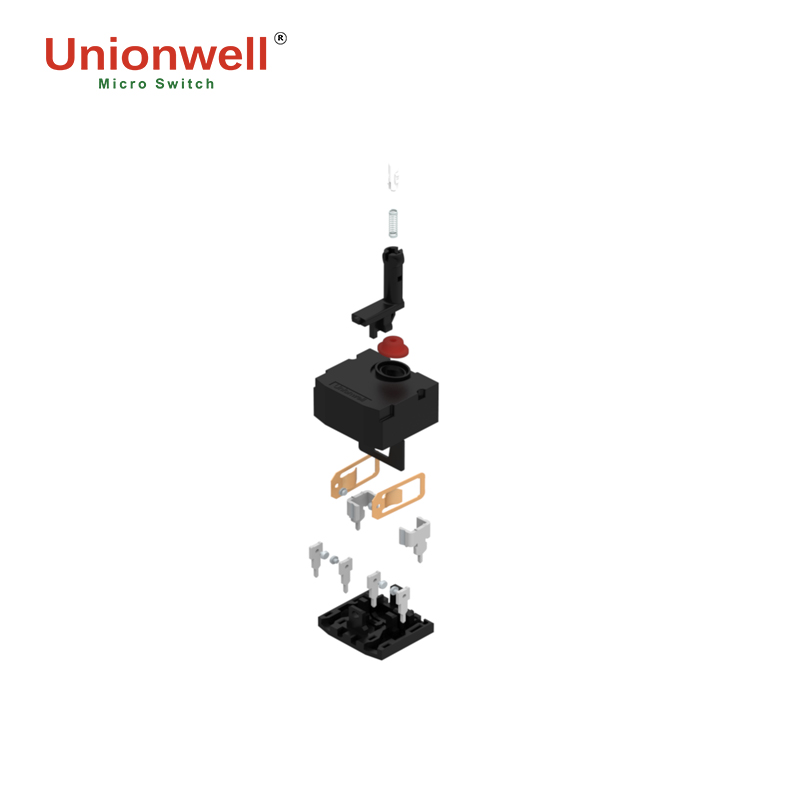

Here is a detailed image of this two-way left side switch.

two-way left side seat adjustment switch details

Application

This two-way control switch for vehicle seat adjustment systems is primarily installed on the left side of the seat. It supports directional adjustments such as height and volume, offering convenient operation and sensitive response. It is suitable for various automotive seat control structures. In the automotive industry, it helps drivers quickly find a comfortable seating position, improving driving experience and handling safety. It is widely used in seat modules of passenger cars, commercial vehicles, and new energy vehicles.

This product has an IP67 waterproof and dustproof rating, maintaining reliable performance even in humid, dusty, or high-temperature conditions. Its strong structural sealing broadens its applicability. It not only performs stably in the automotive field but is also suitable for industrial environments, such as mechanical seat adjustments and industrial control consoles, providing users with a durable, bidirectional adjustment switch.

The product features a compact design and flexible installation, suitable for integration into different equipment platforms. It maintains contact stability and reliable feedback during long-term repetitive operation, making it an ideal switching component for automotive and industrial equipment adjustment control.
