Unionwell Electronic lock mini micro switch 0.1A 3A 48V 25T85 car lock micro switch
Max. Current:0.1A~3A
Max. Voltage:125/250VAC,48VDC
Operating Temperature:-25℃~+125℃
Protection Level:IP67
Company assurance system:ISO9001 & TS16949
Environmental compliance:RoHS, Reach
Rating:3A 12VDC
Electrical life:100,000cycles
Color:Black
Mechanical life:500,000cycles
Operating force:150gf max w.o lever
Lever type:Lever&wire
Terminal type:Solder terminals
Certification:ENEC,ISO,CQC,RoHS, REACH
- The Unionwell G3 series mini waterproof switches are capable of withstanding currents from 0.1A to 3A and support voltages of 125/250VAC and 48VDC.
- With IP67 protection, the IP67 micro switch is designed to work stably even in harsh environments from -40°C to +85°C, ensuring reliable performance in harsh environments.

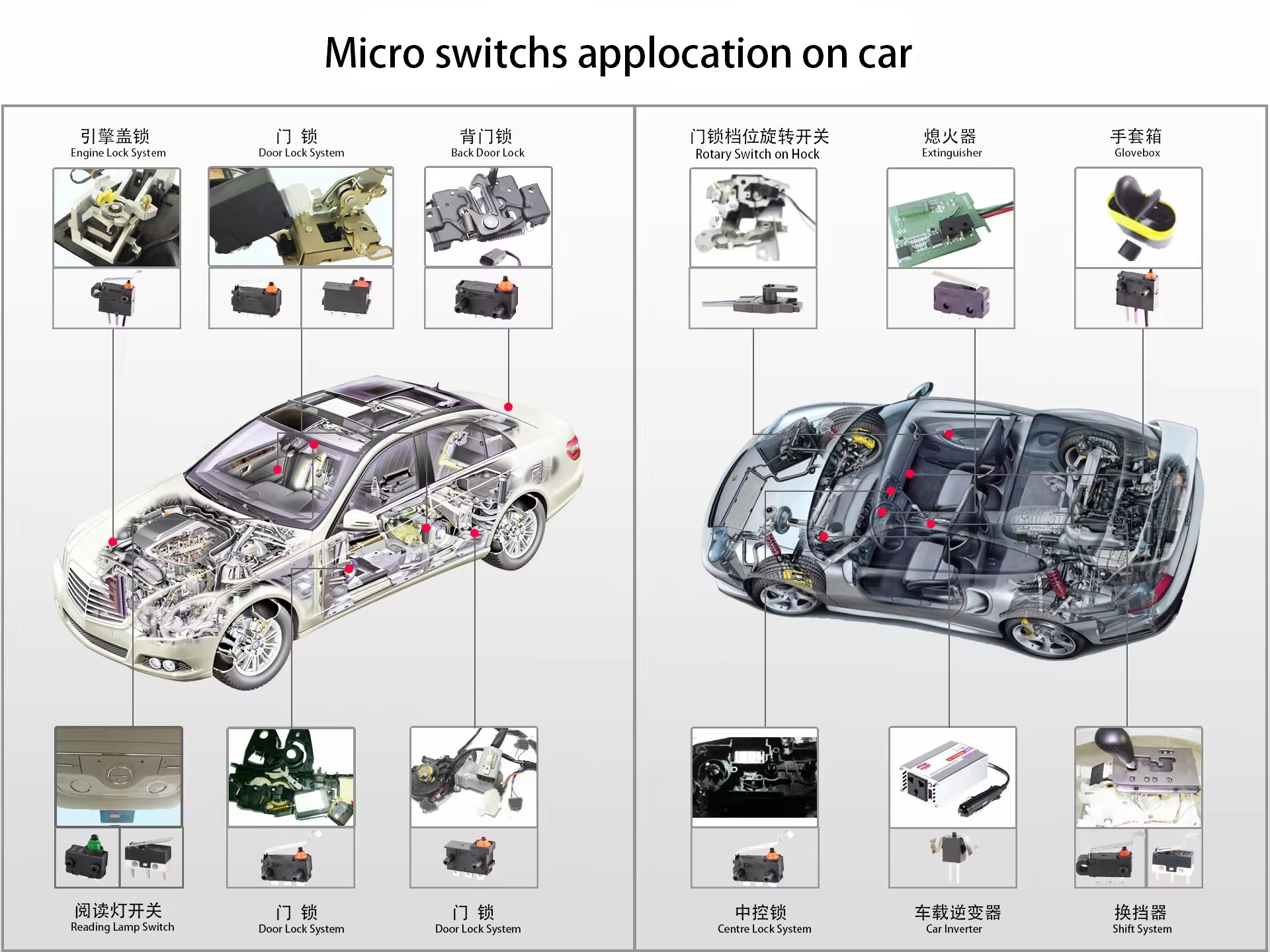

- G3 series mini waterproof switches is widely used in a variety of application scenarios such as automobiles, air conditioners, electric toothbrushes, toys and motor control.
-Designed for water and dust tight(IP67)
-Small compact size
-Global safety approvals
-Long life and high reliability
-Variety of levers
-Wide range of wiring terminals
-Widely used in Automotive Electronics, Appliance and Industrial Control etc.
-Customized designs
FAQS
Who are we?
We are based in Guangdong, China, start from 2007,sell to Domestic Market(60.00%),Southern Europe(14.00%),NorthAmerica(13.00%),Southeast Asia(8.00%),Western Europe(3.00%),Northern Europe(2.00%). There are total about 301-500 people in our office.
How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment.
What can you buy from us?
We have a wide range of products and a large amount of stock in stock, such as Micro Switch; Automotive switches; Waterproof switches; Pressure switches; Mechanical keyboard switches.With independent research and development laboratory, we can provide customized services according to your needs.
Why should you buy from us not from other suppliers?
Factory ISO9001 & IATF16949 qualified Products are produced & tested by automatics;
Own team designed and assembled automatic machines ;
Awarded as National Innovative Technology ;
Company authorized over 100 Patents.
What services can we provide?
Accepted Delivery Terms: FOB,EXW,FCA,Express Delivery;
Accepted Payment Currency: USD, HKD, CNY;
Accepted Payment Type: T/T,Western Union,Cash;
Language Spoken:English,Chinese.
