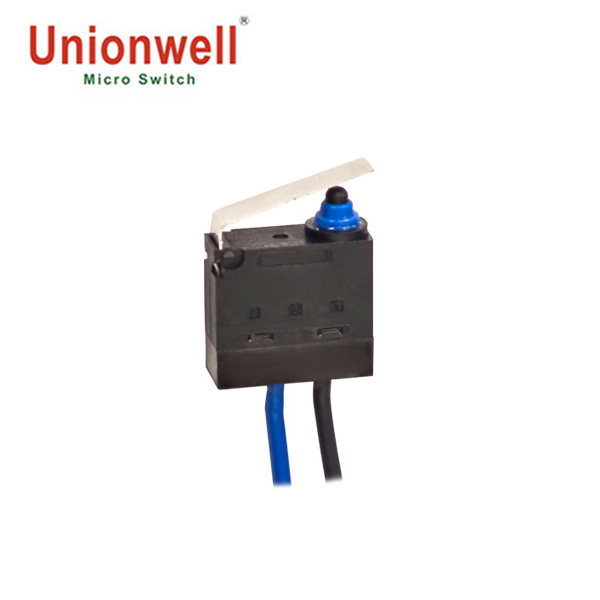

Unionwell Charging Gun 2 pin with Waterproof Micro Switch 0.1A 3A 125V
Max. Current:3A
Max. Voltage:250V
Operating Temperature:-40℃ - + 85℃
Protection Level:IP67
IP level:ip67
Plunger type::Pin plunger or straight lever
Electrical life::100,000cycles
Applications::Equipment, lift, auto electronics,industry,auto machines.
Operating Temperature::-40℃ - + 85℃
Function::SPDT
Opearting force::130gf max without lever
Mechanical Life::500,0000 Cycles
Certification:ENEC,CQC
Application:Car
Rating:3A/12VDC
-Designed for water and dust tight(IP67)
-Small compact size
-Global safety approvals
-Long life and high reliability
-Variety of levers
-Wide range of wiring terminals
-Widely used in Automotive Electronics, Appliance and Industrial Control etc.
-Customized designs
| Rating | 0.1A,125/250VAC;3A/12VDC;0.1A/48VDC;μ1E5 | |
| Operating Frequency | Electrical | 0.1A,120 cycles/min 3A,10~30 cycles/min |
| Mechanical | 120 cycles/min | |
| Contact Resistance (Initiative) | 100mΩ Max.(without wire type) | |
| Insulation Resistance (at 500VDC) | 100MΩ Min. | |
| Vbration Durability | 10~55Hz,move 0.75mm(p-p) | |
| Dielectric Strength | 500VAC(50~60Hz) | |
| Operating Temperature | -40℃~+85℃ | |
| Operating Humidity | 85%RH Max | |
| Service Life | Electrical | Min.100,000 cycles (Depend on part NO.) |
| Mechanical | Min.500,000 cycles | |
1.pact out: 1200pcs/CTN
2.Gross Weight: about 10.8KG/CTN
