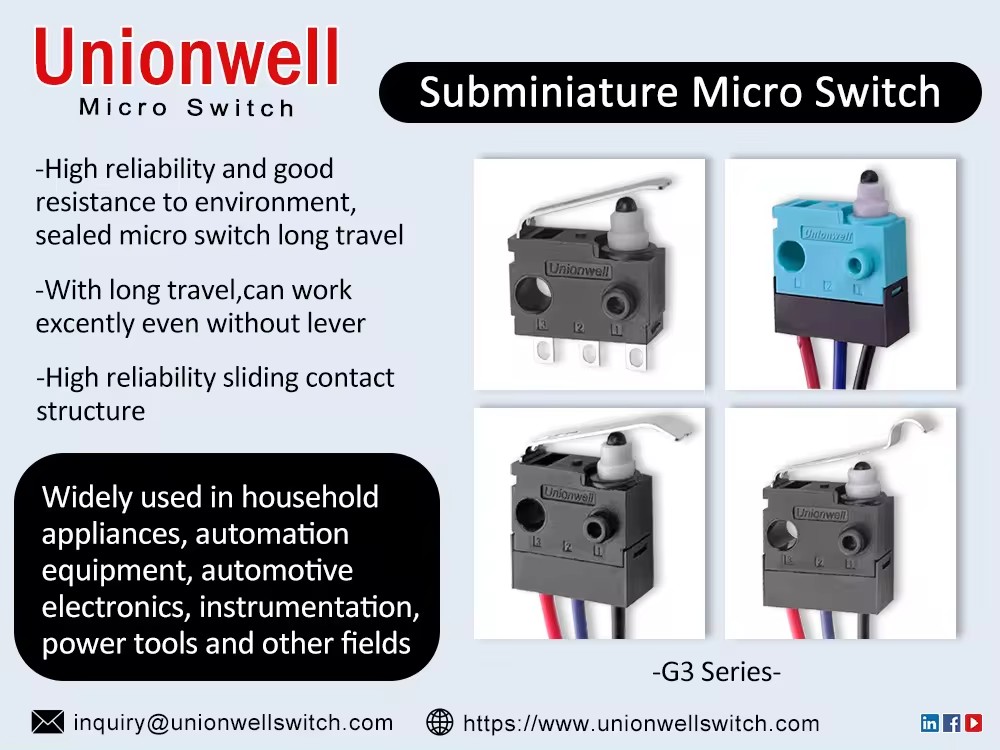

Unionwell 40T85 Push Button Auto Electronics Door Lock Waterproof Micro Switches
Max. Current:3A
Max. Voltage:250V
Operating Temperature:-40℃~+85℃
Protection Level:IP67
IP level:IP67
Electrical Life:30,000cycles
Mechanical Life:30,000cycles
Function/Circuit:SPDT (or SPST-NO, NC for option)
Lever Type:Straight Lever
Operating Force:150gf max
Terminal Type:Solder Terminal, PCB Terminal, etc
Certification:Rosh Reach
Application:Home Appliance
Product Name:Micro Swich
Rating:3A 250VAC
The micro switch has IP67 rated protection, which is able to resist dust and water for a short time. This makes it stable in a wide range of harsh environments, making it ideal for applications that require a high degree of protection.
A variety of function options
SPDT (Single Pole Double Throw) circuitry is available, and users can also choose between SPST-NO or SPST-NC (Single Pole Single Throw-Normally Open or Normally Closed) configurations to suit different application needs.
Multiple terminal types
The G306-150S08AB-T001U micro switch provides a variety of terminal type options, including solder terminals and PCB terminals, which are convenient for users to use in different installation environments.
High reliability
With an electrical and mechanical life of 30,000 cycles, it ensures high reliability in long-term use and reduces the frequency of maintenance and replacement.G306-150S08AB-T001 Umini micro switch is widely used in various household appliances, such as microwave ovens, refrigerators, washing machines, etc. Unionwell has been focusing on micro switch development for more than 30 years, producing high-quality and high-sensitivity automotive micro switches, push button switches, home appliance micro switches, etc., we sincerely provide you with high-quality micro switch options.
-Designed for water and dust tight(IP67)
-Small compact size
-Global safety approvals
-Long life and high reliability
-Variety of levers
-Wide range of wiring terminals
-Widely used in Automotive Electronics, Appliance and Industrial Control etc.
-Customized designs
| Operating Speed | 1~500mm/s | |
| Operating Frequency | 120 cycles/min | |
| Insulation Resistance | ≥100MΩ(at 500VDC) | |
| Contact Resistance (Initiative) | With Terminals Type | ≤100MΩ |
| With Wire Type | ≤500MΩ(Stand Wire Length 300mm) | |
| VoltageResistance | Between Terminals | AC500V,50/60Hz,1min |
| Between Terminals Uncharged Metal Parts | AC1000V,50/60Hz,1min | |
| Vbration Durability | No Transformation Action | 10-55Hz(Double Amplitude 1.5mm) |
| Service Life | Electrical | 300,000 cycles(20 cycle/min) DC300V 0.1A DC14V 10mA |
| Mechanical | 300,000 cycles(30cycles/min)IEC IP67(Exclude Terminals) | |
| Protection Level | IEC IP67(Exclude Terminals) | |
| Operating Temperature | <-40~+85°C 60%RH | |
| Operating Humidity | <90%RH(+5~35°C) | |
