Model No: G303-130E01C7-FAU

Sealed Micro Switch for Electrical Push Button 0.1A 3A 12V 48VDC

Model Number:G303-130E01C7-FAU
Protection Level:IP67
Max. Current:3A
Max. Voltage:380V
LED:NO
Rating:3A 125/250VAC
Electrical life:50,000cycles
Mechanical life:1,000,000cycles
Function/circuit:SPDT (or SPST-NO, NC for option)
Lever type:Straight lever
Operating force:50gf max w/ lever (light or heavy for option)
Company assurance system:ISO9001 & TS16949
Environmental compliance:RoHS, Reach
Terminal type:Solder terminals (other types for option)
Color:Black
Quantity :
Contact Now
Product Description

  •  The Unionwell G3 series mini waterproof switches are capable of withstanding currents from 0.1A to 3A and support voltages of 125/250VAC and 48VDC.
  • With IP67 protection, the IP67 micro switch is designed to work stably even in harsh environments from -40°C to +85°C, ensuring reliable performance in harsh environments.
  • G3 series mini waterproof switches is widely used in a variety of application scenarios such as automobiles, air conditioners, electric toothbrushes, toys and motor control.

Feature
-Designed for water and dust tight(IP67)
-Small compact size
-Global safety approvals
-Long life and high reliability
-Variety of levers
-Wide range of wiring terminals
-Widely used in Automotive Electronics, Appliance and Industrial Control etc.
-Customized designs


Parameter

Rating
0.1A /125VAC; 3A/ 12VDC ; 0.1A /250VAC; 0.1A/ 48VDC u 1E5.
Operating Frequency
Electrical
0.1A-120/3A-10~30 cycles/minute
Mechanical
120 cycles/minute
Contact Resistance(Initiative)
100mΩ Max
Insulation Resistance(at 500VDC)
100MΩ Min
Vibration durability
10~55Hz, move 0.75mm(p-p)
Dielectric Strength
500VAC (50~60Hz)
Storage Temperature
-40℃-+85℃
Storage Humidity
85% RH Max
Service Life
Electrical
6,000~500,000/cycles(Depend on part number)
Mechanical
Min.500,000/cycles

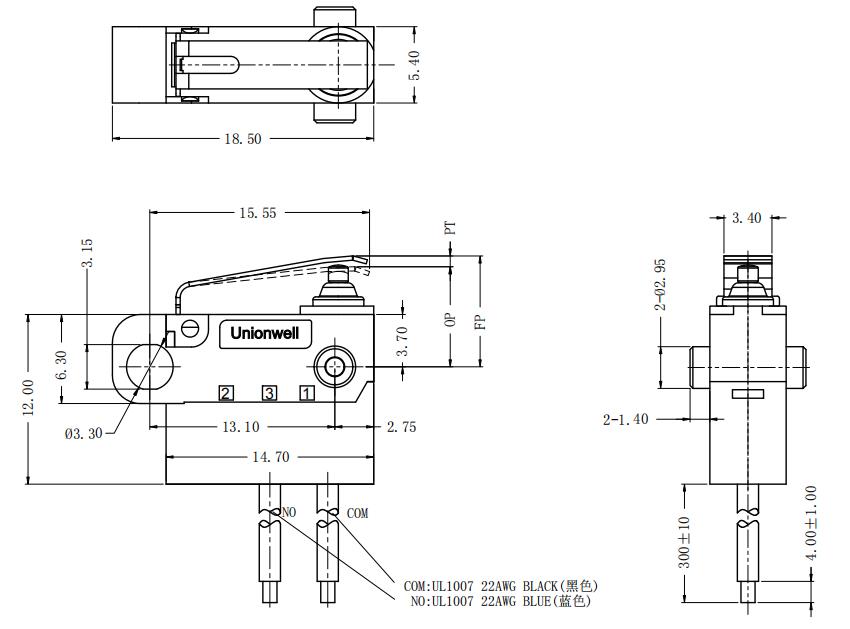

Drawing
sealed micro switch drawing

Application

sealed micro switch application
