toys micro switch
toys micro switch
micro switch
Model No: G303-130E00A7-GFU

Microswitch Manufacturer Water and Dust IP67 Micro Switch For Toys 0.1A 3A 5A 40T85 125/250VAC

Model Number:G303-130E00A7-GFU
Max. Current:3A
Max. Voltage:250VAC
Operating Temperature:-25~+80C
Protection Level:IP67
IP level:IP67
Application:Auto Electronics
Rating:0.1A-3A
Product Name:Micro Swich
Color:Black
Mechanical Life:120/cycles/minute
Electrical life:0.1A-120 cycles, 3A-10~30 cycles minute
Insulation Resistance:100m
Contact Resistance:100m Max
Keyword:Micro Switch
Material:Plastic
Quantity :
Contact Now
Product Description

  •  The Unionwell G3 series mini waterproof switches are capable of withstanding currents from 0.1A to 3A and support voltages of 125/250VAC and 48VDC.
  • With IP67 protection, the IP67 micro switch is designed to work stably even in harsh environments from -40°C to +85°C, ensuring reliable performance in harsh environments.
  • G3 series mini waterproof switches is widely used in a variety of application scenarios such as automobiles, air conditioners, electric toothbrushes, toys and motor control.

Feature

Rating：0.1A /125VAC; 3A/ 12VDC ; 0.1A /250VAC; 0.1A/ 48VDC u 1E5.Operating
FrequencyElectrical: 0.1A-120/3A-10~30 cycles/minute
Operating FrequencyMechanical:120 cycles/minute
Contact Resistance(Initiative): 100mΩ Max
Insulation Resistance(at 500VDC): 100MΩ Min
Vibration durability: 10~55Hz, move 0.75mm(p-p)
Dielectric Strength： 500VAC (50~60Hz)
Storage Temperature： -40℃-+85℃
Storage Humidity： 85% RH Max
Service LifeElectrical：6,000~500,000/cycles(Depend on part number)
ServiceMechanical：Min.500,000/cycles

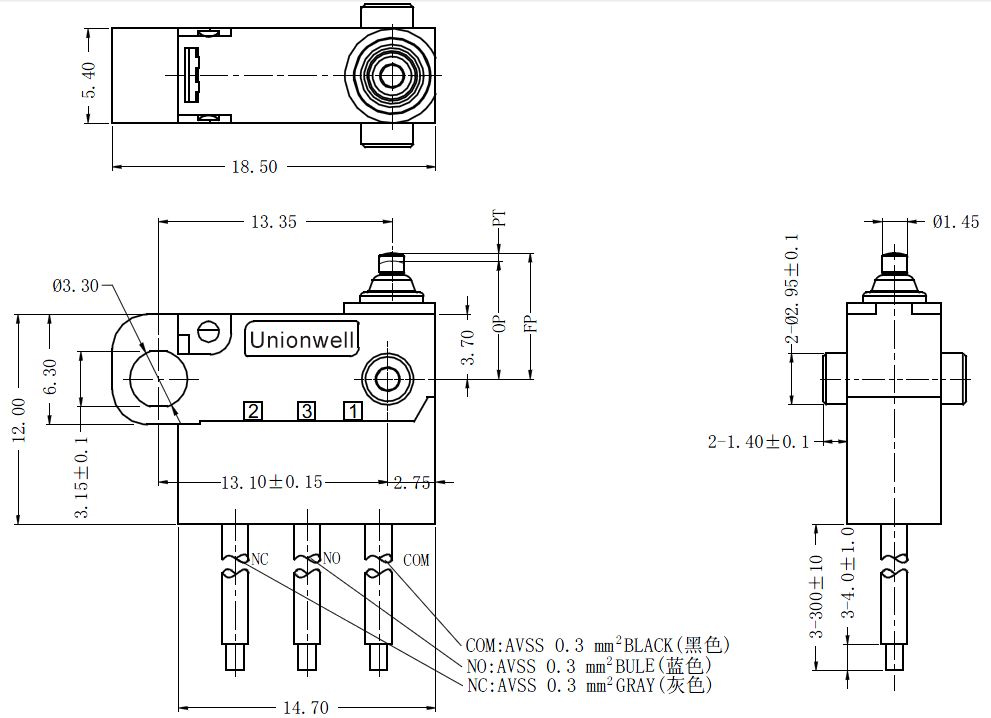

Drawing
sealed micro switch drawing

Application

sealed micro switch application
