Unionwell Subminiature Micro Switch For Home Appliance 1A 3A 125VAC

Model Number:G10 Series Subminiature Micro Switch
Max. Current:3A
Max. Voltage:125VAC
Operating Temperature:40T85
Product Name:G10 Series Subminiature Micro Switch
Electrical Rating:0.1A 48VDC/125VAC;1A/3A 125VAC
Electrical Operating Frequency:10~30 cycles/minute
Mechanical Operating Frequency:120 cycles/minute
Insulation Resistance:At 500VDC, 100M Ω Min
Storage Temperature:-40 ℃ ~ +85℃
Lever Type:Straight/leaf/simulated roller
Electrical Service Lifre:10,000~50,000 cycles(Depends on P/Ns))
Mechanical Service Life:1,000,000cycles optional
Certification:ENEC, CE, CQC

Quantity :

Contact Now

Product Description

TheSubminiature Micro Switch for Home Appliances is a compact, reliable switching device widely used in various home appliances.
As a subminiature micro switch, it provides sensitive control in confined spaces, making it particularly suitable for size-critical designs. Its operating temperature range is -40°C to 85°C, ensuring stable performance in diverse climates and environments.

With an electrical lifespan exceeding 10,000 cycles and a mechanical lifespan exceeding 1,000,000 cycles, this micro switch for home appliances maintains reliable operation even in high-frequency operation, reducing maintenance and replacement frequency. Furthermore, its snap action micro switch feature provides sensitive triggering and clear feedback, ensuring fast and stable circuit switching for your device.

Thanks to its compact design, high reliability, and long life, this micro switch is widely used in household appliances such as microwave ovens, air conditioners, refrigerators, washing machines, and rice cookers. For example, two G10 series micro switches are used in fingerprint locks, primarily responsible for the security system. If the door lock is damaged, the micro switches trigger a high-decibel sound.

Micro switches for home appliances provided by micro switch companies offer users a safe, efficient, and convenient operation experience, and are an indispensable core component of modern home appliances.

Application

◆Small size and compact structure
◆Long life and high reliability
◆Complete terminal range
◆Equipped with various operating handles
◆Widely used in home appliances and industrial control fields

Parameter

Rating	P1	ENEC/CQC: 0.1A 48VDC/125VAC
		UL/cUL: 0.1A 48VDC/125VAC
	3	ENEC/CQC: 1A/3A 125VAC
		UL/cUL: 1A/3A 125VAC
operating frequency	Electrical	10~30 cycles/min
	Mechanical	120 cycles/min
Contact resistance (initial value)		100mΩ Max（Depends on the type）
Insulation Resistance		100mΩ Min （at 500VDC）
Dielectric strength	Between terminals	600VAC 50~60Hz for 1 Min.
	Terminals and housing	1000 VAC 50~60Hz for 1 Min.
operating temperature		-40℃~+85℃
operating humidity		85%RH Max
lifespan	Electrical	10,000/50,000 cycles(Depends on the type)
	Mechanical	1,000,000 cycles
Unit weight		about 0.5g

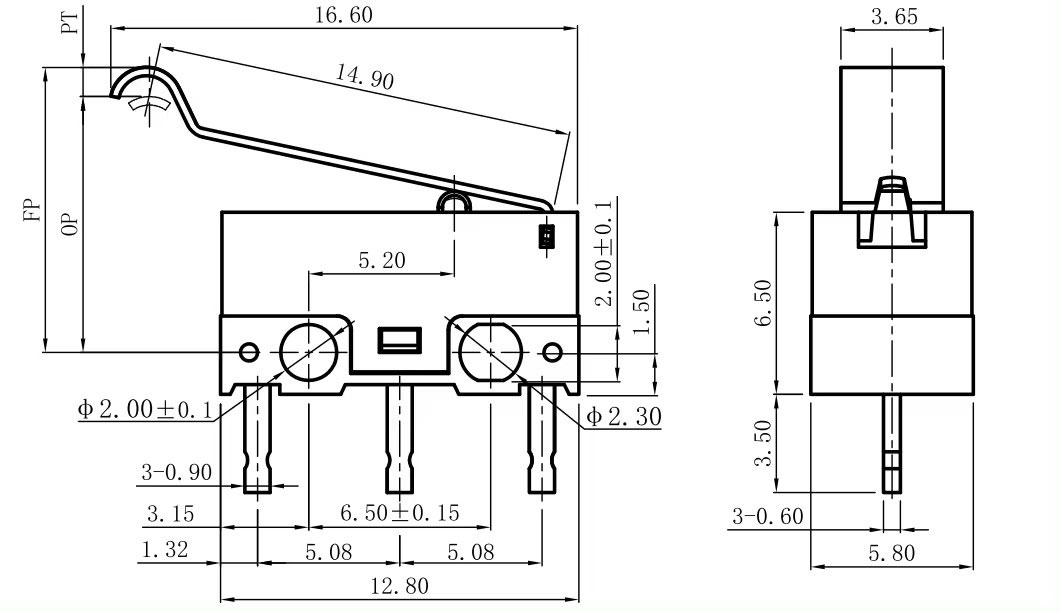

Drawing

Application

The Subminiature Micro Switch for Home Appliances has a wide range of applications across various home appliances.

As a miniaturized subminiature micro switch, it's commonly used for door detection in microwave ovens to ensure safe startup; damper position and compressor control in air conditioners; lighting control and cooling system switching in refrigerators; and water level and lid detection in washing machines.

Furthermore, thanks to its snap-action triggering properties, this micro switch for home appliances can also be used in appliances like rice cookers and electric kettles, providing safe, precise, and reliable control and protection for home appliances.
