Pefessional Micro Switch Supplier Unionwell snap action wireless micro switch for mouse 12v
Max. Current:0.1A~3A
Max. Voltage:125/250VAC,48VDC
Operating Temperature:40 ~+85
Protection Level:IP00
Electrical life:60,000 ~ 100,000cycles (Depend on Part No.)
Mechanical life:1,000,000cycles
Operating force:300gf max w.o lever
Terminal:Various terminals
Function:SPDT
Lever type:various Lever
Application:Auto Electronics,Air conditioner,communication,tooth brush,toys etc
ralated words:micro limit switch microactive switch push button micro switch
- Place of Origin:Guangdong, China
- Brand Name:Unionwell
- Model Number:G10 series
- Max. Current:0.1A~3A
- Max. Voltage:125/250VAC,48VDC
- Operating Temperature:40 ~+85
- Protection Level:IP00
- Electrical life:60,000 ~ 100,000cycles (Depend on Part No.)
- Mechanical life:1,000,000cycles
- Operating force:300gf max w.o lever
- Terminal:Various terminals
- Function:SPDT
- Lever type:various Lever
- Application:Auto Electronics,Air conditioner,communication,tooth brush,toys etc
- ralated words:micro limit switch microactive switch push button micro switch
The function of G10 series wireless micro switch is SPDT (Single Pole Double Throw) ,it ensures versatile circuit control with a high electrical rating of up to 3A, 250VAC. Optimized for wireless and compact applications.
As a wireless micro switch can seamless integration into wireless control systems and IoT devices. Its compact design saving the space footprint for electronics,such as mouse, electric knife, walkie talkie,etc.
As a snap action micro switch, the G10 series have various customizable levers and terminals, for exsmple, solder, PCB, snap action, for tailored solutions. Most important，our products meet international safety and performance standards.
Feature
-Small compact size
-Global safety approvals
-Long life and high reliability
-Variety of actuator and terminals
-High rating to 10(2)A, 1/4HP
-Customized Designs
-Widely used in Auto control, Appliance control and Industrial Control etc.

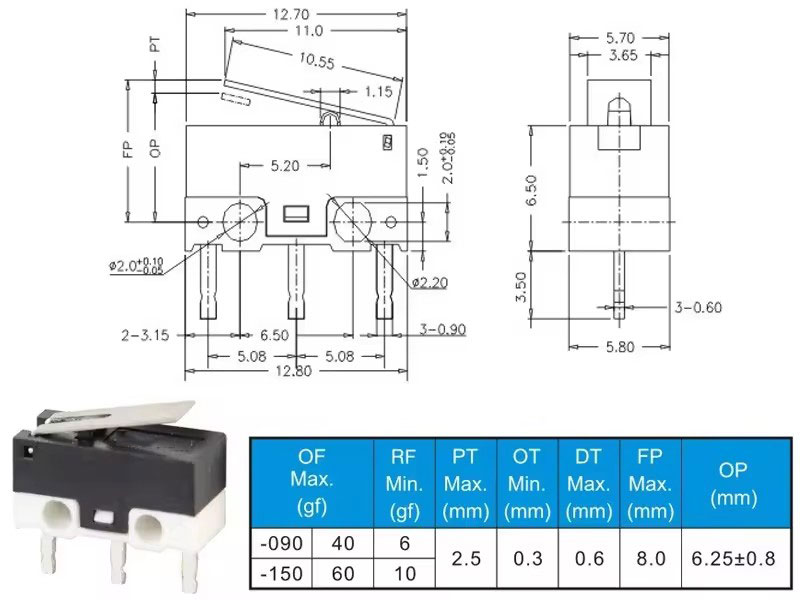

Drawing
| Rating | P1 | 0.1A 48VDC/125VAC (Gold plated optional) | ||||||||
| 03 | 1A/3A 125VAC | |||||||||
| Operation Frequency |
| 10~30cycles/min | ||||||||
| Mechanical | 120cycles/min | |||||||||
Contact Resistance(Initial Value) | 100mΩ Max(Depends on P/Ns) | |||||||||
| Insulation Resistance | 500VDCAt 500VDC,100MΩ Min. | |||||||||
| Dielectric Strength | AC 600V RMS (50-60Hz) | |||||||||
| Storage Temperature | -40°C~+85°C | |||||||||
| Storage Humidity | 85%RH Max | |||||||||
| Service Life | Electrical | 6,000~50,000 cycles(Depends on P/Ns) | ||||||||
| Mechanical | 1,000,000 cycles | |||||||||
| Weight | About 0.5g(Straight PCB type without lever) | |||||||||
| Material | Gold plated/Silver Plated/Ag Contact | |||||||||
Wireless IoT Devices: Used in wireless micro switch modules for smart home systems (e.g., remote-controlled lighting, security sensors).
Portable Electronics: Integrates into small compact size designs like electric toothbrushes, wearable gadgets, and wireless toys, phone, game controller due to its lightweight and durability.
Automotive Control Systems: Reliable SPDT switching for car door sensors, dashboard controls, and battery management systems.
Industrial Automation: Deployed in compact machinery, limit switches, and communication equipment requiring high-cycle reliability.
