Model No: GT02 series

Unionwell GT02 Series Brown Switch Mechanical Keyboard 4mm

Model Number:GT02 series
Max. Current:10mA
Max. Voltage:12V DC/AC
Operating Temperature:-40℃~+85℃
Product name:desk top computer game keyboard switch with color light keyswitch
Electrical life :over 80,000,000 cycles（Load）
Mechanical life: Over 1,000,000,000 cycles
Operating force:60±20gf or 80±25gf
Mount pin:with or without
Function:SPST-NO
Application:computer keyboard, cash registers
minimum order :
1 piece
Quantity :
Contact Now
Product Description

The Brown Switch mechanical keyboard, designed by a micro switch manufacturer, is designed to meet the needs of users who often require a comfortable and stable key switch for daily typing or gaming. It features a tabletop configuration with a 0.60"(15.2mm) PCB distance (excluding keycaps), making it easy to install and suitable for a variety of keyboard layouts. It also supports three different actuation feel options: smooth, tactile, and clicky, meeting users' diverse typing needs.
The lifespan of a mechanical keyboard switch is a key quality criterion. The GT02 series switches are designed to last up to 100 million cycles, ensuring stable performance and a consistent typing experience even with intense use. Furthermore, it is compatible with either PCB pin or frame mounting methods and offers LED, diode, or trigger options, greatly enhancing design flexibility and adapting to various keyboard circuits and backlighting schemes.
As a keyboard switch for gaming, its electrical performance is also outstanding. It operates stably at a maximum of 12V AC/DC with a rated current of 10mA and features An insulation resistance of <100MΩ (at 100VDC) ensures safety and reliability in complex circuit environments. These electrical parameters ensure not only precise and efficient input response, but also high stability over long-term use.
In summary, the GT02 Series Brown Switch Mechanical Keyboard 4mm, with its flexible configurations, diverse actuation options, excellent durability, and reliable electrical characteristics, is an ideal choice for users with high-frequency typing and long-term use, providing a longer-lasting, more comfortable keyboard experience.

Feature
◆Tabletop configuration, 0.60"(15.2mm) from PCB (without keycaps)
◆ Tactile feel options: smooth, tactile, clicky
◆ PCB pin or frame
◆ Lifespan up to 100 million cycles
◆ LED, diode, or tripping options available
◆ Maximum 12V AC/DC
◆ Rated current: 10mA
◆Insulation resistance <100MΩ (at 100VDC)

Parameter

Electrical characteristicsRated load 12VDC/AC max. 10mA AC/DC max
Contact resistance 200mΩ Max (25mΩ typical)(Initial value)
Insulation resistance 100mΩ Min
Withstand voltage AC 500V(50-60Hz) 1 Minute
Electrical lifespan Over 80,000,000 cycles (Load)
Bounce Time The operating speed is 400mm/s 5 msec
Characteristic parametersOperating force See Detail Spec
Travel 2.0±0.6mm
Full stroke 4.0±0.4mm
Mechanical life More than 100 million times (under no load)
Operating environment temperature -40℃~+80℃
Operating environment humidity ≤85%RH

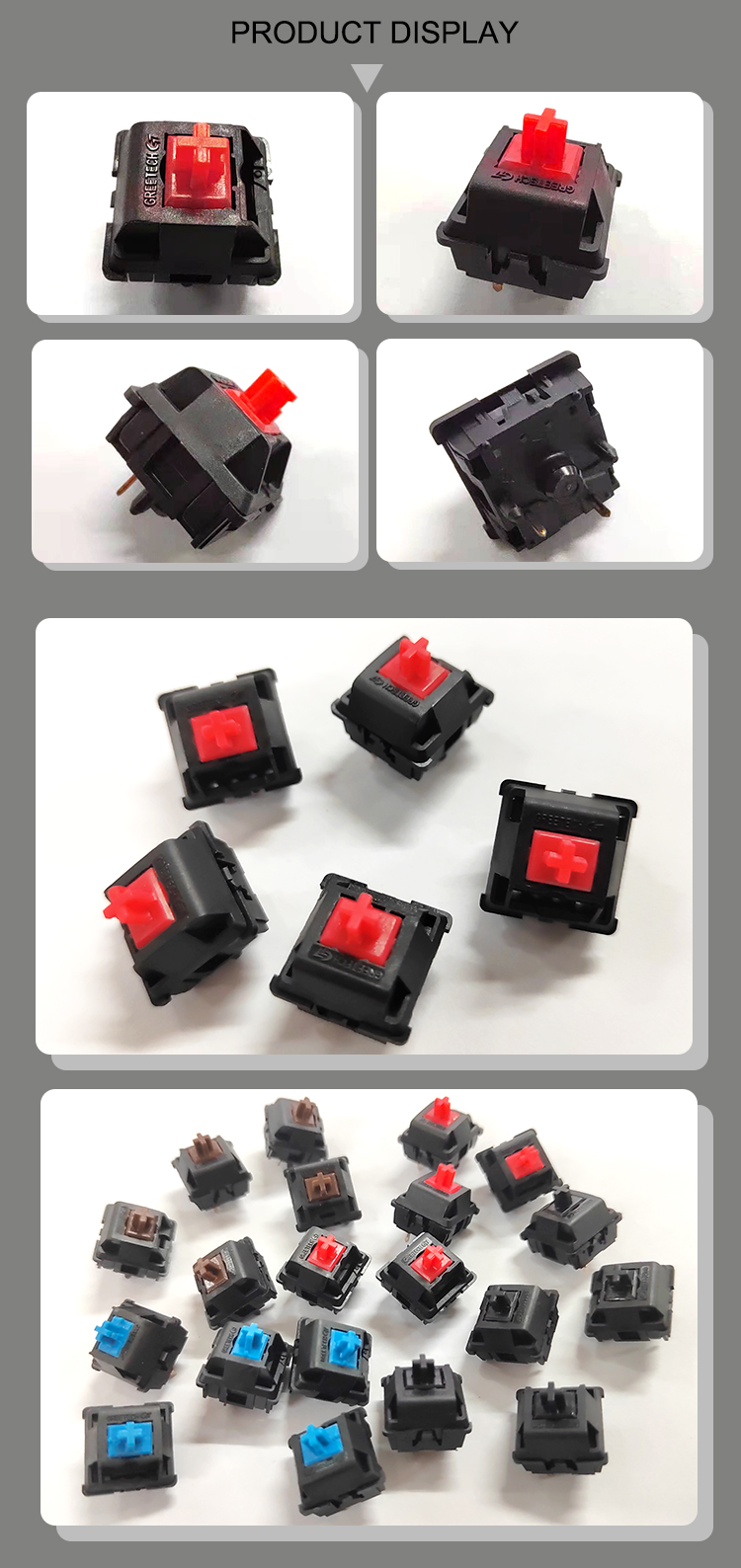

Keyboard Details view

In this view, you can see:
Black base with transparent cover: This material ensures stability and durability, effectively reducing friction and improving key travel, making each keypress feel effortless and comfortable, while avoiding excessive force and keyboard noise.

Multiple color keys: Different color keys allow users to customize the tactile feel of their keyboard switch, enhancing user experience.

PCB pins: Metal pins ensure signal flow and smooth electrical connections. They are often plated with gold or other corrosion-resistant materials to extend life and maintain connection stability.Components such as IC headers make it easier to replace or test ICs.

mechanical keyboard switch display

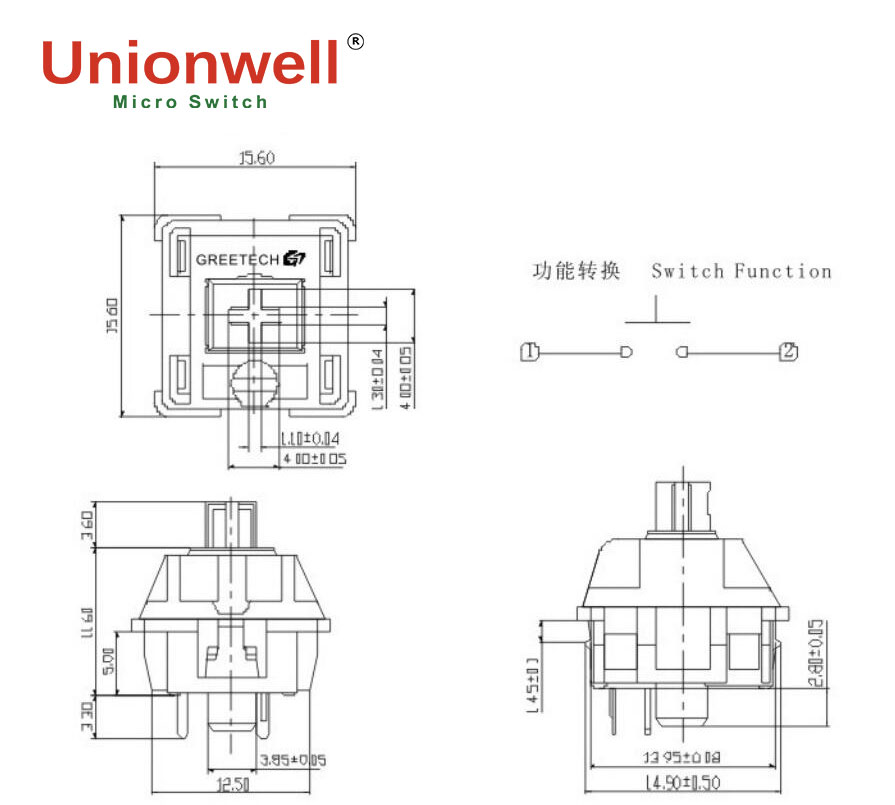

Drawing

keyboard switch details drawing

Application

The GT02 series of mechanical keyboard switches are primarily used in computer keyboards, but they can also be used in currency counters, machine interface devices, and other industrial equipment.
Their gentle, instantaneous actuation provides a more comfortable feel for computer keyboards, making them an ideal choice for office use.
