Model No: GT02

Unionwell Keyboard Mechanical Switches 4mm Travel 12VDC/AC

Model Number:GT02
Max. Current:10A
Max. Voltage:12V
LED:NO
Product name:Mechanical keyboard switch
Rating:12VDC/AC Max, 10mA AC/DC Max
Contact Material:Au Alloy
Electrical life:over 50,000,000 cycles (Load )
Ambient Humidity:<85%RH
Operating Temperature Range:-45℃-+80℃
Pre-travel:2.0±0.6mm
Total travel:4.0±0.4mm
minimum order :
1 piece
Quantity :
Contact Now

Product Description


 Mechanical keyboard switches are an important component of mechanical keyboards, which are used in scenarios where frequent presses are smooth. Its passage sense and smooth feel are loved by office white-collar workers and game enthusiasts. The Mechanical Keyboard Blue Switch, on the other hand, has a strong sense of passage and a crisp sound, making it especially suitable for workers who type for a long time. This mechanical keyboard switch is a well-known keyboard partner for its responsiveness, fast rebound and a lifespan of more than 50 million times.
As a specialized micro switch manufacturer, Unionwell not only produces mechanical keyboard switches, also produces inductive mechanical keyboard switches which leverage bi-directional active sensing technology, detects micron-level key displacements through changes in magnetic flux.

Features:

- Desktop profile,0.60 inch(15.2mm)from PCB(no keycap)

- Choice of feel: linear,soft tactile,click tactile



- PCB or frame mount



- Long life 50 million operations



- LED,diode or jumper option



- 12V maximum AC/DC



- Current Rating: 10mA



- Insulation Resistance:<100M Ω at 100V DC

Parameters:

Rating12VDC/AC max.10ma AC/DC max
TravePre-trave2.0+/-0.6mm
Total-trave4.0+/-0.4mm
Contact Resistance(Initiative)200mΩMax
Insulation Resistance100MΩMin
Voltage Resistance10~55Hz, move 0.75mm(p-p)
Dielectric StrengthAC100V (50-60HZ) 1 Minute
Operating Temperature-40℃-+85℃
Storage Humidity85% RH Max
Service LifeElectricalover 50,000,000 cycles (Load )
Mechanicalover 50,000,000 cycles (No Load )

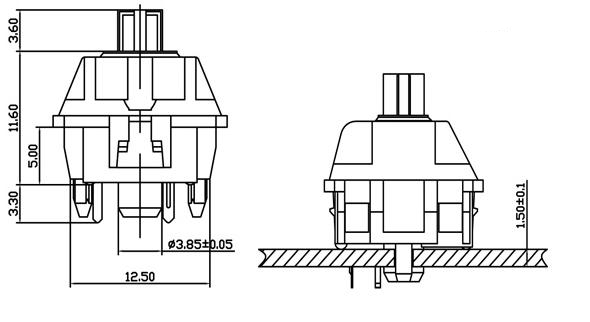

Drawing:

Advantages of  Keyboard Mechanical Switches

Durability: Keyboard mechanical switches are rated for 50 million keystrokes, far exceeding membrane keyboards.   Individual switches resist wear, ensuring a longer lifespan.

Customization: Keyboard Mechanical switch types options like linear, tactile, or clicky cater to typing, gaming, or personal preference.

Tactile & Audible Feedback: Mechanical Tactile switches provide a physical bump, while mechanical clicky switches offer audible confirmation, improving typing accuracy and rhythm by signaling actuation.

Responsiveness: Keyboard mechanical switch Faster startup and reset times, improving performance when playing games and typing.

Consistent Performance:Uniform feel across all switch, even after heavy use, unlike membrane keyboards where domes wear unevenly.  Also consistent keystrokes and reduced bottom-out force minimize finger strain during prolonged use.
