Model No: SWP-SEL-01

Unionwell 0.25A Light Switch for Refrigerator Sensitive Micro Switch

Model Number:SWP-SEL-01
Operating Temperature:-25 ℃ ~ +60 ℃
Storage Temperature:-10 ℃ ~ +45℃
Max. Current:5A, 0.25A, 0.5A
Max. Voltage:250VAC , 24VDC
Electrical Operating Frequency：10~30 cycles/minute
Mechanical Operating Frequency:120 cycles/minute
Mechanical Service Life:200,000 cycles
Electrical Service Lifre:100,000 cycles
Storage Humidity:10% ~ 85%
Certification:ENEC,ISO,CQC,RoHS, REACH
minimum order :
1 piece
Quantity :
Contact Now

Product Description


This micro switch primarily controls the light on and off when the refrigerator door is open. When the door is opened, the switch is triggered, instantly activating the interior light, providing clear, bright illumination and easy viewing of the refrigerator interior. When the door is closed, the switch automatically disconnects the current, turning off the light, saving energy and extending the life of the appliance. This precise triggering mechanism ensures a seamless and efficient user experience.

Thisrefrigerator door light switch boasts an exceptional mechanical service life of 200,000 cycles and an electrical service life of 100,000 cycles. This means it can withstand frequent opening and closing of the refrigerator door without loss of performance, significantly extending the switch's lifespan. Furthermore, this light switch for refrigerator operates within an operating temperature range of -25°C to +60°C, ensuring reliable operation throughout refrigerator use. Its storage humidity range of 10% to 85% accommodates use in a wide range of humid environments, while its storage temperature range of -10°C to +45°C ensures safe storage in a variety of environments.

Designed by a micro switch manufacturer, this refrigerator door light switch ensures high-precision operation and stable operation for the refrigerator door. Its electrical operating frequency reaches 10-30 cycles/minute, enabling rapid response to door opening and closing movements, providing reliable switching control for the lighting system. Furthermore, its mechanical operating frequency is 120 cycles/minute, ensuring long-lasting and efficient operation of the mechanical components, adapting to high-frequency switching demands and ensuring the refrigerator's stability and performance during daily use.

Feature


◆Single-pole structure
◆Small size, compact structure
◆Extremely long travel
◆UL/ENEC certified

Parameter


Rating0.25A 250VAC; 0.5A 24VDC
Operating FrequencyElectrical10~30 cycles/minute
Mechanical120 cycles/minute
Initial contact resistance100mΩ Max
Insulation resistance100mΩ Min
Operating Temperature-25 ℃ ~ +60 ℃
Storage Temperature-10 ℃ ~ +45℃
Storage Humidity10% ~ 85%
LifespanElectrical100,000 cycles
Mechanical200,000 cycles

Drawing

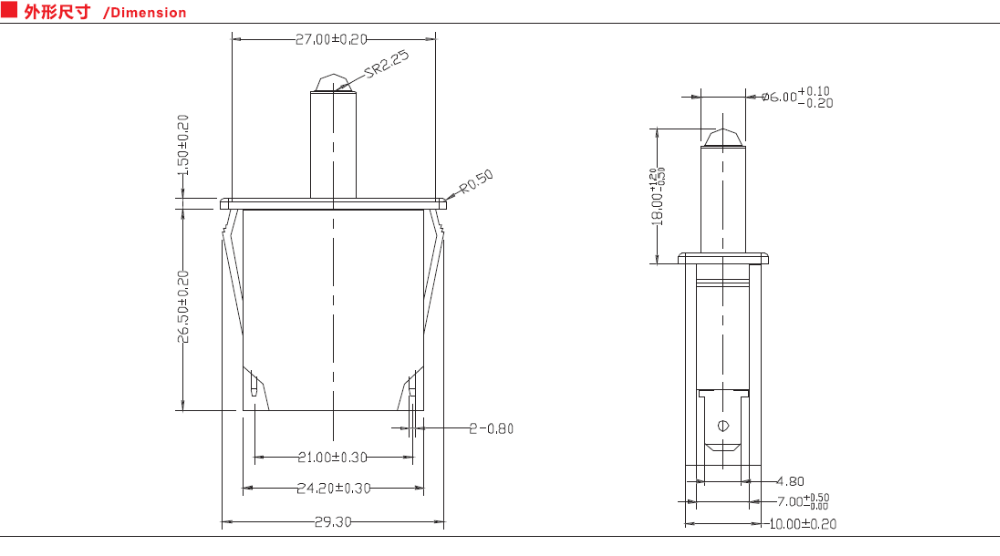

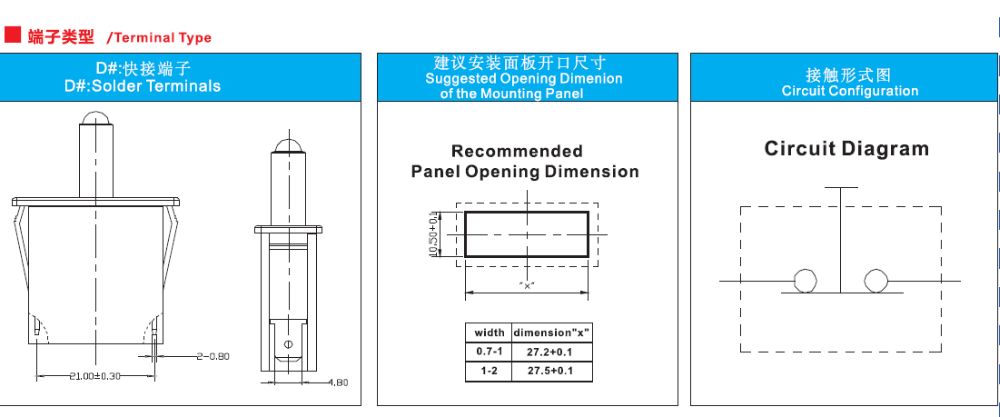

Light Switch for Refrigerator terminal typeLight Switch for Refrigerator dimension

Application


When the door is opened, the switch is triggered, instantly activating the interior light, providing clear, bright illumination and easy viewing of the refrigerator interior. When the door is closed, the switch automatically disconnects the current, turning off the light, saving energy and extending the life of the appliance.
This efficient and stable switching function ensures that the refrigerator's internal lighting system always activates when needed, providing users with clear visibility of the refrigerator interior and significantly enhancing refrigerator convenience.
