Unionwell G23D Series Wired Micro Switch for Charging Electronic Lock

Model Number:G23A Series
Rating:12VDC
Dielectric strength:500VAC (50~60Hz)
Operating Temperature:-40°C~+85°C
Protection Level: IEC IP67
Product name: Wired Micro Switch for Charging Electronic Lock
Electrical life:60,000 cycles
Mechanical life:60,000cycles
Temperature Range:-40°C~+85°C
Terminal:Solder terminals or Wire
Lever type:Lever or Pin Plunger
Application:Charging gun
Certification:ENEC,ISO

minimum order :

1 piece

Quantity :

Contact Now

Product Description

The G23D Series Wired Micro Switch for Charging Electronic Lock is a micro switch for charging electrical locks in new energy vehicles. It accurately outputs locking and status detection signals during the insertion and removal of the charging gun, ensuring a safe and reliable charging connection. This micro switch maintains stable performance over a wide temperature range of -40℃ to +85℃, adapting to various automotive operating environments. Its typical actuation time is 200ms with a 2s interval, meeting the vehicle's requirements for signal response rhythm control.

As an automotive charging lock switch, the G23D series can control the charging port locking mechanism, ensuring the charging gun is securely fixed during charging, preventing accidental removal or misoperation. It also works with the vehicle's ECU to complete real-time signal transmission, improving the overall vehicle charging management safety. Its mechanical and electrical lifespan is both 60,000 cycles, meeting the requirements of high-frequency charging scenarios for new energy vehicles and demonstrating excellent durability and structural reliability.

Furthermore, this IP67 car lock switch, designed by a micro switch manufacturer, boasts an IP67 waterproof and dustproof rating, maintaining stable signal output in complex outdoor environments such as rain, snow, humidity, and sand. It is particularly suitable for external charging port structures, significantly enhancing system protection. Its wired design is compact, flexible in installation, and compatible with various charging modules, electronic lock mechanisms, and high-reliability control components. With its stable contact structure and reliable electrical performance, the G23D series becomes an ideal solution for the safety management of new energy vehicle charging.

Feature

◆Highly sealed motor electronic lock, meets IP67 requirements
◆ Reliable locking, both manual and automatic unlocking
◆ Accurate locking and unlocking positioning, clear gear positions
◆ The motor electronic lock has sensitive forward and reverse switching, long life, and stable reliability

Parameter

Rating		12VDC.(Operation duration 200ms, operation pause 2s)
Insulation resistance		100MΩ Min.(at 500VDC)
Dielectric strength		500VAC(50~60Hz, 1min.)
Protection level		IEC IP67(Except driving wheels and housing)
storage temperature		-40℃~+85℃
Operating humidity		45%RH~85%RH
Lifespan	Electrical	60,000 cycles(12VDC/Operation duration 200ms, operation pause 2s)
Lifespan	Mechanical	60,000 cycles
Operating frequency	Electrical	20 cycles/minute
Operating frequency	Mechanical	20 cycles/minute
Operating characteristics (working voltage: 12VDC)	Operating force	700g.cm Min(No mechanical damage)
	Holding force	250g.cm Min(No mechanical damage)
	Motion Travel	30°±2°
	Shaft strength	200N(Vertical axis and no mechanical damage under stress)
	Manual unlocking torque	250g.cm Min.

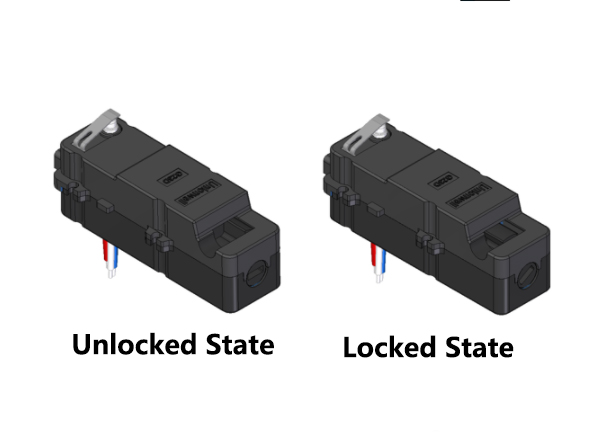

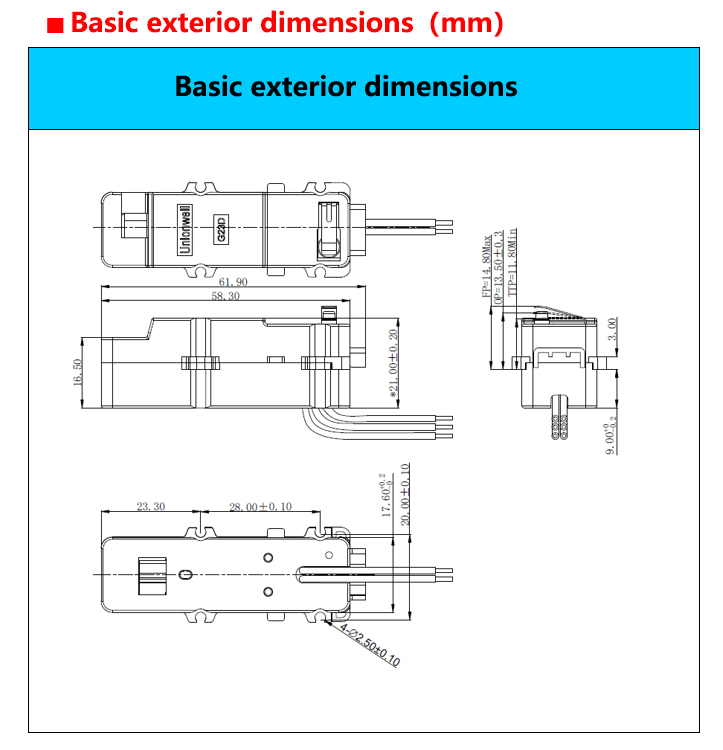

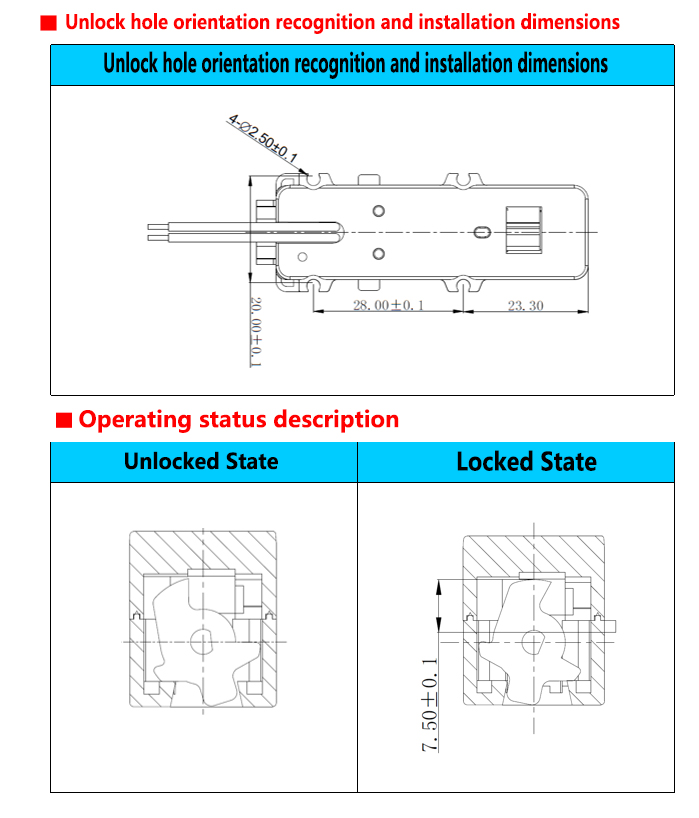

Drawing

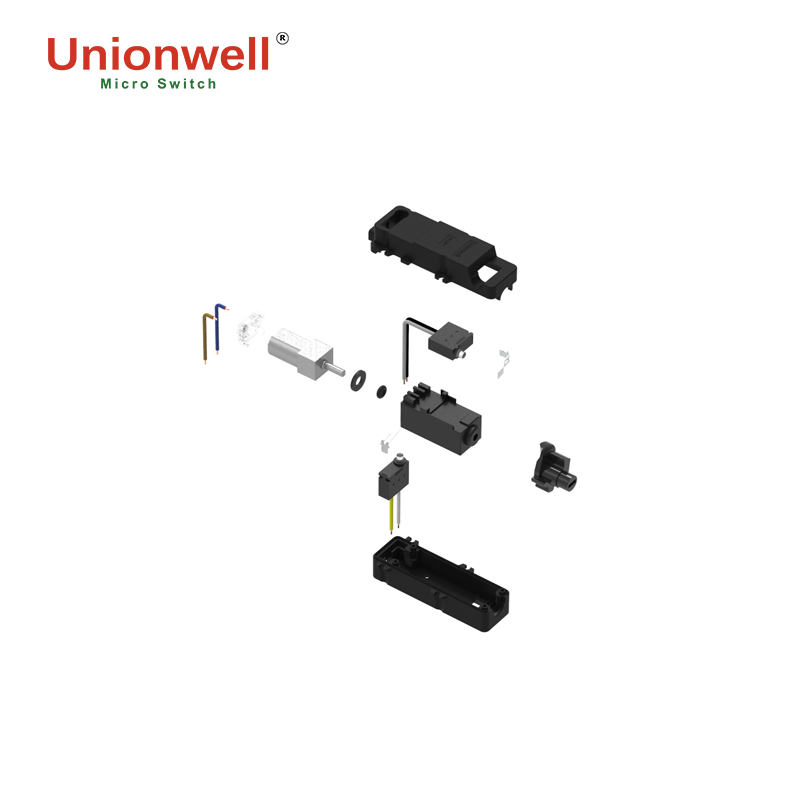

Details view

In this details view, you can see the housing, micro switch, wires and others parts inside the electrical lock switch.

electrical charging automotive lock switch

Application

This highly reliable switch, specifically designed for automotive charging locking systems, provides precise signal feedback during the locking and unlocking of the vehicle's charging port, ensuring a secure connection of the charging gun and preventing accidental disconnection or poor contact, thus effectively guaranteeing the charging safety of new energy vehicles.

The product features a wired structure, supporting stable communication with the vehicle's control unit and maintaining sensitive response in various charging scenarios. It boasts IP67 waterproof and dustproof performance, effectively preventing dust, moisture, and splashed liquids from entering, ensuring stable operation even in outdoor charging stations, rainy or snowy weather, or high-humidity environments.

The G23D series features a compact structure, suitable for applications such as charging interface locking mechanisms, vehicle electronic locks, and electronic control protection modules. Its robust and durable internal contact design ensures stable electrical output, meeting the stringent requirements for lifespan and reliability in automotive environments, providing enhanced safety for new energy vehicle charging.
