Automotive Sealed Electrical Car Charging Gun G23L series

Model Number:G23L Series
Allowable Operating Frequency:12VDC 120cycles/min.
Dielectric strength:500VAC (50~60Hz)
Operating Temperature:-40°C~+85°C
Protection Level: IP67
Product name: Micro Switch for Charging Electronic Lock
Electrical life:60,000 cycles
Mechanical life:60,000cycles
Operating Force: 15gf Min.
Total Travel Position: 5.30mm
Release Force: 40gf Max.
Lever type:Lever or Pin Plunger
Application:Charging gun
Certification:ENEC,ISO

minimum order :

1 piece

Quantity :

Contact Now

Product Description

The G23L series Automotive Sealed Electrical Car Charging Gun is a sealed automotive electrical lock switch specifically designed for locking systems of charging interfaces in new energy vehicles. This series of switches is primarily used in DC charging electronic lock structures, achieving safe and stable locking management through the linkage control of the charging gun status and the charging process. When the charging station is powered on, the switch promptly outputs a signal, pushing the electronic lock into the"locked"state, ensuring that the charging gun will not be accidentally pulled out during high-current DC charging. After charging is complete, the system automatically performs"full charge unlocking"based on the switch feedback signal, improving ease of use and overall safety. With its stable operating characteristics and highly reliable structure, the G23L series has become an irreplaceable key component in on-board charging systems.

As an IP67 car charging gun lock switch, the G23L series adopts a highly sealed structural design, achieving an IP67 waterproof and dustproof rating, maintaining stable operation in harsh environments such as rain, snow, humidity, dust, and outdoor temperature variations. Its rated operating environment conditions include an operating temperature of -40℃ to +85℃ and an operating humidity below 95%RH. The overall structure ensures excellent operational consistency and signal accuracy even in extreme climates. The switch has an operating force ≥ 15gf, is highly sensitive, and suitable for use in charging gun electronic lock structures where space is limited but precise feedback is required.

In terms of durability, this IP67 car lock switch boasts a mechanical and electrical lifespan of 60,000 cycles, suitable for applications with frequent charging gun insertion and removal, ensuring accurate operation even after long-term use and preventing wear from affecting the locking function. Its highly stable signal switching characteristics guarantee reliable output in high-current DC charging environments, effectively preventing electron gun contact point burning, terminal overheating, or structural damage caused by hot-plugging. It is a crucial safety component for extending the overall lifespan of the charging interface.

In summary, the G23L series, meticulously designed by the micro switch manufacturer, features a waterproof structure, long lifespan, and rigorous operational feedback, making it a core safety component in new energy vehicle charging lock systems. This ensures that in modern new energy vehicle charging environments, the G23L series can provide a higher level of protection and reliability for automotive electronic locks.

Feature

◆ High-sealing switch module, strong environmental resistance, meets IP67 requirements
◆ Reliable locking, manual and automatic unlocking available
◆ Accurate locking or unlocking positioning, clear position indication
◆ Motor-driven electronic lock offers sensitive forward and reverse switching, long lifespan, and stable reliability

Parameter

Allowable operating frequency	12VDC 120cycles/min.
Allowable linear operation speed	30-500mm/s
Insulation resistance	≥100MΩ(at DC 500V)
Contact resistance (initial value)	≤500MΩ
Dielectric Strength	AC 500V
Working temperature	-40℃~+85℃
Service Life	60,000 cycles
Waterproof grade	IP67
Use humidity	under 95%RH
Operating Force	15gf Min.
Release Position	7.4±0.30mm
Operation Position	7.10±0.30mm
Free Position	7.9mm Max.
Total Travel Position	5.30mm
Release Force	40gf Max.

Drawing

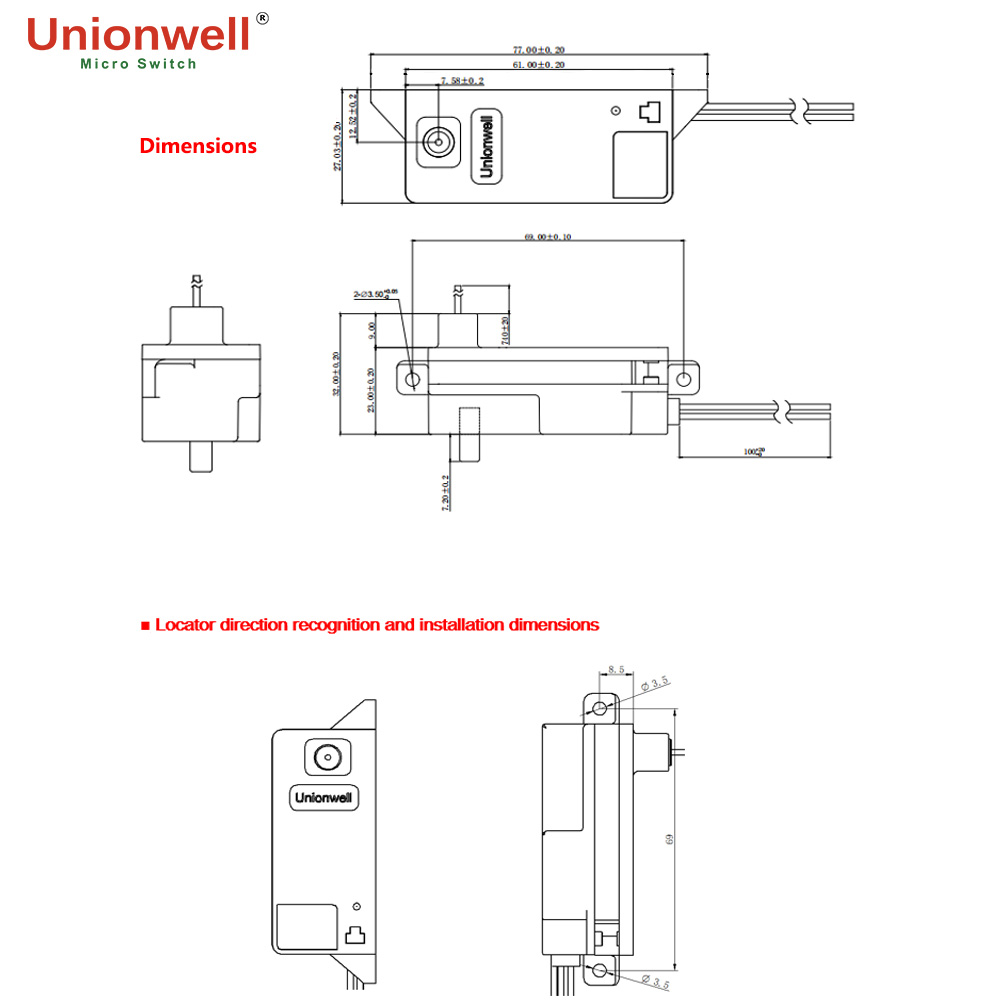

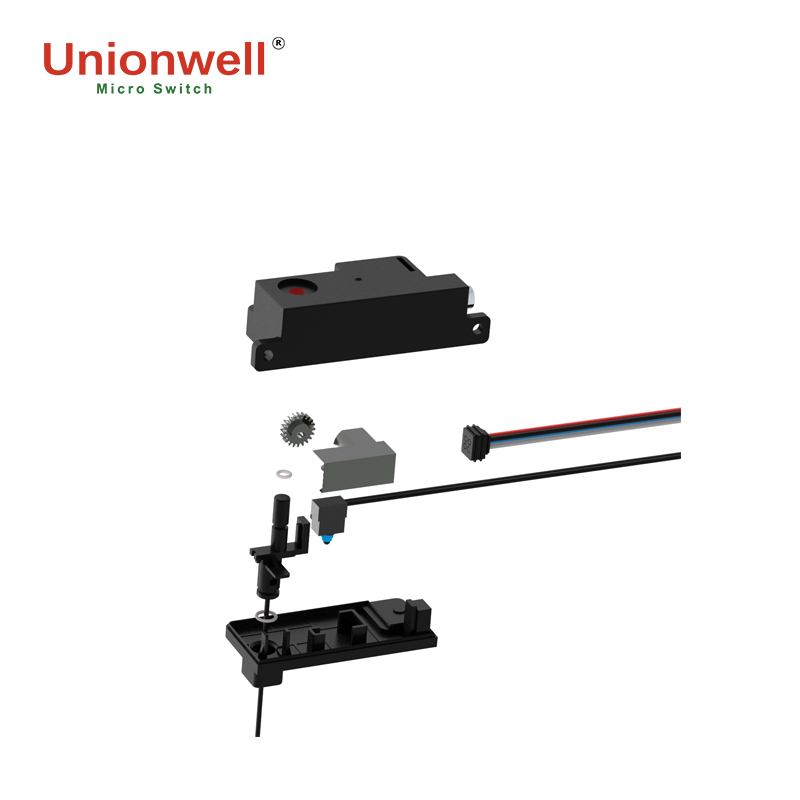

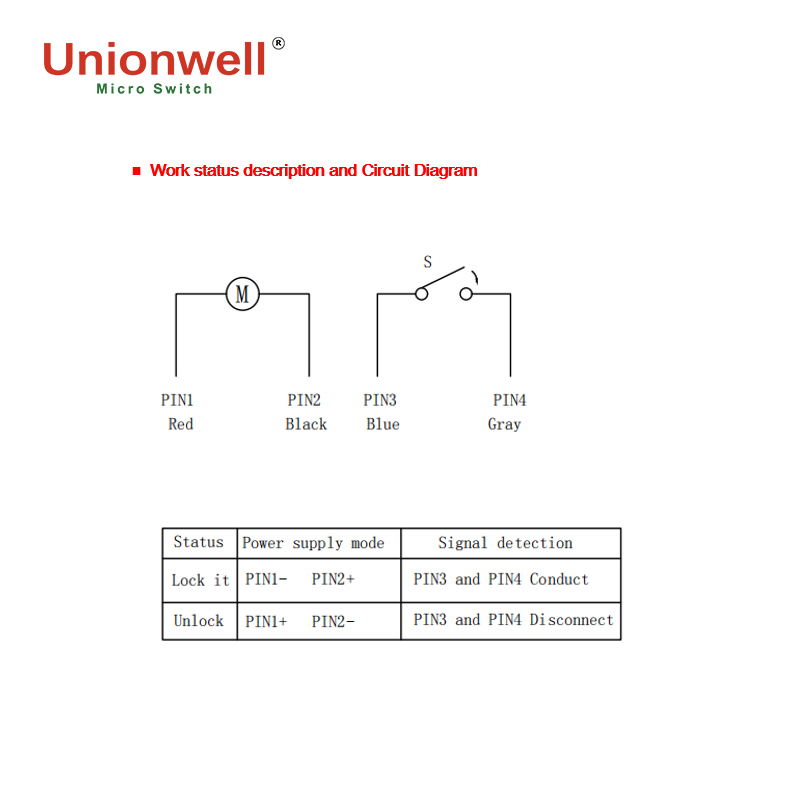

Details View

In this details view, you can see components inside the automotive electronic lock switch, such as housing, waterproof micro switch, gears, etc:

Application

As a waterproof charging gun lock switch specifically developed for electronic lock systems in new energy vehicle charging, it plays a crucial safety protection role in the connection process between the charging station and the vehicle. When the charging station is powered on, the switch triggers the electronic lock to firmly lock the charging gun, ensuring it cannot be removed while energized. After charging is complete or power is cut off, the switch signal controls the electronic lock to automatically release, achieving stable and reliable unlocking with full charge, effectively preventing contact point burning, gun head damage, or safety hazards caused by plugging and unplugging while energized.

The G23L series boasts an IP67 waterproof rating, enabling stable operation in rain, humidity, and harsh outdoor environments, making it ideal for charging station systems exposed to the outdoors for extended periods. Its sealed design ensures accurate operation even under continuous plugging and unplugging, vibration, and temperature changes, guaranteeing real-time feedback on the charging gun's locking and unlocking status.

With its stable structural design and excellent protection capabilities, the G23L series has become a widely adopted key component in various automotive charging port electronic lock systems, providing reliable safety linkage protection for charging equipment.
