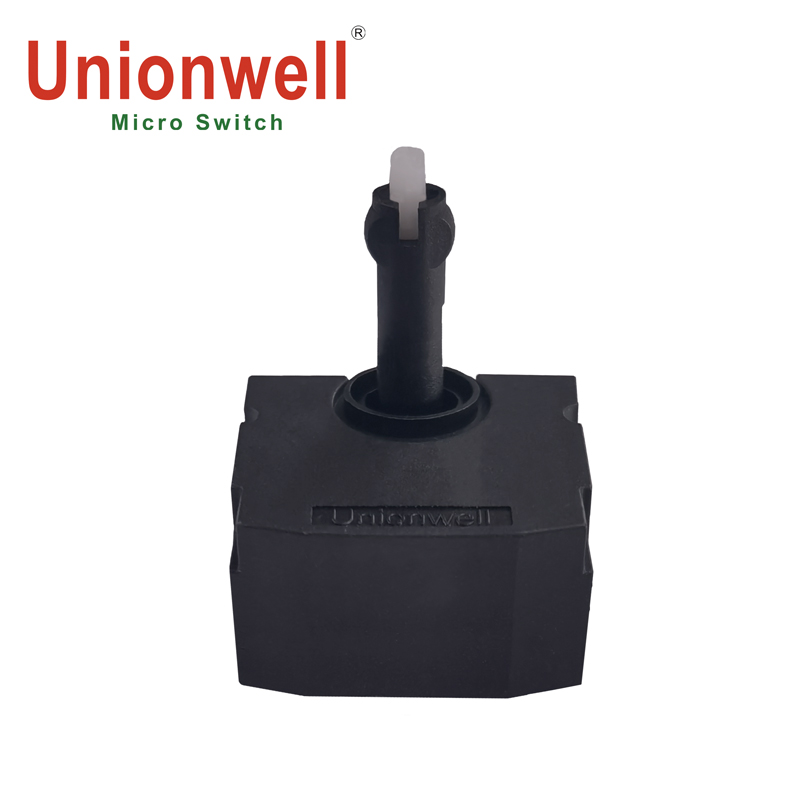

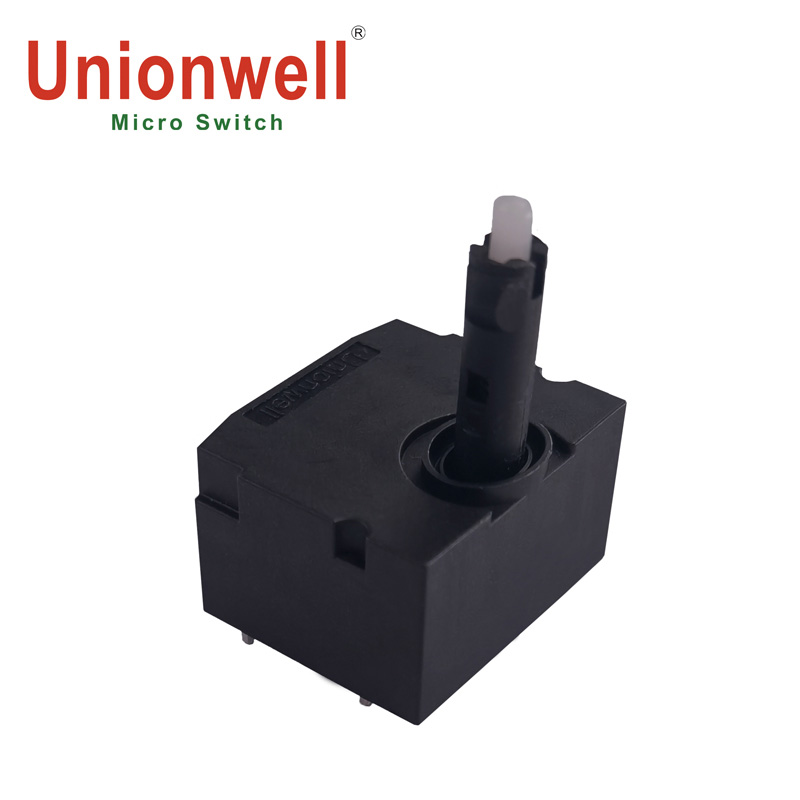

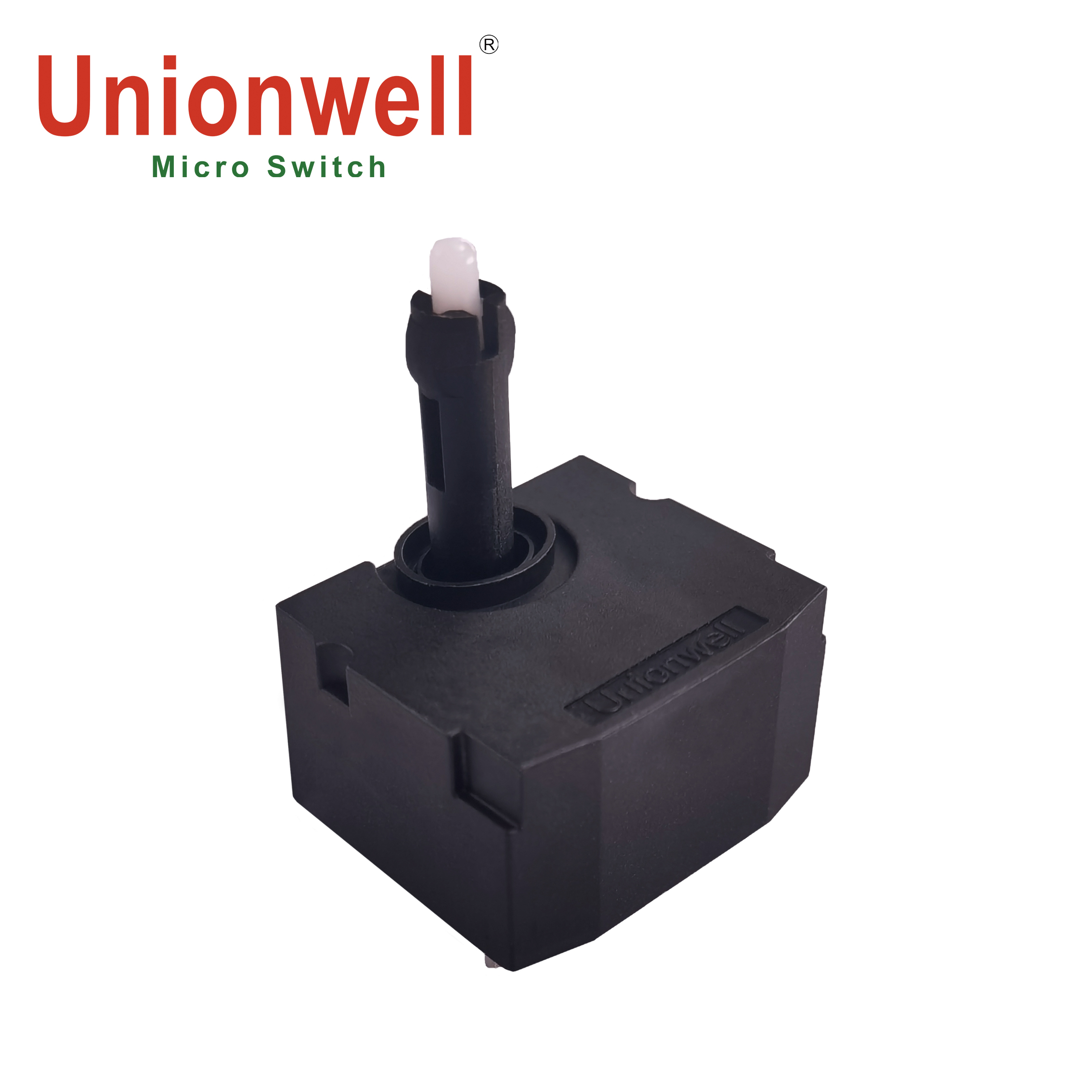

G19 Series High Quality Waterproof Micro Switch Used in Automobiles
Max. Current:16(4)A 1/2HP
Max. Voltage:125/250VAC
Operating Temperature:-25℃~85℃
Protection Level:IP40
IP level:IP40
Company name:Greetech
Lever position:Far from Pin Plunger
Lever type:Simulated roller lever
Terminal Type:Quick connect terminals
Circuit Code:SPDT
Max Operating Force:Max. 50gf at the pin plunger
Electrical life:Over 50,000 cycles
Mechanical Life:Over 1,000,000 cycles
Application:Home Appliance, Electronic Equipment, Apparatus and Instruments
Color:Grey
- The Greetech G19-082LRB1ABU Micro Switch is a high-performance micro switch waterproof designed for use in a variety of applications, including home appliances, electronics, and instrumentation and meters. It has an operating temperature range of -25°C to 85°C and an IP40 protection rating to ensure stable operation in conventional environments.
- With a maximum current of 16(4)A and a voltage range of 125/250VAC, the switch is suitable for a wide range of electrical equipment. The lever type is an analog roller lever, which is positioned away from the needle post, and the maximum operating force is 50gf to ensure sensitive operation.
- This automobile micro switch not only has an electrical life of more than 50,000 cycles, but also a mechanical life of more than 1,000,000 cycles, demonstrating its superior durability and reliability. The terminal type is a quick-connect terminal for easy installation and replacement.
- Greetech's G19-082LRB1ABU micro switch is ideal for a wide range of electronic and electrical equipment with its premium design and performance.
item | value |
Whether the smart | NO |
Place of Origin | China |
Guangdong | |
Brand Name | Unionwell |
Model Number | G5T16-K1P400A240-T430U |
Max. Current | 16(4)A 1/2HP |
Max. Voltage | 125/250VAC |
Operating Temperature | -25℃~85℃ |
Protection Level | IP40 |
IP level | IP40 |
Color | Grey |
Company name | Greetech |
Lever position | Far from Pin Plunger |
Lever type | Simulated roller lever |
Terminal Type | Quick connect terminals |
Circuit Code | SPDT |
Max Operating Force | Max. 50gf at the pin plunger |
Electrical life | Over 50,000 cycles |
Mechanical Life | Over 1,000,000 cycles |
Application | Home Appliance, Electronic Equipment, Apparatus and Instruments |
Color | Grey |
2.Gross Weight: about 10 KG/CTN
FAQS
Who are we?
We are based in Guangdong, China, start from 2007,sell to Domestic Market(60.00%),Southern Europe(14.00%),NorthAmerica(13.00%),Southeast Asia(8.00%),Western Europe(3.00%),Northern Europe(2.00%). There are total about 301-500 people in our office.
How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment.
What can you buy from us?
We have a wide range of products and a large amount of stock in stock, such as Micro Switch; Automotive switches; Waterproof switches; Pressure switches; Mechanical keyboard switches.With independent research and development laboratory, we can provide customized services according to your needs.
Why should you buy from us not from other suppliers?
Factory ISO9001 & IATF16949 qualified Products are produced & tested by automatics;
Own team designed and assembled automatic machines ;
Awarded as National Innovative Technology ;
Company authorized over 100 Patents.
What services can we provide?
Accepted Delivery Terms: FOB,EXW,FCA,Express Delivery;
Accepted Payment Currency: USD, HKD, CNY;
Accepted Payment Type: T/T,Western Union,Cash;
Language Spoken:English,Chinese.
