Unionwell Sealed Snap Action Micro Switches For Electronic Equipment

Model Number:G605-250P93AU
Max. Current:16(4)A 1/2HP
Max. Voltage:125/250VAC
Operating Temperature:-40℃~+85℃
IP level:IP40
Company name:Greetech
Lever position:Far from Pin Plunger
Lever type:Simulated roller lever
Terminal Type:Quick connect terminals
Circuit Code:SPDT
Max Operating Force:Max. 50gf at the pin plunger
Electrical life:Over 50,000 cycles
Mechanical Life:Over 1,000,000 cycles
Application:Home Appliance, Electronic Equipment, Apparatus and Instruments
Color:Grey

minimum order :

1 piece

Quantity :

Contact Now

Product Description

Sealed Snap Action Micro Switches for Electronic Equipment are high-performance micro switches designed specifically for electronic equipment. Their distinguishing feature is their sealed design, ensuring stable operation in challenging environments. These micro switches typically feature an IP40 rating, effectively preventing the ingress of solid particles larger than 1 mm in diameter. This protects the delicate internal contacts from dust and debris, ensuring reliable circuit operation. While not completely waterproof, they are adequate for everyday use in general electronic equipment.

In terms of environmental adaptability, these micro switches support a wide operating temperature range of -40°C to +85°C, maintaining stable performance in both extreme low and high temperatures, making them particularly suitable for industrial equipment or outdoor applications. They offer a lifespan of over 50,000 electrical cycles and over 1,000,000 mechanical cycles, ensuring excellent reliability and durability even under frequent operation, significantly reducing maintenance costs.

In summary, Sealed Snap Action Micro Switches not only meet the requirements for reliable operation of electronic devices in complex environments, but also, with their excellent temperature resistance and long life, become core components in electronic device design to ensure performance and durability.However, these micro switches lack waterproofing. If you're looking for waterproof micro switches, you can explore other Unionwellproducts.

Feature

-Small and compact size
-With global safety certification
-Long life and high reliability
-Terminal load capacity up to 10(2)A1/4HP
-Complete terminal operating handles
-Widely used in automotive control, home appliance control, industrial control and other fields

Parameter

item	value
Whether the smart	NO
Place of Origin	China
	Guangdong
Brand Name	Unionwell
Model Number	G5T16-K1P400A240-T430U
Max. Current	16(4)A 1/2HP
Max. Voltage	125/250VAC
Operating Temperature	-25℃~85℃
IP level	IP40
Color	Grey
Company name	Greetech
Lever position	Far from Pin Plunger
Lever type	Simulated roller lever
Terminal Type	Quick connect terminals
Circuit Code	SPDT
Max Operating Force	Max. 50gf at the pin plunger
Electrical life	Over 50,000 cycles
Mechanical Life	Over 1,000,000 cycles
Application	Home Appliance, Electronic Equipment, Apparatus and Instruments
Color	Grey

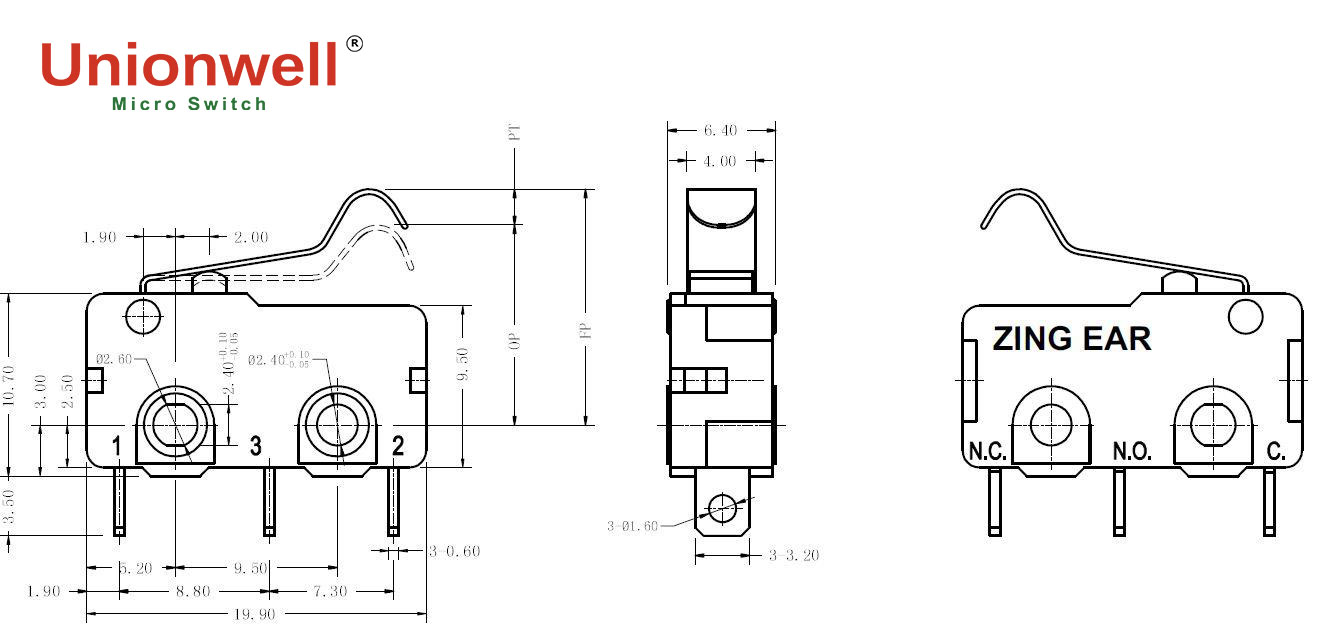

Drawing

Application

Applications in Home Appliances：

Washers and Dryers：Used for door lock detection, start-up control, and water level detection, ensuring the appliance cannot start if the door is not closed, enhancing safety.

Vacuum Cleaners and Kitchen Appliances：Detecting whether the dust box or container is in place prevents the appliance from operating without a container.

Applications in Industrial Equipment：

Mechanical Equipment Limit Detection：Used for detecting the travel of robotic arms, conveyors, or automated equipment to ensure accurate stopping of moving parts.

Safety Interlock Protection：Used for industrial cabinets and equipment protective doors, equipment can only be started when the protective cover is fully closed, ensuring operator safety.

Elevator and Conveyor Systems：Used for detecting the position of doors or slide rails to prevent operational accidents caused by incorrect positioning.
