spdt micro switch
Model No: G605-150L04AU

Unionwell Long Lever Waterproof Micro Limit Switch For Automotive 10A 250VAC

Model Number:G605-150L04AU
Max. Current:12A
Max. Voltage:250VAC
Operating Temperature:-25℃~+125℃
Protection Level:IP00
Rating:0.1A 125/250VAC 5A 125/250VAC
Operation frequency:Electrical: 10-30cycles/min
Contact Resistance:100m Ohm Max
Insulation Resistance:100M Ohm Min
Dielectric strength:AC1,000V RMS (50~60HZ)
Electrical life:10,000~50,000cycles
Mechanical Life:1,000,000cycles
Certification:ROHS
Application:Electronic Device
Product Name:Mini Micro Switch
minimum order :
1 piece
Quantity :
Contact Now

Product Description

As an SPDT micro switch, the G605-150L04AU is not only compact and sophisticated, but also offers excellent performance and durability.
The internal performance is superior, it can withstand a maximum current of 12A, is suitable for high-voltage environments of 250VAC, and can adapt to a wide range of operating temperatures, from minus 25°C to plus 125°C, and can operate smoothly in various environmental conditions.
The G605-150L04AU is also a durable mini micro switch with 10,000 to 50,000 cycles and a mechanical life of up to 1,000,000 operations, providing long-lasting performance support for your equipment.

It complies with ROHS certification standards to ensure its environmental protection and safety performance. Whether it's electronics or other precision applications, this micro switch is the perfect fit. Unionwell is committed to providing customers with high-quality products and solutions to make technological innovation more convenient and reliable!

However, this micro switch is not waterproof. If you are looking for a waterproof micro switch, please look for the G5 series waterproof micro switch.

Feature

-Small and compact size
-With global safety certification
-Long life and high reliability
-Terminal load capacity up to 10(2)A1/4HP◆Complete terminal operating handles
-Widely used in automotive control, home appliance control, industrial control and other fields

Parameter
ratingp10.1A 125/250VAC 48VDC/Gold-plated contacts optional
05
UL:5A 125/250VAC
ENEC:6A 125/250 1E4;3A 125/250VAC 30VDC 5E4 µ25T120
Operating frequencyElectrical10~30cycles/minute
Mechanical120cycles/minute
Initial contact resistance100mΩMax/It depends on the wire length for the type with wire
Insulation resistance (at 500VDC)100M Ω Min
Electrical strengthAC1,000V RMS (50~60Hz)
Storage temperature-25°C~+125°C
Store humidity85%RH Max
Life SpanElectrical10,000~50,000cycles/Depends on the model
Mechanical1000,000cycles

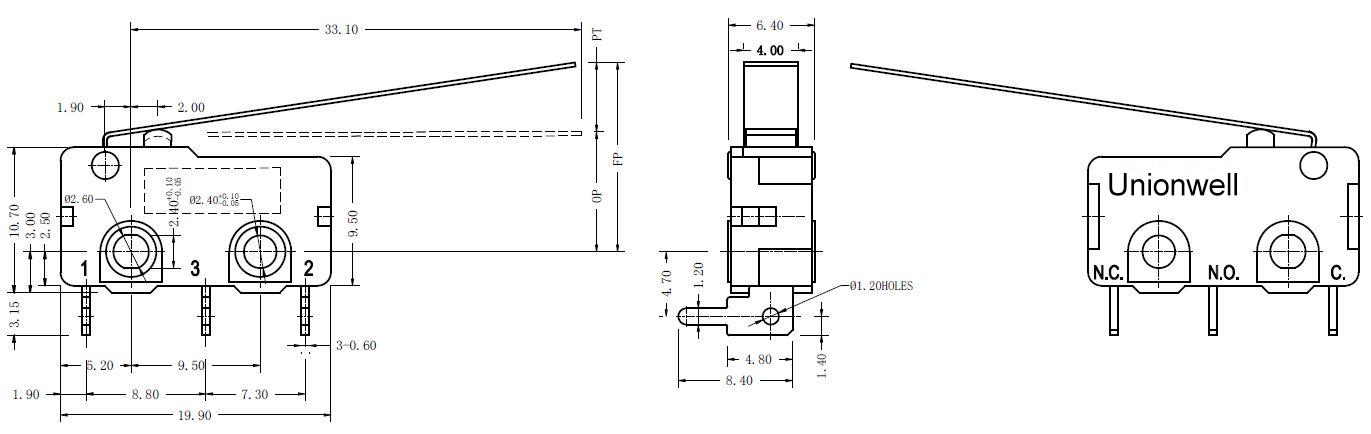

Drawing




Application

Designed specifically for the automotive industry, the Long Lever Waterproof Micro Limit Switch for Automotive features waterproof performance and a long lifespan, making it ideal for use in complex environments. Its long handle enables more sensitive motion detection. In vehicle door lock systems, it can be used to accurately determine the switch status, ensuring doors are fully closed. In power window systems, it provides upper and lower limit detection to prevent excessive lifting. In vehicle seat adjustment, it detects position and ensures safe limits. It also plays a key role in detecting the opening and closing of hoods and trunks. With its excellent waterproofness and reliability, this product is widely used in automotive safety and comfort control systems, making it an ideal choice for automotive manufacturers seeking intelligent and high-reliability solutions.
