Model No: G605-100R92AU

Unionwell Limit micro switch 16A 25T125 3pin micro switch for air conditioning

Model Number:G605-100R92AU
Max. Current:16(4)A 1/2HP
Max. Voltage:125/250VAC
Operating Temperature:-40℃~+85℃
Company name:Greetech
Lever position:Far from Pin Plunger
Lever type:Simulated roller lever
Terminal Type:Quick connect terminals
Circuit Code:SPDT
Max Operating Force:Max. 50gf at the pin plunger
Electrical life:Over 50,000 cycles
Mechanical Life:Over 1,000,000 cycles
Application:Home Appliance, Electronic Equipment, Apparatus and Instruments
Color:Grey
minimum order :
1 piece
Quantity :
Contact Now

Product Description

The  Micro Switch for Air Conditioning is a high-performance switching component used in air conditioning systems, primarily for critical functions such as damper control, compressor start/stop, and safety protection. It maintains sensitive and stable response in complex environments, ensuring safe and efficient air conditioning operation. With an operating temperature range of -40°C to 85°C, it operates reliably in both extreme cold and high temperatures, meeting the needs of diverse regions and seasons.

This micro switch utilizes SPDT (Single Pole Double Throw) circuit code, enabling multi-channel switching and signal control, enhancing system flexibility. Furthermore, with an electrical life exceeding 50,000 cycles and a mechanical life exceeding 1,000,000 cycles, it significantly reduces long-term failure rates and maintenance costs, demonstrating exceptional reliability and durability.

As a limit micro switch manufactured by a micro switch manufacturer, it is widely used not only in home air conditioning systems but also in automotive air conditioning systems, and is considered a key subcategory of  automotive micro switches. With its excellent lifespan and environmental adaptability, this micro switch is a vital component for ensuring the stable operation of air conditioning equipment.

Parameter

rating
p1
0.1A 125/250VAC 48VDC/Gold-plated contacts optional
05
UL:5A 125/250VAC
ENEC:6A 125/250 1E4;3A 125/250VAC 30VDC 5E4 µ25T120
Operating frequency
Electrical
10~30cycles/minute
Mechanical
120cycles/minute
Initial contact resistance
100mΩMax/It depends on the wire length for the type with wire
Insulation resistance (at 500VDC)
100M Ω Min
Electrical strength
AC1,000V RMS (50~60Hz)
Storage temperature
-25°C~+125°C
Store humidity
85%RH Max
Life Span
Electrical
10,000cycles(Depends on the model)
Mechanical
500,000cycles

Drawing

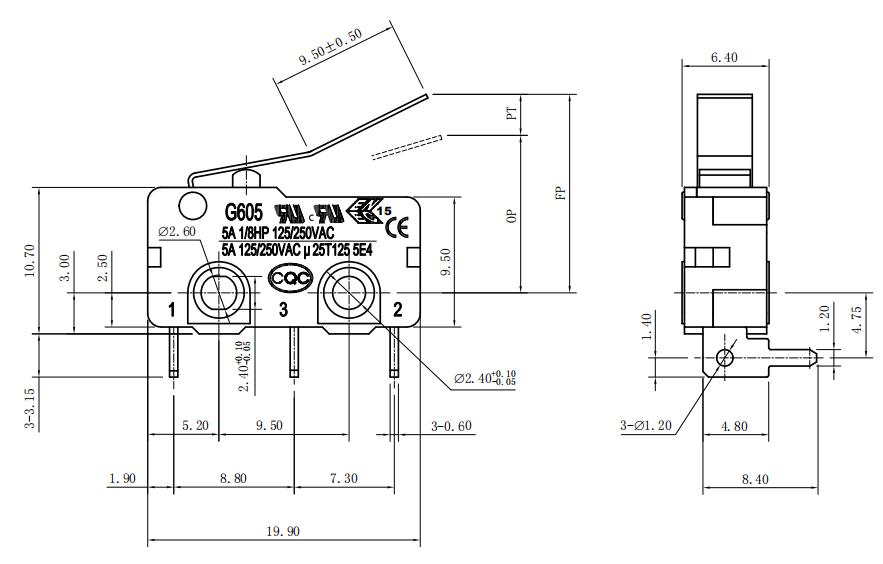

limit micro switch drawing



Application

Micro Switch for Air Conditioning is mainly used for various control and protection functions in air conditioning systems.

In home air conditioners, micro switches are primarily used for damper position detection, ensuring precise switching of airflow direction; compressor start/stop control to prevent overload or abnormal operation; and condensate drainage and water-fill protection to prevent leakage and equipment damage.

In automotive air conditioners, micro switches are used for damper system status detection and temperature control, ensuring sensitive and reliable temperature regulation. They also enable start/stop control of the compressor and circulation system, improving energy efficiency and safety.

Their high sensitivity and long life make these micro switches an indispensable core component in both home and automotive air conditioning systems.
