Model No: G9A series

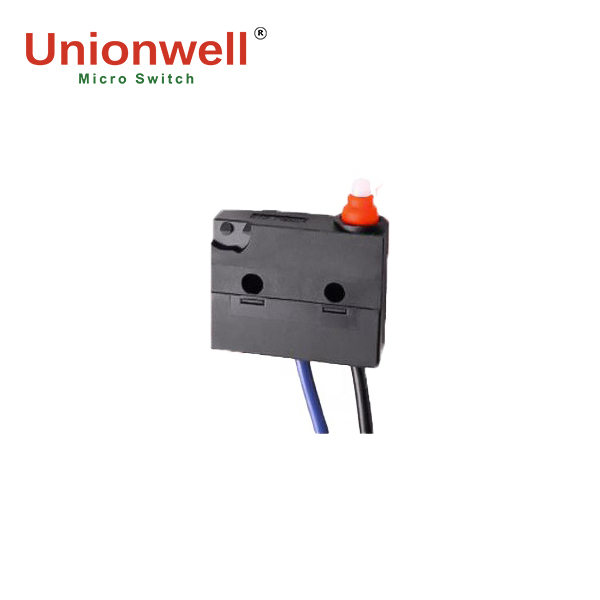

Unionwell G9A Series Sealed Mini Micro Switch For Lead Wires Charging Gun

Model Number:G9A series
Max. Current:5A
Max. Voltage:250v
Protection Level:IP67
Rating:0.1A/5A 125/250VAC 48VDC/Gold Plated Contact Optiona
Operating Frequency Electrical:10-30cycles/minute
Operating Frequency Mechanical:120cycles/minute
Contact Resistance(Initiative):≤200mΩ with wire type
Insulation Resistance (at 500VDC):≥100mΩ
Voltage Resistance:AC 500V(50-60HZ) 1 Minute
Storage Temperature:-40°C~+85°C
Storage Humidity:95%RH Max
Electrical life:50,000cycles
Mechanical Life:200,000Cycles(IP67) 2,000,000Cycles(IP40)
minimum order :
1 piece
Quantity :
Contact Now
  • Whether the smart:NO
  • Place of Origin:Guangdong, China
  • Brand Name:Unionwell

Product Description

The G9A Series snap action sealed micro switch is engineered to deliver exceptional reliability and performance in demanding environments. This high-quality switch combines advanced features with robust construction, making it ideal for a wide range of applications.

UninonwellG9A Seres is a miniature snap action micro switch rated with a compact form factor and sealed to an IP67 protection level,  ensures optimal performance even in the presence of dust, moisture, or splashes.

With electrical ratings from 0.1A to 5A at 125/250VAC or 48VDC and optional gold-plated contacts for enhanced conductivity, this miniature micro switch provides stable, safe operation in a wide range of industrial and consumer applications. With an electrical life of up to 50,000 cycles and a mechanical life of up to 200,000 cycles (IP67 rating) or 2 million cycles (IP40 version), they are suitable for high-frequency use.


Product Picture

Application
The G9A Series snap action sealed micro switch is perfect for use in automotive systems, industrial machinery, consumer electronics, and any application requiring reliable switching performance in challenging environments. Its sealed design ensures dependable operation in conditions where exposure to moisture or dust is a concern.
