miniature limit switch


All Products
Subscribe to our Newsletter
micro snap switch
micro snap switch
micro snap switch
Model No: G605-050E00B-T165U

Unionwell G6 Snap Action Micro Switch With 2pin

Model Number:G605-050E00B-T165U
Max. Current:16(4)A 1/2HP
Max. Voltage:125/250VAC
Operating Temperature:-25℃~+125℃
Company name:Greetech
Lever position:Far from Pin Plunger
Lever type:Simulated roller lever
Terminal Type:Quick connect terminals
Circuit Code:SPST
Max Operating Force:Max. 50gf at the pin plunger
Electrical life:Over 50,000 cycles
Mechanical Life:Over 1,000,000 cycles
Application:Home Appliance, Electronic Equipment, Apparatus and Instruments
minimum order :
1 piece
Quantity :
Contact Now

Product Description

The G6 Snap Action Micro Switch with 2 pins is a high-performance, highly reliable switch component widely used in home appliances, mechanical control, and automation equipment.
As a micro snap switch, it utilizes a precise toggle trigger mechanism, enabling fast and stable circuit switching, ensuring reliable response for control, limit, or protection functions.
Thissnap-action micro switch, offers sensitive feedback and stable electrical performance. Its operating temperature range is -25°C to 125°C, ensuring stable operation in harsh environments. Its electrical life exceeds 50,000 cycles and its mechanical life exceeds 1,000,000 cycles, making it suitable for frequent operation and ensuring long-term reliable use.
The compact design of the micro switch with 2 pins facilitates quick installation and wiring connection, while maintaining a robust structure and strong wear resistance.
TheUnionwell G6 series micro switches excel in home appliance push buttons, limit detection, and mechanical travel control, making them an ideal choice for home appliances requiring high precision and reliability.

Feature

◆Small and compact size
◆With global safety certification
◆Long life and high reliability
◆Terminal load capacity up to 10(2)A1/4HP
◆Complete terminal operating handles
◆Widely used in automotive control, home appliance control, industrial control and other fields

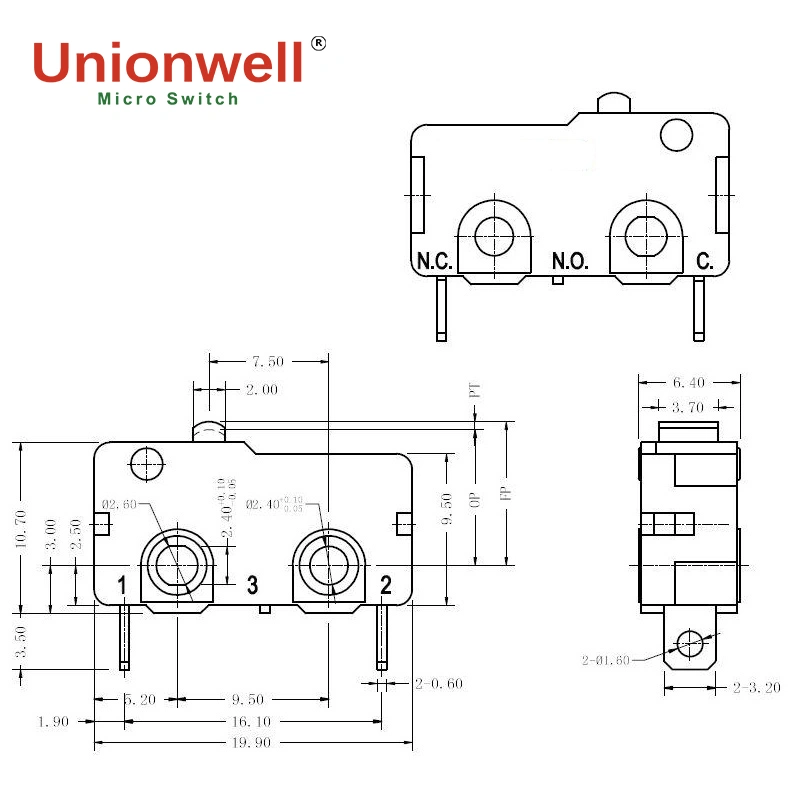

Drawing

micro snap switch drawing


Parameter

item
value
Whether the smart
NO
Place of Origin
China，Guangdong
Brand Name
Unionwell
Model Number
  G605-050E00B-T165U
Max. Current
5(3)A 1/8HP
Max. Voltage
125/250VAC
Operating Temperature
-25℃~125℃
Company name
Unionwell
Lever position
Far from Pin Plunger
Lever type
Simulated roller lever
Terminal Type
Quick connect terminals
Circuit Code
SPST
Max Operating Force
Max. 50gf at the pin plunger
Electrical life
Over 50,000 cycles
Mechanical Life
Over 1,000,000 cycles
Application
Home Appliance, Electronic Equipment, Apparatus and Instruments

Application

The Unionwell G6 Snap Action Micro Switch with 2pin is widely used in household appliances and automation systems.
As a micro snap switch, it switches circuits quickly and reliably, ensuring precise response for push-button control, travel limits, or safety protection.
This snap-action micro switch type, offers sensitive action and stable feedback, allowing for high-frequency operation without wear. Its compact design makes it easy to install and connect circuits.
It is commonly used in washing machine door control detection, microwave oven safety switches, air conditioner button controls, and automated machinery travel detection, providing long-term, reliable electrical control for these devices.
