Model No: G605-150SA9CS-18-T090U

Unionwell G6 Series Micro Switch for Household Application 5A 1/8hp

Model Number:G605-150SA9CS-18-T090U
Max. Current:5A
Max. Voltage:125/250VAC,48VDC
Operating Temperature:-25℃~+125℃
Protection Level:IP40
Product name:5a 1/8hp 36v 10t125 no lever push button micro switch
Electrical life:50,000cycles
Mechanical life:1,000,000cycles
Operating force:150gf max w.o lever
Terminal:Solder terminals
Lever type:Simulated roller lever
Application:Auto Electronics,Air conditioner,communication,tooth brush,toys etc
Color:Grey
Brand:Unionwell
Certification:ENEC,CQC
minimum order :
1 piece
Quantity :
Contact Now
​​​​
Product Description

The G6 miniature micro switchis a precisional and reliable micro switch for household application devices and tooth brush.  With a compact design and robust performance, this micro switch for tooth brush, toys, and small appliances ensures seamless operation under frequent use.

this miniature micro switch combines high sensitivity, only need 150gf operating force, with a wide temperature range -25℃~125℃, making it perfect for industrial, automotive, and household appliances requiring precision and longevity.

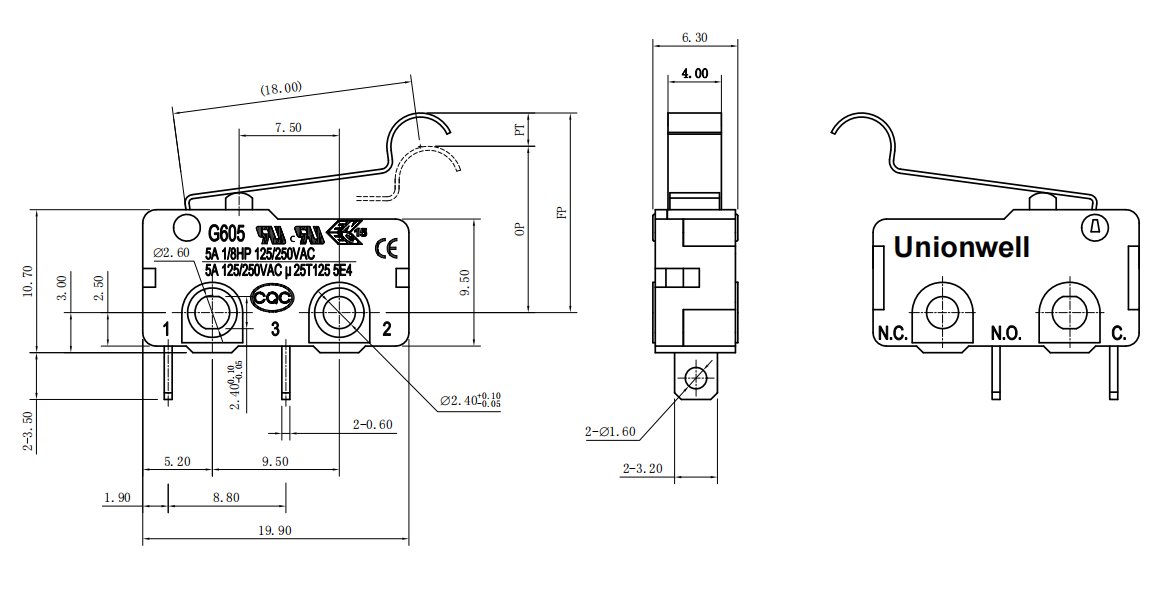

Product drawing

Unionwell miniature micro switch for household application

Parameter

item
value
Certification
ENEC,CQC
Whether the smart
NO
Place of Origin
China
Guangdong
Brand Name
Unionwell
Model Number
G6
Max. Current
5A
Max. Voltage
125/250VAC,48VDC
Operating Temperature
-25℃~+125℃
Protection Level
IP40
Product name
5a 1/8hp 36v 10t125 no lever push button micro switch
Electrical life
50,000cycles (Depend on Part No.)
Mechanical life
1,000,000cycles
Operating force
150gf max w.o lever
Terminal
Solder terminals
Function
SPST-NO
Lever type
Simulated roller leverr
Application
Auto Electronics,Air conditioner,communication,tooth brush,toys etc
Color
Grey


Application

The micro switch ensures reliable on/off switching in compact, high-moisture tooth bursh environments. Also this miniature micro switch used in air conditioners, coffee makers, and toys for precise control.
