Unionwell G2 Series Sealed Rotary Switch

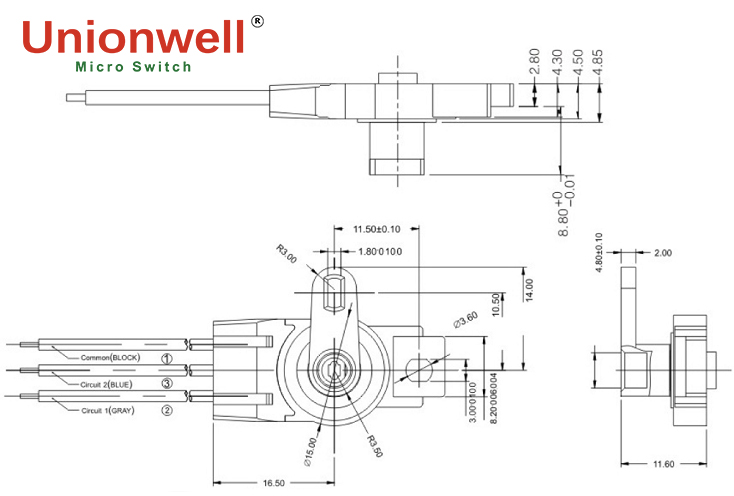

Model Number:G201-E01A1-GF600-T010U
Terminal Type: Wires Leads To Bottom(500mm)
Operating Temperature: -30℃~+85℃
IP Rating: IP64
Operating Environment Humidity：85%RH MAX.
Electrical Operating Frequency: 10~30 cycles/min.
Mechanical Operating Frequency: 120 cycles/min.
Its IP64 waterproof and dustproof rating effectively prevents water and dust intrusion, making it particularly suitable for use in the complex environment of a vehicle, providing durable and stable operation. The sealed rotary switch is designed with robust durability and high stability, making it especially suitable for the long-term use and high-load automotive environment. Its operating temperature range is -30°C to +85°C, enabling stable operation in environments with significant temperature variations, meeting the stringent requirements of the automotive industry for electronic control components.
Furthermore, this rotary switch boasts a mechanical life of 100,000 switching cycles and an electrical life of 100,000 cycles, ensuring excellent performance and durability over extended use. This Rotary Switch, designed by the micro switch manufacturer, not only offers high precision and reliability in automotive control systems but also provides safe and long-lasting service in harsh environments, making it an indispensable component of vehicle electronics.
◆ Small size and compact structure
◆ Long life and high reliability
◆ widely used in automotive control, home appliance control, and industrial control
| Rating | 0.1A 12VDC | |
| Operating Frequency | Electrical | 10~30 cycles/min |
| Mechanical | 120 cycles/min | |
| Contact Reslstance (Initial Value) | 100mΩ Max. | |
| Insulation Rasistance (at 500VDC) | 100MΩ Min. | |
| Vibration Durability | 10~55Hz, move 0.75mm (p-p) | |
| Dielectric Strength | 500VAC (50~60Hz) | |
| Operating Temperature | -30℃~+85℃ | |
| Operating Humidity | 85% RH Max. | |
| Service Life | Electrical | 100,000 cycles |
| Mechanical | 100,000 cycles | |
This rotary switch has an IP64 waterproof and dustproof rating, effectively resisting dust and water splashes from daily use, ensuring stable operation over extended periods. It is particularly suitable for automotive electronic control systems that require high durability and reliability. Whether in harsh climatic conditions or in environments with frequent use, the G2 series rotary switches demonstrate superior performance and reliability.
