Model No: G605-250R26C5-T125U
G605 Straight Lever Micro Limit Switch 125/250VAC
Model Number:G605-250R26C5-T125U
Max. Current:0.1A~5A
Max. Voltage:125/250VAC,48VDC
Operating Temperature:-25℃~+125℃
Product name:5a 1/8hp 36v 10t125 micro switch
Electrical life:10,000 ~ 50,000cycles (Depend on Part No.)
Mechanical life:1,000,000cycles
Operating force:250gf max w.o lever
Terminal:Bent solder terminals
Function:SPDT
Lever type:Straight Lever
Application:Auto Electronics,Air conditioner,communication,tooth brush,toys etc
Color:Black
Contact Resistance:100mΩ Max
Max. Current:0.1A~5A
Max. Voltage:125/250VAC,48VDC
Operating Temperature:-25℃~+125℃
Product name:5a 1/8hp 36v 10t125 micro switch
Electrical life:10,000 ~ 50,000cycles (Depend on Part No.)
Mechanical life:1,000,000cycles
Operating force:250gf max w.o lever
Terminal:Bent solder terminals
Function:SPDT
Lever type:Straight Lever
Application:Auto Electronics,Air conditioner,communication,tooth brush,toys etc
Color:Black
Contact Resistance:100mΩ Max
minimum order :
1 piece
Quantity :
Product Description
The G605 Straight Lever Miniature Micro Switch 125/250VAC is a high-precision, fast-response miniature micro switch. Featuring a straight lever design, it offers precise actuation, a compact size, and a compact structure. Designed to balance sensitivity and durability, this switch enables reliable circuit control and status detection in confined spaces, making it ideal for automation control applications such as modern automotive electronics and intelligent air conditioning systems. Its excellent mechanical response enables extremely fast electrical actuation, meeting the requirements for stable and efficient feedback.
This product offers excellent performance with a wide operating temperature range of -25°C to +125°C, adapting to the extreme temperatures found in automotive and home appliance environments. Its long-term design ensures uncompromised operation accuracy with an electrical life of over 50,000 cycles and a mechanical life of 1,000,000 cycles. Rated at Rating: 5A 125/250VAC, it can stably handle household and automotive voltage loads, demonstrating the high reliability and precise control capabilities of this micro switch in automotive and appliance applications.
As an automotive micro switch, the G605 micro switch is commonly used in control modules such as door lock detection, throttle feedback, power seat position control, and wiper systems. When the mechanical structure reaches the preset position, the snap-action spring mechanism within the switch instantly triggers, switching the circuit on and off. Its high sensitivity and stable actuation force effectively improve vehicle control safety and responsiveness, ensuring precise response and system reliability during driving. Furthermore, the product's compact design easily fits into confined installation spaces, meeting the lightweight and highly integrated design requirements of automotive manufacturing.
As an air conditioner micro switch, this switch is primarily used to detect damper position, compressor start signals, and temperature control circuits. Its precise contact response ensures smooth and efficient operation of air circulation and cooling systems, avoiding energy loss and performance fluctuations caused by delayed or false triggering. As an air conditioner micro switch carefully manufactured by a micro switch manufacturer, it can still maintain reliable operation in complex temperature and humidity environments, providing long-term and stable operation guarantee for the air conditioner.

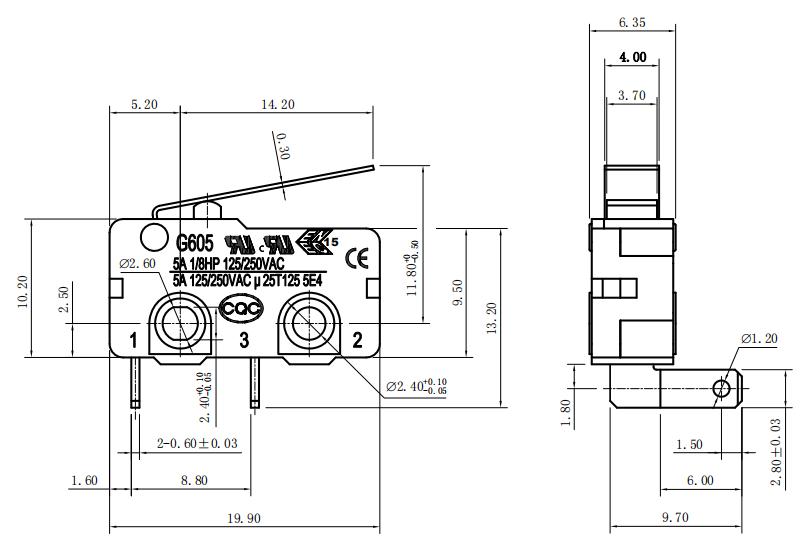

Drawing
Parameter
| Rating | P1 | ENEC/CQC: 0.1A 125/250VAC 0.1A 48VDC μ 25T125 5E4 UL: 0.1A 125/250VAC 0.1A 48VDC Contacts optional gold plating |
| 05 | ENEC/CQC: 5(3)A 125/250VAC 5A 125/250VAC 5A 30VDC μ 25T125 5E4 UL: 5A 125/250VAC 1/8HP 125/250VAC 5A 30VDC | |
| 051/052 | ENEC/CQC: 5A 125/250VAC μ 25T125 5E4 UL: 5A 125/250VAC 1/8HP 125/250VAC | |
| 10/101 | ENEC/CQC: 10(2)A 125/250VAC μ 25T125 1E4 UL: 10.1A 125/250VAC 1/4HP 125/250VAC 10A 30VDC Note: Only applicable for operating forces above 250gf | |
| 12 | ENEC/CQC: 12(6)A 125/250VAC μ 40T125 1E4 UL: 12A 125/250VAC Note: Only applicable for operating forces 350gf | |
| Operating frequency | electrical | 10~30 cycles/min |
| mechanical | 120 cycles/min | |
| Initial contact resistance | 100mΩ Max. | |
| Insulation resistance | 100MΩ Min.(at 500VDC) | |
| Dielectric strength | between terminal | 1,000VAC 50~60Hz for 1 Min. |
| Between terminal and housing | 1,500VAC 50~60Hz for 1 Min. | |
| Operating environment temperature | -25℃~+125℃ | |
| Operating environment humidity | 85%RH Max | |
| Lifespan | electrical | 10,000~50,000(Depend on part NO.) |
| mechanical | 1,000,000 cycles | |
Application
This highly sensitive and reliable miniature micro switch is designed specifically for automotive electronics and air conditioning control systems. Featuring a straight-handle lever structure, this switch offers precise and responsive operation, enabling circuit switching with minimal movement and ensuring stable signal feedback even in complex environments.
This series of micro switches boasts a compact design and size, making them easy to install in space-constrained control modules. Its wide operating temperature range (-25°C to +125°C) ensures stable operation in both high and low-temperature environments. Its electrical life of over 50,000 cycles and mechanical life of 1,000,000 cycles ensure stable triggering even after long-term use. Its excellent insulation resistance of 100MΩ min makes it an ideal high-precision detection and control component for automotive and air conditioning systems.
In automotive electronic systems, this microswitch is commonly used in door lock detection, seat adjustment, power window control, and throttle or brake sensing modules. When a mechanical component moves to a specific position, the lever contact triggers the switch, instantly opening and closing the circuit, thereby improving vehicle safety control and responsiveness. In air conditioning systems, this switch is used to detect damper, compressor start/stop, and temperature control signals. Through minute motions, it precisely monitors and controls internal operating conditions, ensuring more efficient, energy-efficient, and stable cooling system operation.
