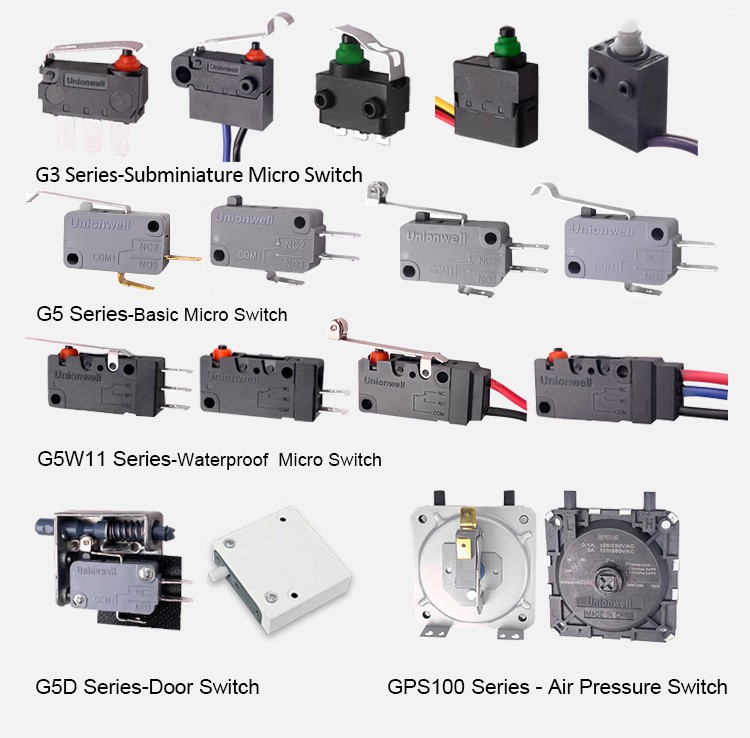

G5W11 Series Waterproof Micro Switch for auto electronics
Max. Current:0.1A
Max. Voltage:125/250VAC,48VDC
Operating Temperature:-40℃~+85℃
Protection Level:IP67
Product Name:40t85 5e4 switch waterproof micro switch 3 position micro switch
Rating W1 ENEC:0.1A 48VDC,0.1A 125/250VAC,40T85,5E4,μ
Rating W1:0.1A 48VDC,0.1A 125/250VAC,T85
Rating W2 ENEC:5A 125/250VAC,5A,30VDC,40T85,5E4,μ
Rating W3 ENEC:10(2)A 125/250VAC,0.5A 125VDC,0.25A 250VDC 40T85 μ 2E4
Rating W3:10.1A 1/10HP 125/250VAC, 0.5A 125VDC, 0.25A 250VDC T85
Electrical life:20,000~100,000cycles
Mechanical life:1,000,000cycles
Certification:ENEC,CQC,REACH,ROHS
- Whether the smart:NO
- Place of Origin:Guangdong, China
- Brand Name:Unionwell
Feature
-Tight configuration , Small Contact Gap, Snap Action,High Sensitivity and Small Operating Travel
-Long Life , High Reliability
- Global Safety Approvals
- Variety of Terminals
- Wide Range Operating Force (7gf-600gf)
- Wide Range Temperature Grade( -40℃~150℃ ), 200℃ Optional
- With Optional PTI Grade (175v,250v,600v)
- Variety of Levers
- Widley Used in Home Appliances, Electronic Equipments
- Auto Electronics, Apparatus and Instrument ,Power Tool ect

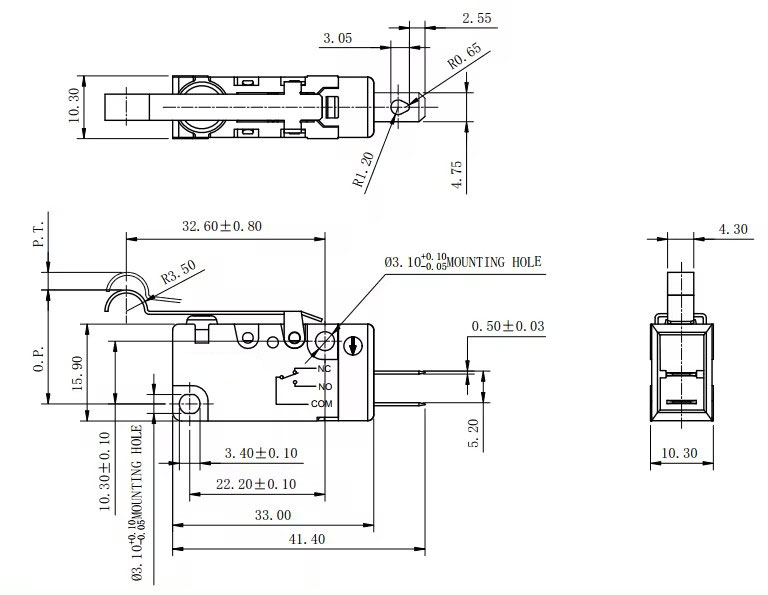

Drawing
Parameteres
| Rating | w1 | ENEC 0.1A 48VDC,0.1A 125/250VAC,40T85,5E4,μ 0.1A 48VDC,0.1A 125/250VAC,T85 |
| W2 | ENEC 5A 125/250VAC,5A,30VDC,40T85,5E4,μ 5A 125/250VAC,5A 30VDC T85 | |
| W3 | ENEC 10(2)A 125/250VAC,0.5A 125VDC,0.25A 250VDC 40T85 μ2E4 10.1A 1/10HP 125/250VAC, 0.5A 125VDC, 0.25A 250VDC T85 | |
| Operating Frequency | Electrical | 10~30times/min |
| Mechanical | 60times/min | |
| Contect Resistance(Intal Value) | with terminal | 50mΩMax |
| with wire type | 100mΩMax | |
| Insulation Resistance | at500VDC,100MΩ Min | |
| Dielectric Strength | Between terminals | AC 1000V 50-60Hz 1min |
| Between terminals and housing | AC 1500V 50-60Hz 1min | |
| Storage Temperature | -40°C~+85°C | |
| Storage Humidity | 85%RH Max | |
| Protection Grade | with terminal type | IEC IP 67(Exclude terminal) |
| with wire type | IEC IP 67 | |
| Electric-shock safeguard | Class ll | |
| PTI | 250 | |
| Life | E-life | 2E4~10E4 cycle (depends on P/Ns) |
| M-life | over 500,000 cycles or 1,000,000cycles(60cycles/min) | |
| Unit Net Weight | Approx.7g(with terminal type and without lever) | |
| Car | Electric Tooth Brush |
| Air-Conditioner | Toys |
| Communication | Home Appliace , Motor Control |
